The UV400 SuperFlood UV-A Lamp has been discontinued. Its replacement is:
Previously a Spectroline / Spectronics Product

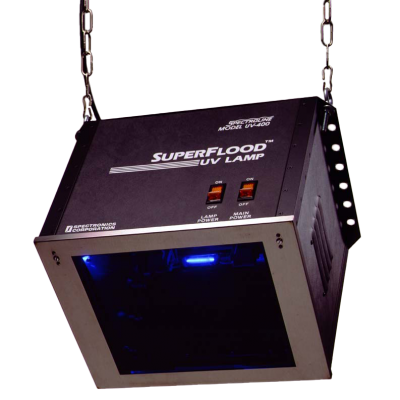

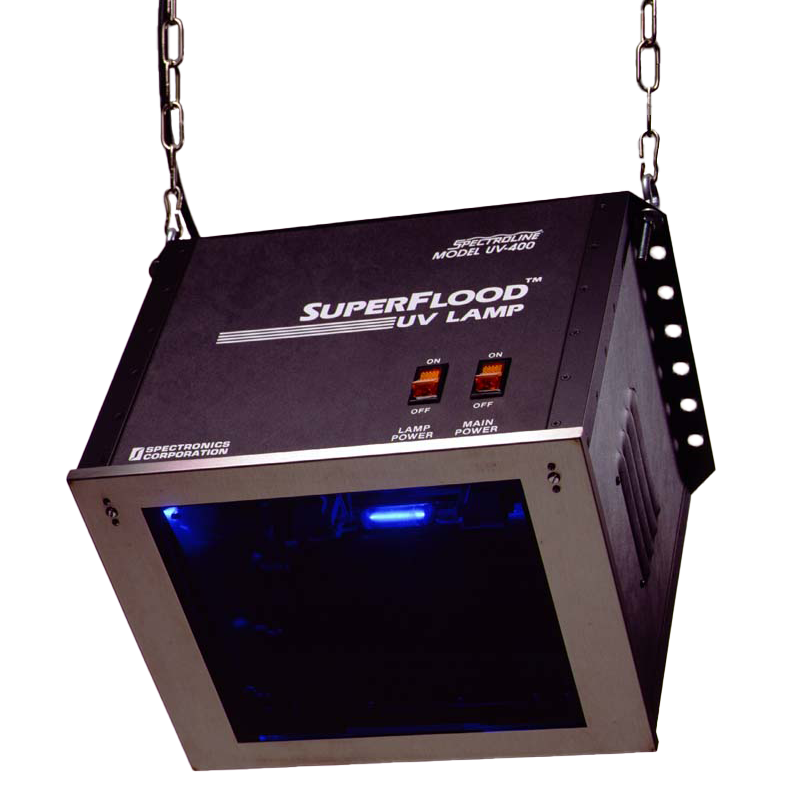

Unmatched PowerThe UV-400 SuperFlood Series UV Lamps are the world's most powerful UV flood lamps available for NDT inspection. These super-powerful and versatile lamps have been specially engineered for fluorescent penetrant, magnetic particle inspection, parts degreasing inspections and wash station inspections.
The UV-400A features a concentrated-beam reflector designed to assure the highest concentrated UV-A intensity available. It has a peak steady-state UV-A intensity of 8,000 μW/cm2 and irradiates an area as large as 16” x 10”.

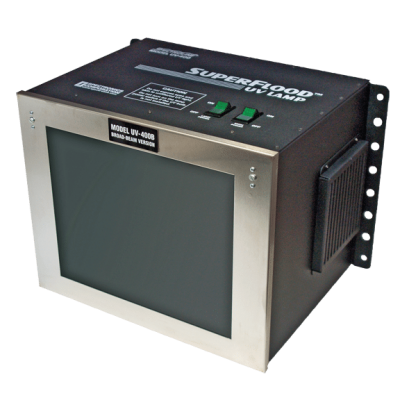

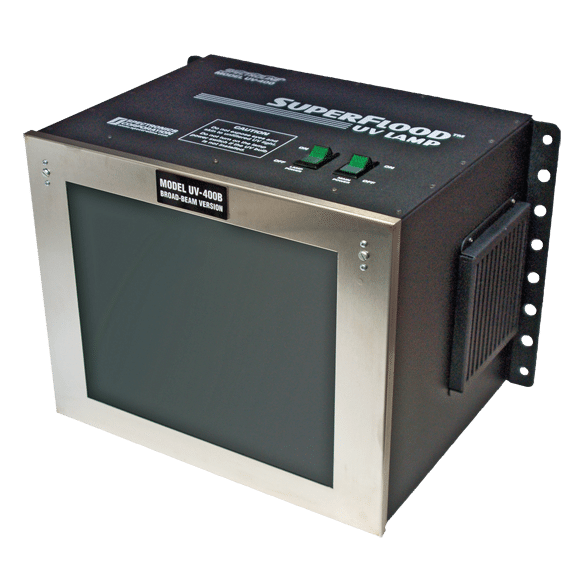

The UV-400B features a unique broad-beam reflector designed to provide NDT inspectors with maximum uniformity of coverage over the largest area. It has a peak steady-state UV-A intensity of 5,000 μW/cm2 and irradiates an area as wide as 27” x 15” with unmatched uniformity.
| Spectro-UV UV-400 SuperFlood Technical Specifications | |
| Steady-State UV-A Intensity at 15" |
UV-400A: 8,000 μW/cm2 UV-400B: 5,000 μW/cm2 |
| Irradiation Area |
UV-400A: 16” x 10” (41 cm x 25 cm), producing a nominal steady-state UV-A irradiance of no less than 2,000 μW/cm2 UV-400B: 27” x 15” (69 cm x 38 cm) with unmatched uniformity, producing a nominal steady-state UV-A irradiance of no less than 2,000 μW/cm2 |
| UV Wavelength | 320-400nm |
| UV Source | 400-Watt Metal Halide Bulb |
| Filter Dimensions | 10 1⁄4 x 11″ (26.0 x 27.9 cm) |
| Housing Dimensions (LxWxH) | 15 x 12 x 12″ (38.1 x 30.5 x 30.5 cm) |
| Net weight | 36 lbs (16.3 kg) |
Note: There is a $35 small order fee for orders valued less than $200
Can combine with other products to reach minimum.
