Solid State Systems Intelligent Illuminations
Rinse Station Lamps on a Penetrant Line

12 NDT
Super Pen-rinse Light
UV365-12		 24 NDT

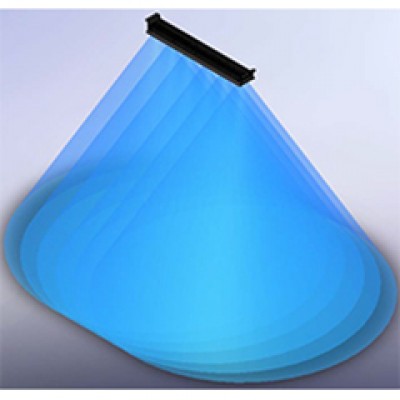

Super Rinse Light
UV365-24		 24 NDT

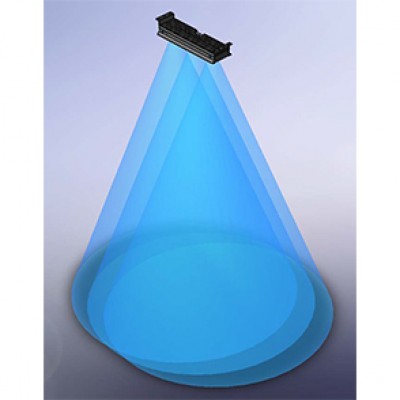

Pen-Rinse Light
UV365-24


Features:

  • LED's produce light between 360 - 370nm
  • Doesn't overlap the UV-B and Visible Light bands
  • Overlapping beams create uniform coverage and eliminate veiling glare
  • Reaches peak output in milliseconds - No warm up delay
  • Temperature stable without cooling fans
  • Mounts with built-in angle brackets or added eye bolts
  • Acrylic splash guard
  • Mercury free
  • Increase detection of yellow-green fluorescent indications


Specifications:


 Super Pen-Rinse
UV365-12		 Super Rinse Light
UV365-24		 Pen-Rinse Light
UV365-24
Max. UV-A Black Light Intensity: 300 µW/cm2 across a 36" x 36" area @ 48" distance 300 µW/cm2 across a 56" x 70" area @ 48" distance 100 µW/cm2 across a 36" x 26" area @ 48" distance
White Light: < 1 ft. candles @ 48" < 1 ft. candles @ 48" < 2 ft. candles @ 48"
Power: 12 watts 24 watts 24 watts
Standards: ASTM E1417, ISO 3059 ASTM E1417, ISO 3059 ASTM E1417
