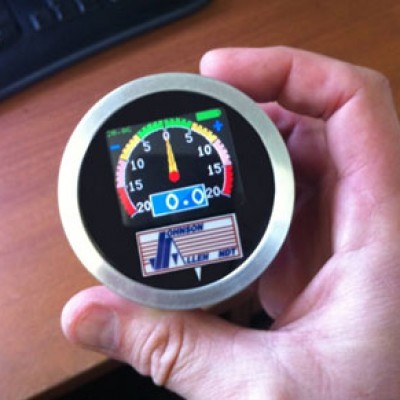

The J&A Digi-Gauss Advanced Magnetometer

The next generation in Magnetic Field measuring instruments

The Digi-Gauss is loaded with features and capabilities inlcuding:

  • "+/-" 20 Gauss or "+/-" 95 Gauss
  • 0.2% or 0.1 Gauss Accuracy
  • Alarm levels set at 2 Gauss & 5 or Owner stipulated value*
  • Analog & Digital Displays
  • MagScope displays waveform for AC / HWDC and FWDC
  • MagTimer Shot Timer
  • Full Color 160 x 128 pixel LED Display
  • Compact 65 mm diameter x 37 mm depth
  • Only 150 grams in weight
  • 4 layer microchip circuit based technology
johnson & allen digi-gauss - quick scanQuick Scan Screen johnson & allen digi-gauss - digital screenDigital Screen

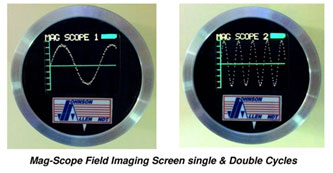

johnson & allen digi gauss - magscope and double cycles johnson & allen digi gauss magshot timer
johnson & allen digi gauss johnson & allen digi gauss battery life
General:
  • White spot on body denotes exact detection position with arrow guide on the face
  • The TG Model (True Gauss) version displays the "true gauss" field which is immediately found in front of the "spot" and will compare to a digital gauss probe ("+/-" 95 gauss range).
  • The ME Model (Magnetometer Emulator) corresponds and compares to Existing Magnetometers as used in NDT (generally less sensitive with less definition of field). The ME Model will measure "+/-" 20 gauss range.

General (Continued):

  • Ideal for confirming demagnetization processes are satisfactory
  • Supplied calibrated (with re-calibration services available)
  • Thermally compensated device using 4 differentially mounted precision Hall Cells.
  • Supplied with "zero chamber" ring. (Removes the effect of the earth's magnetic field which can be up to 0.4 gauss). For ultimate accuracy of low gauss measurments.
  • Battery gauge. Digi-Gauss is supplied with 2 X 1.5V Lithium Batteries (giving approx. 10 hours of continuous use).
