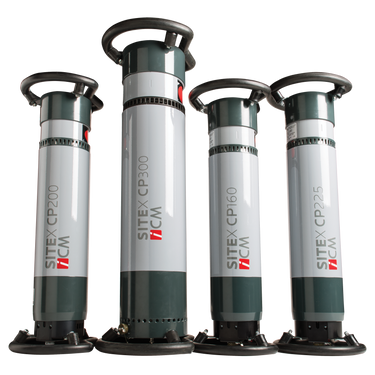

| ICM Sitex CP200D Portable Constant Potential X-Ray Unit | RT-ICM-CP200D |
|
Request Pricing | ||

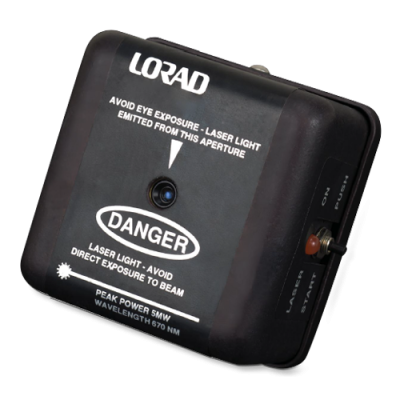

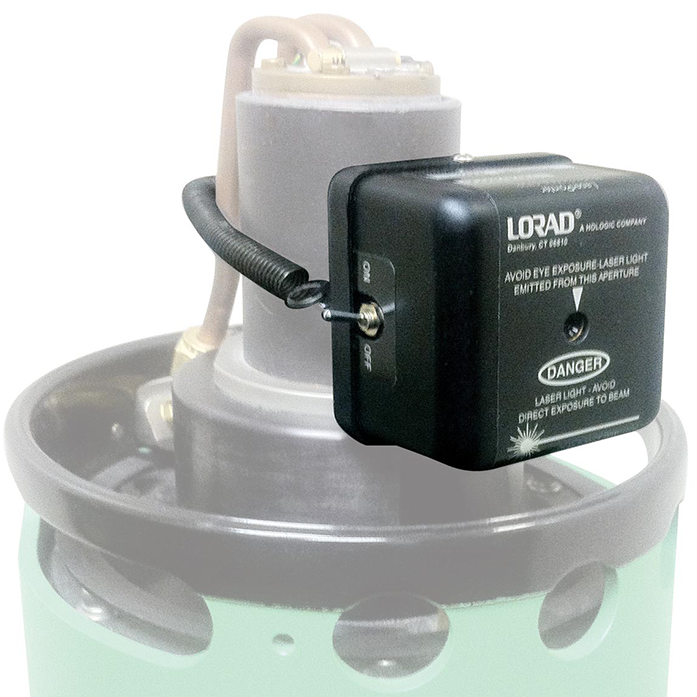

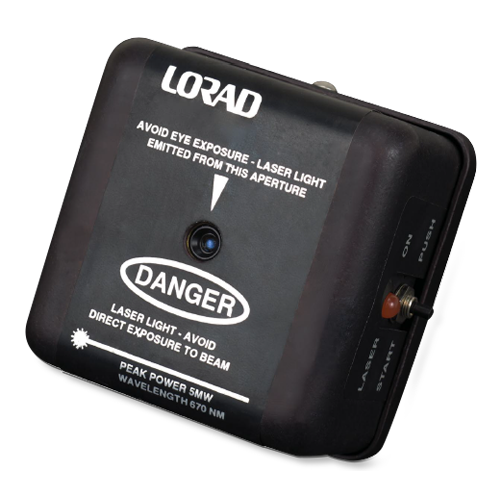

Other imaging systems may produce inconsistent results and require repeat exposures. Spellman’s Laser Pointer, exclusive to Lorad’s Systems, locates the centerline of the X-Ray beam for unmatched accuracy and efficiency. The Laser Pointer shows precisely where the central X-Ray beam will contact the test area by projecting a highly visible reference beam from the X-Ray tube head to surfaces up to 75 feet away. The beam is activated by a push button and automatically shuts off after 30 seconds. The Laser Pointer is lightweight and powered by three (3) AAA batteries. The Laser Pointer can be used with Lorad’s end-grounded exposed anode tube heads and also with air cooled tube heads with the addition of the air cooled adaptor.
The LPX Laser Pointer is compatible with most SPX160, SPX200 and SPX300 tube head assemblies.
| Model Number | Description |
| 3-000-0792 | Laser pointer for liquid cooled tube |
| K935 | SPX160 Laser pointer for air cooled tube |
| K936 | SPX200 Laser pointer for air cooled tube |
| K937 | SPX200/300 Laser pointer for liquid cooled tube |
| K938 | SPX300 Laser pointer for liquid cooled tube |
| Wavelength | 670nm typical |
| Output Power | 4.2mW +/-5% |
| Laser Class | Class IIIa Conforming (CDRH 21CFR) Class 3R (IEC 60825 1) |
| Operating Current | @ 5Vdc 45mA typical, 125mA max |
| Battery Lifetime | 20 hours typical (Alkaline AAA cells) |
| Operating Temp | 10°C to +40°C |
| Operating Time w/o Restart | 30 seconds |
| Dimensions | 1.75˝ H x 2.72˝ W x 2.72˝ D (4.44cm x 6.90cm x 6.90cm) |
