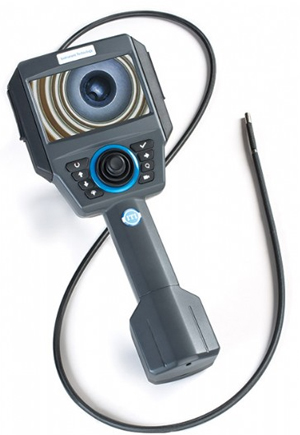

ITI Handheld Videoscopes
Compact, lightweight and economical, the innovative easy-to-operate ITI Handheld Videoscope System combines a rugged videoscope with state-of-the-art functions that work in challenging environments for a fraction of the cost of other handheld units.
Features:
|
Applications:
|
Specifications:
| Working Length | |||
| Diameter: | 0.18" (4.5mm) | 0.24" (6.2mm) | 0.33" (8.4mm) |
| Length: | 1.5m / 3.0m | 1.5m / 3.0m | 1.5m / 3.0m / 6.0m |
| Material: | Tungsten | ||
| Articulation: | 4-way | ||
| Angle: | 140° / 120° | 150° / 140° | 150° / 140° |
| Mode: | Manual Joystick | ||
| Ingress Rating: | IP64 / IP67 | ||
| Imaging | |||
| Camera Sensor: | CMOS, 350k | CMOS, 1 million | CMOS, 1 million |
| Pixels: | 640 x 480 | 1024 x 768 | 1024 x 768 |
| View Angle: | 90° | 120° | 120° |
| f / number: | 4.9 | 5.0 | 5.0 |
| Depth of Field: | 8-80mm | 5-50mm 15mm - Infinity | 5-50mm 15mm - Infinity |
| Zoom: | 1x to 3x | ||
| Illumination: | 5 levels | ||
| Display Monitor: | 4.3", 800 x 480 | ||
| Record / Play | |||
| Photo: | jpg 1024 x 768 | ||
| Video: | avi 800 x 480 | ||
| Storage: | Micro SD, 32GB | ||
| Power | |||
| Battery: | Li-ion, 3.7V | ||
| Capacity: | 6000mAh | ||
| Operating Time: | 4 hours | ||
| Charging Time: | 5 hours | ||
| AC Charger: | 100-240VAC, 50/60Hz | ||
| Menu: | File Save / Delete 12 languages Time / Date Format SD Card | ||
| Outputs | |||
| Video Port: | NTSC / PAL | ||
| USB Port: | File transfer to PC | ||
| Physical | |||
| Material, Handle: | ABS and TPE | ||
| Operating Temperature: | 14°F to 122°F (-10°C to 50°C) | ||
| Weight, Handheld Unit: | 1.6 lbs (.7 kg) | ||
| Weight, Kit: | 12.6 lbs (5.7 kg) | ||
| Dimensions: | 22" x 18" x 6.3" (56 x 46 x 16 cm) | ||
| Options | |||
| Wireless: | WiFi to phone / tablet | ||
| Audio: | Microphone | ||
| Infrared (IR): | 940nm LED | ||
The Handheld Videoscope Kit Includes:
|
