Pratt & Whitney Penetrameters / IQI's

Pratt & Whitney Penetrameters / IQI's



Overview

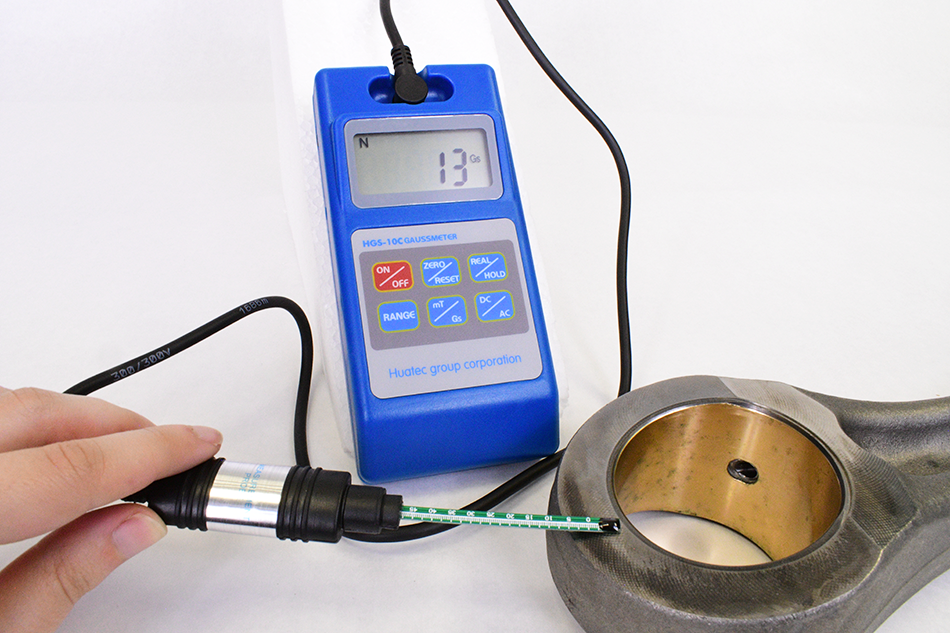

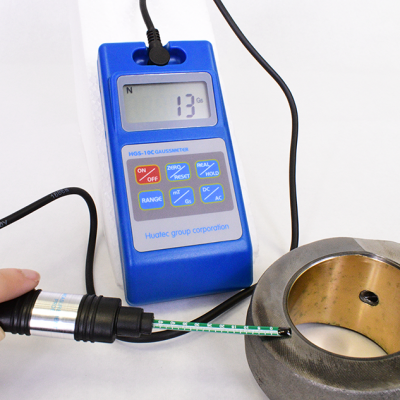

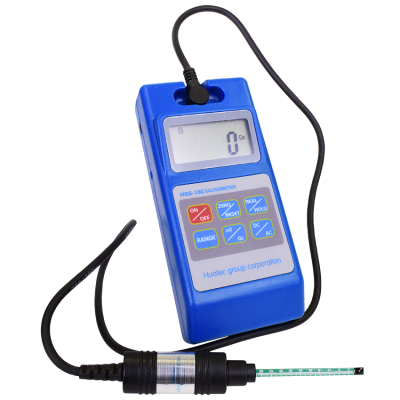

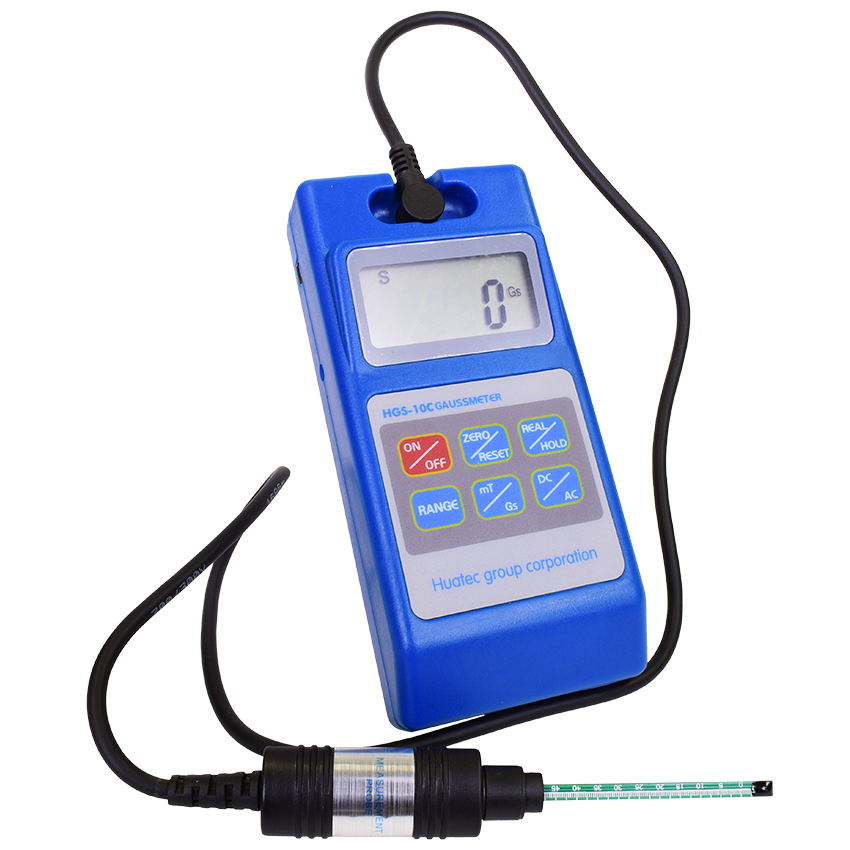

The HGS-10C Digital Gauss Meter verifies that parts are properly magnetized during magnetic particle inspection, or can be used to ensure that parts have been properly demagnetized. Features an easy to read digital display, an accuracy of +/- 5%, and boasts a battery life of up to 20 hours of continuous operation.





Features

  • Measures AC and DC fields
  • Peak Hold Feature
  • Easy to read Digital Display
  • +/- 5% Accuracy
  • Powered by 4 AA batteries
  • 0-200 mT & 0-2,000 mT
  • 0-2,000 Gs & 0-20,000 Gs
  • 0.1mT Resolution
  • -0.06% / °C
  • 41°F - 104°F (5°C - 40°C) with 20 - 80% Humidity
  • 0.01mT & 0.1mT Sensitivity
  • 6" x 2 3/4" x 1 1/4" (150mm x 70mm x 30mm)
  • 1/2 pound (500g) instrument, 1 pound (900g) gross weight

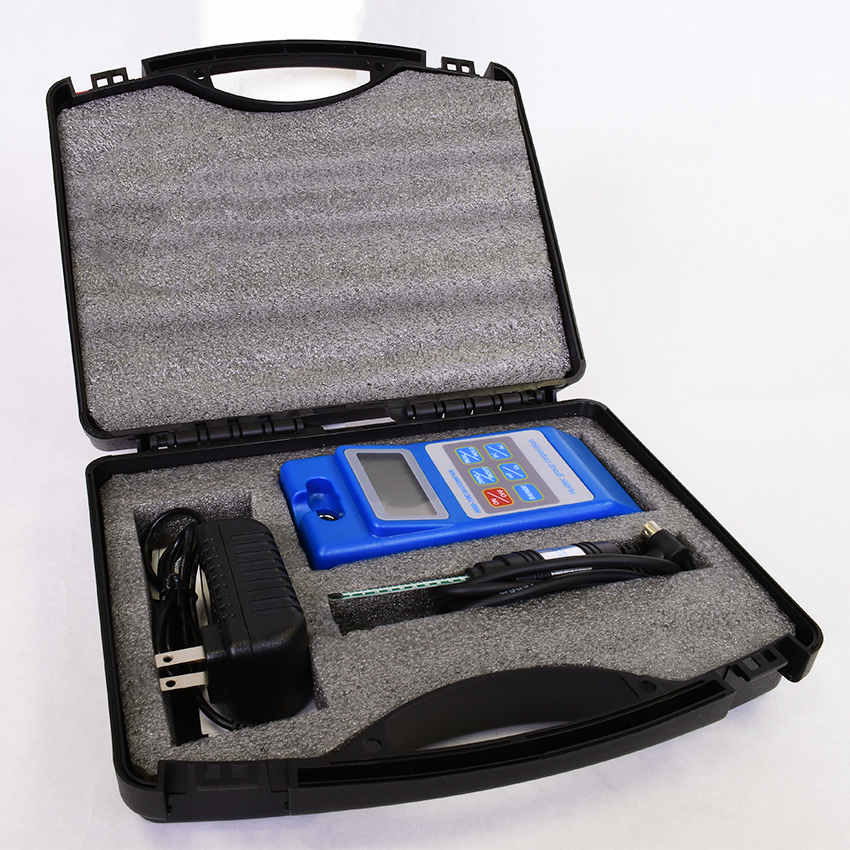

Kit Includes

  • HGS-10C Digital Gauss Meter Unit
  • Tangential Field Probe
  • Power Supply
  • Carrying Case

Product Literature

Description Part # Saved Price Select Option Add to
TAM 108533 Stainless Steel (AMS 5640) - 1/2" Wide in 0.05, .08, .10, .12, .15 and .20 Size Ranges, Detail Numbers 1-6 (Specify Size in Checkout Comments) RT-RC-TAM108533-A
$48.00
TAM 108533 Stainless Steel (AMS 5640) - 1/4" Wide in .05, .08, .10, .12, .15, and .20 Size Ranges, Detail Numbers 7-12 (Specify Size in Checkout Comments) RT-RC-TAM108533-B
$56.00
TAM 142401 Cobalt/ Stellite 25 (AMS 5759) - 1/2" Wide in .05, .10, .15, .20, .08, and .12 Size Ranges, Detail Numbers 1-4, 9, 10 (Specify Size in Checkout Comments) RT-RC-TAM142401-A
$75.00
TAM 142401 Cobalt/ Stellite 25 (AMS 5759) - 1/4" Wide in .05, .10, .15, .20, .08 and .12 Size Ranges, Detail Numbers 5-8, 11, 12 (Specify Size in Checkout Comments) RT-RC-TAM142401-B
$83.00
TAM 1423937 Hastelloy X (AMS 5754), Inconel 600 (AMS 5540), Inconel 718 (AMS 5589), or Waspaloy (AMS 5706) - 1/2" Wide in .05, .10, .15, .20, .08, and .12 Size Ranges, Detail Numbers 1-4, 9, 10 (Specify Size & Material in Checkout Comments) RT-RC-TAM142937-A
$75.00
TAM 1423937 Hastelloy X (AMS 5754), Inconel 600 (AMS 5540), Inconel 718 (AMS 5589), or Waspaloy (AMS 5706) - 1/4" Wide in .05, .10, .15, .20, .08 and .12 Size Ranges, Detail Numbers 5-8, 11, 12 (Specify Size & Material in Checkout Comments) RT-RC-TAM142937-B
$83.00
TAM 140607 Titanium (AMS 4928) - 1/2" Wide in .05, .10, .15, .20, .08 and .12 Size Ranges, Detail Numbers 1-6 (Specify Size in Checkout Comments) RT-RC-TAM140607-A
$75.00
TAM 140607 Titanium (AMS 4928) - 1/4" Wide in .05, .10, .15, .20, .08, and .12 Size Ranges, Detail Numbers 7-12 (Specify Size in Checkout Comments) RT-RC-TAM140607-B
$83.00
