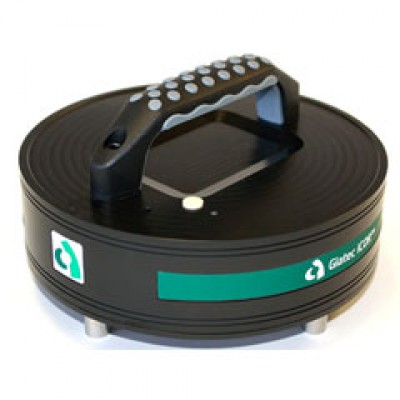

Giatec iCOR

Giatec iCOR

giatec-icor

A non-destructive testing tool for detailed corrosion evaluation of reinforced concrete structures without the need to have an electrical connection to the rebar.

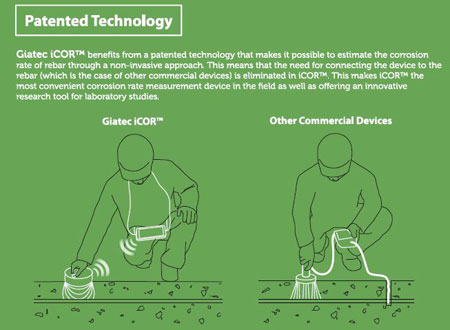

The Giatec iCOR benefits from a patented technology that makes it possible to estimate the corrosion rate of rebar through a non-invasive approach. The need for connecting the device to the rebar (which is the case with other commercial devices) is eliminated with the iCor. The iCor utilizes wireless technology to transmit data to a tablet, where data can be stored, analyzed and visualized. The tablet app offers a powerful post-processing tool and an easy way to share the results with other team members.

iCOR-patented-technology

The Giatec iCor is equipped with high precision sensors that measure:

  • Corrosion potential mapping of rebar
  • Corrosion rate mapping of rebar
  • In-situ real electric resistivity of concrete
  • Ambient temperature and relative humidity of rebar


Applications:

  • Detection of corrosion in the reinforcement
  • Measurement of corrosion rate in concrete structures
  • Measurement of real in-situ electrical resistivity of concrete (minimizes the effect of rebar)
  • Determination of corrosion potential of rebar in concrete
  • Assessment of concrete durability on site
  • Rehabilitation and repair of concrete structures


Features:

  • Fast: Measurements within seconds
  • Real-time: Contour mapping of corrosion rate, electrical resistivity and corrosion potential.
  • Accurate: Comparable to lab techniques
  • Non-destructive: Used for existing structures
  • Easy-to-use: Requires minimal training
  • Non-subjective: Algorithm based interpretations
  • Efficient: Detects initial signs of corrosion
  • Cost Effective: Multiple parameters in a single measurement for durability assessment.


Technical Specifications:

Testing Time: 3 to 15 seconds
Corrosion Rate Range: 0 - 300 µm / year
Corrosion Potential Range: 200 to -800 mV / CSE
Electrical Resistivity Range: 0 - 10,000 Ω • m
Operating Temperature: 32°F - 113°F / 0°C - 45°C
Operating Humidity: 20 - 90% RH
Dimensions: 10" x 3" / 250 x 70mm
Weight: 2 lbs. / 900 g
