Hawkeye Classic Flexible Borescopes
Overview:

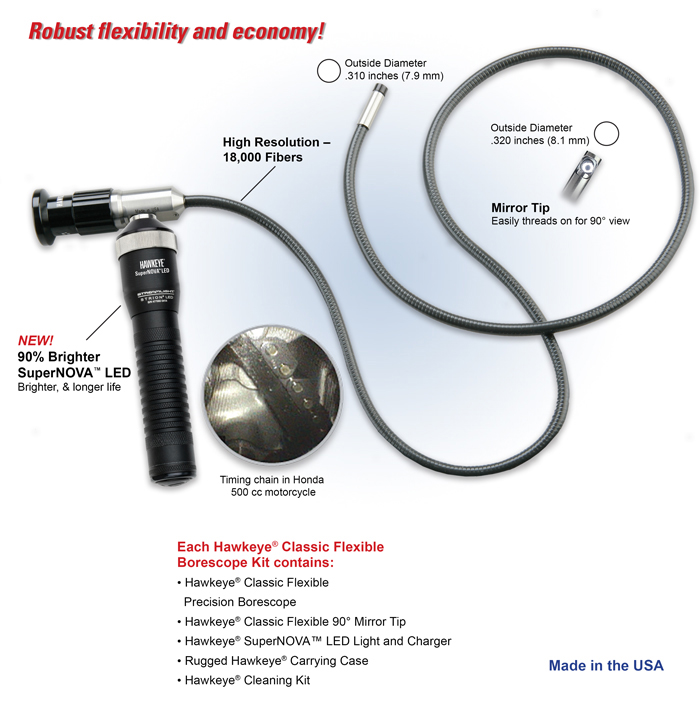

The Hawkeye Classic Flexible Borescope has 18,000 optical glass fibers, delivering high resolution, sharpness and image detail. An acid-leached fiber imaging bundle increases image contrast. Image quality is further enhanced by the super bright Hawkeye SuperNOVA Light. The plastic coated stainless steel gooseneck sheath takes a set before insertion into a cavity.
The Classic Flexible is simpler and much less expensive than articulating flexible borescopes. The 90° Mirror Tip changes the direction-of-view of the Hawkeye Classic Flexible Borescope, just as mirror tubes do for the Pro and Classic Rigid Borescopes. Use the Classic Flexible when indirect access is required, but the path is simple enough to set the borescope before entry.
Note: Per Hawkeye, there is a $10 drop ship fee on all items
| Optics: | |
| Direction-of-View | 0° or use optional 90° adapter |
| Field-of-View | 40° FOV |
| Depth-of-Field | 15 - 75 mm |
| Distal Focus | Fixed focus lens set |
| Mechanical: | |
| Tube Diameter | 7.9 mm at 0°, 8.1 mm with 90° tip |
| Working Length | 1000 mm |
| Insertion Tube Bend Radius | 2.0" |
| Articulation | None, Shapeable Gooseneck |
| Tube Construction | Stainless Steel monocoil gooseneck inside, watertight PVC outside |
| Environmental: | |
| Operating Temperature | 0° to 170° F (-18° to 77° C) |
| Watertight Insertion Tube | Up to 1 atm/1 bar (14.7 psig); approx. 30ft. water depth |
| Note 1 | The eyepiece is splash proof only |
