Luxxor Video Systems
Overview:

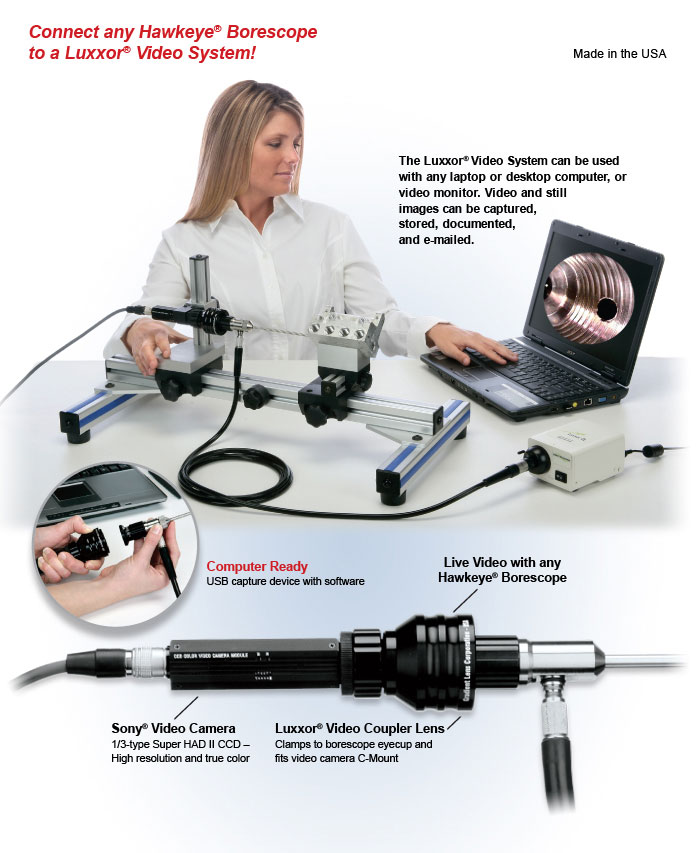

Any Hawkeye Rigid or Flexible Borescopes can be connected to the Luxxor Video System, as can most other borescope brands as well. Video System users can easily view and document inspections and store video or still images on a computer hard drive.
With components selected specifically to meet each individual visual assignment, Luxxor Video Systems can make long days of repetitive parts inspection faster, easier, more efficient and more more comfortable for inspectors.
Luxxor Video Systems
| Components Available | Model # |
| Sony XC-505 Video Camera | XC-505 |
| Luxxor Coupler Lens | VC-25 |
| Luxxor 35 LED Light Source | LXX35-LED |
| Luxxor Light Guide | LXXLG |
| SuperKit Case | HSC |
| Benchtop 15" LCD Video Monitor | SVM-15 |
| VidCap USB 2.0 | VC-USB2 |
| Horizontal Video Slides - 24" | HVSLIDE-24H |
| Horizontal Video Slides - 48" | HVSLIDE-48H |
Luxxor Video Systems Superkit Contains:
|  |
Note: Per Hawkeye, there is a $10 drop ship fee on all items
| Sony XC-505 Camera: | |
| CCD | 1/3 inch |
| Effective Pixels | 768 X 494 |
| Video Resolution | 525 Lines, 2:1 Interlace |
| Frame Rate | 30 frames / sec. |
| Video Output | NTSC VBS or Y/C |
| Lens Mount | NF (C-Mount adapter included) |
| White Balance | Selectable. 5 modes |
| Shutter Speed | Selectable, 1/60 - 1/1000 sec |
| AGC | Automatic Gain Control can be turned On / Off |
| Operating Temperature | -22°F - 140°F / -30°C to 60°C |
| Dimensions | 7/8" x 7/8" x 25/8" (22 x 22 x 64 mm) |
| Weight | 1.8 oz. (51 g) |
| Light Source | Luxxor 35 LED Light |
| Light Guide | 2.5 m long, 4mm fiber bundle, with ACMI male light source end and ACMI female borescope end. Exterior - polymer sheathing over Stainless Steel monocoil. |
| Video Coupler Lens | Standard 25mm focal length. Other focal lengths available upon request. |
| Video Cable | Power / S-video output cable provided. |
