Portable, Reliable & Accurate

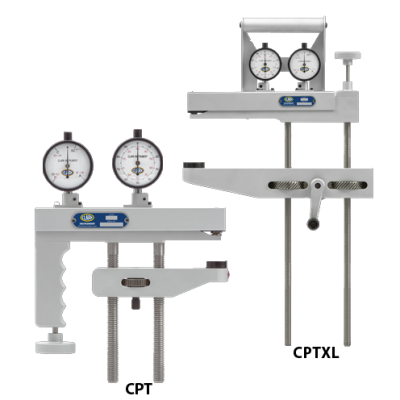

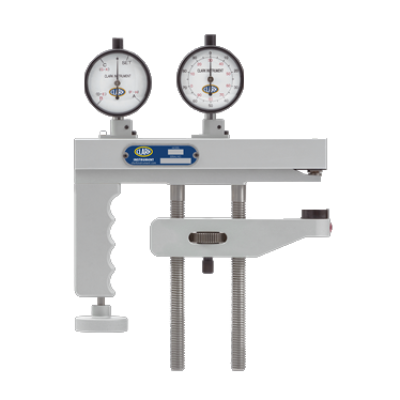

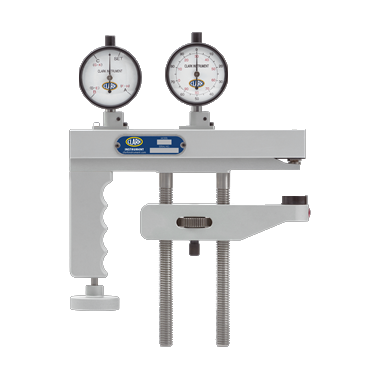

The Clark CPT Series portable testers offer a reliable solution for “Rockwell” testing in areas where clearance is limited, allowing for testing both inside and outside surfaces at any angle. Quick change indenter, easy to read dial indicators, and finger tip loading make the CPT a handy and efficient tool for testing large or difficult to access parts.

Special Features:

  • Accurate "Rockwell" scales, A,B,C,D,E,F,G,H & K readings
  • Durable design withstands harsh environments
  • Lightweight
  • Conforms to tolerances per ASTM & ISO 17025 Standards
  • Certified and ready to use

Technical Specifications

CPT Series Specifications

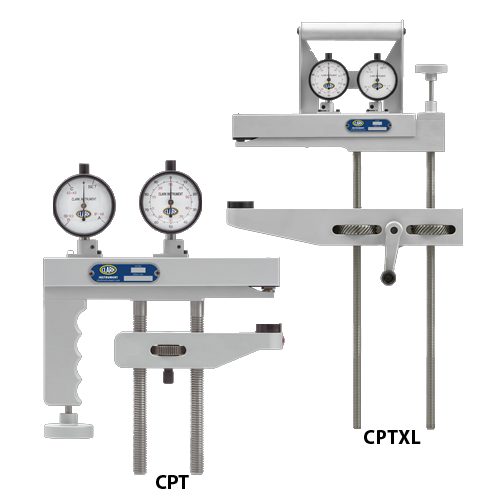

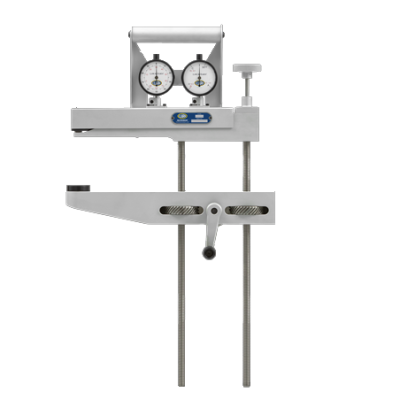

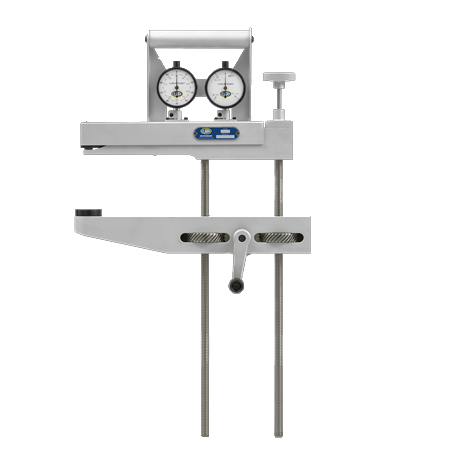

Model CPT CPTXL
Minor Load 10 kgf
Test Loads 60, 100, 150 kgf
Scales A,B,C,D,E,F,G,H,K
Accuracy Conform to tolerances per ASTM E-110 as outlined in E-18
Vertical Capacity 4.5" (114.3mm) 12" (305mm)
Throat Depth 2.25" (57.1mm) 6" (152.4mm)
Weight 4 lbs. (1.81 kg) 15 lbs. (7 kg)

CPT Series Kits Include

  • Unit
  • Hardness Standard
  • 1/16" Carbide Ball Indenter
  • Flat Anvil
  • V-Anvil
  • Convex Anvil
  • Manuals
  • Conversion Chart
  • Carrying Case
