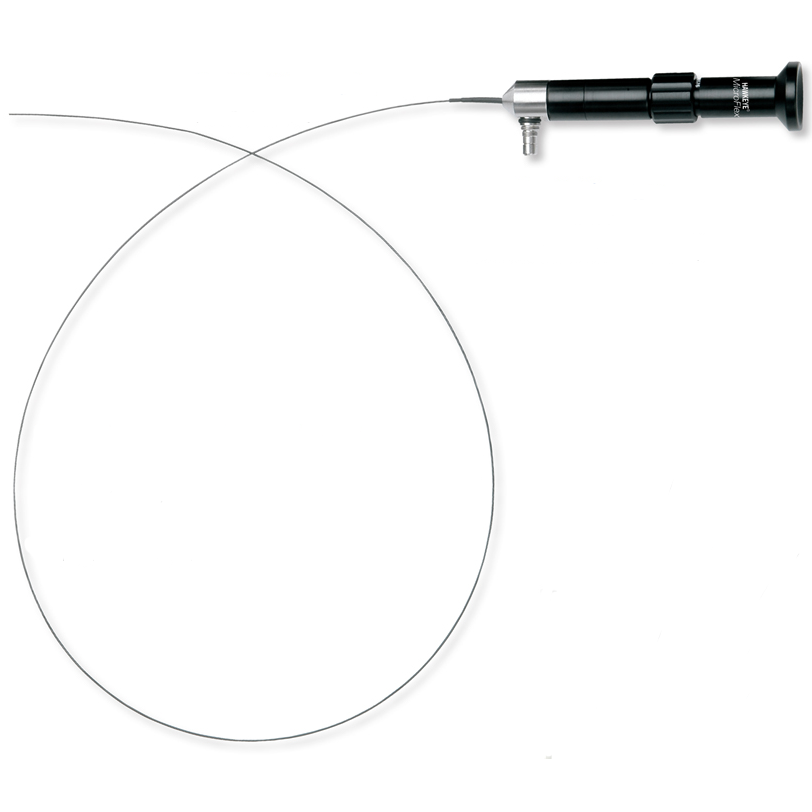

Hawkeye Pro MicroFlex Flexible Borescopes

Hawkeye Pro MicroFlex Flexible Borescopes

The worlds first real UV dual videoscope

INVIZ UVin UV-LED Daylight Dual Video Borescope

The worlds first real UV dual videoscope

Employing the latest LED illumination technology, known draw backs from quartz or liquid UV light guides are history with INVIZ UVin. In UV mode, the probe will emit exactly 365nm light, enabling high quality dye penetrant and magnetic particle inspections in previously inaccessible areas… Adding white light on a user selectable level, allows easy access and full orientation inside the application. Failures are easy to identify and the viewing contrast can't be higher.

The worlds first real UV dual videoscope is available in two diameters and two standard lengths: 4 meter desktop and 8 or 15 meter reel design. With as little as 12 millimeters the UVin 12.7 probe, will allow you to inspect even through the smallest entrance. The quad beam of the UVin 43 will give a full overview even in huge cavities, such as large engine cylinders and the like.

Applications:

  • Remote visual inspection in turbines / generators
  • Remote visual inspection in refineries
  • Remote visual inspection in tanks / vessels
  • Remote visual inspection in the nuclear industry
  • Remote visual inspection in the pharmaceutical industry / food industry
  • Remote visual inspection in power generation
  • Remote visual inspection in buildings and in construction


uvin-flaw-test
 uvin-flaw-test


Specifications:

Technical Data UV-LED INVIZ UVin 4 S / 4 RF:

Power Requirements: 96 - 256VAC, 50 / 60Hz / 60 Watt
Dimensions: 9.3" x 5.2" x 11.2" / 236 x 133 x 285 mm, desktop
Weight: 9.5 lbs. / 4.3 kg
Control: UV emission 0 - 100%, white light 0 - 100%, White Balance adjustment
Video Output: S-Video / composite video, PAL or NTSC available
Video Resolution: PAL: 440,000 pixels / (H) 752 x (V) 582
NTSC: 380,000 pixels / (H) 758 / (V) 492
Optical System: Standard 130° FOV at 0° DOV
Probe: Insertion Tube 4m / 10mm, camera head 12.7mm, probe and head stainless steel / polyurethane
Options: Remote Focus control includes 65° FOV Remote Focus Lens System, Light Control Pendant includes 2.5m cable


Technical Data UV-LED INVIS UVin 15 S / 15 RF (8 S / 8 RF):

Power Requirements: 96 - 256VAC, 50 / 60Hz / 60 Watt
Dimensions: 16.9" x 17.7" x 11.2 / 429 x 450 x 285 mm, reel design
Weight: 29 lbs. / 13.1 kg (15m probe)
Control: UV emission 0 - 100%, white light 0 - 100%, White Balance adjustment
Video Output: S-Video / composite video, PAL or NTSC available
Video Resolution: PAL: 440,000 pixels / (H) 752 x (V) 582
NTSC: 380,000 pixels / (H) 758 x (V) 492
Optical System: Standard 130° FOV at 0° DOV
Probe: Insertion Tube 15m (8m) / 10mm, camera head 12.7mm, probe and head stainless steel / polyurethane
Options: Remote Focus control includes 65° FOV Remote Control Lens System, Light Control Pendant includes 2.5m cable


Light Parameters:

UV 365nm Output: 3.9" / 100mm distance scope - target / 0° DOV ± 20°: 1000 µW/cm2 (10 W/m2), remaining visible part less then 10 lx. Scope of illumination > FOV
UV LED Lifetime: > 10,000 hrs.
Daylight Output: 40 lumens, 2 LED, Scope of illumination > FOV
Daylight LED Lifetime: > 10,000 hrs.


Operating Environment / Storage:

Camera Operating Range: 5°F to 150°F / -15°C to 65°C
CCU Operation Range: -4°F to 115°F / -20°C to 45°C
Watertightness: 1.5 bar / 15m water

Product Literature

Description Part # Saved Price Select Option Add to
Hawkeye Gradient Pro MicroFlex Flexible Borescope: Plastic Sheathed, 0.020" (0.5mm) Diameter x 23.5" (600mm) Length, 10,000 pixels and includes HFC2 Carrying Case RV-HG-HSF-005-0600-55
$4,995.00
Hawkey Gradient Pro MicroFlex Flexible Borescope: Plastic Sheathed, 0.035" (0.9mm) Diameter 39.4" (1000mm) Length, 10,000 pixels and includes HFC2 Carrying Case RV-HG-HSF-009-1000-55
$4,995.00
Hawkeye Gradient Pro MicroFlex Flexible Borescope: Plastic Sheathed, 0.060" (1.5mm) Diameter x 31.5" (800mm) Length, 30,000 pixels and includes HFC2 carrying case RV-HG-HSF-015-0800-70
$4,995.00
