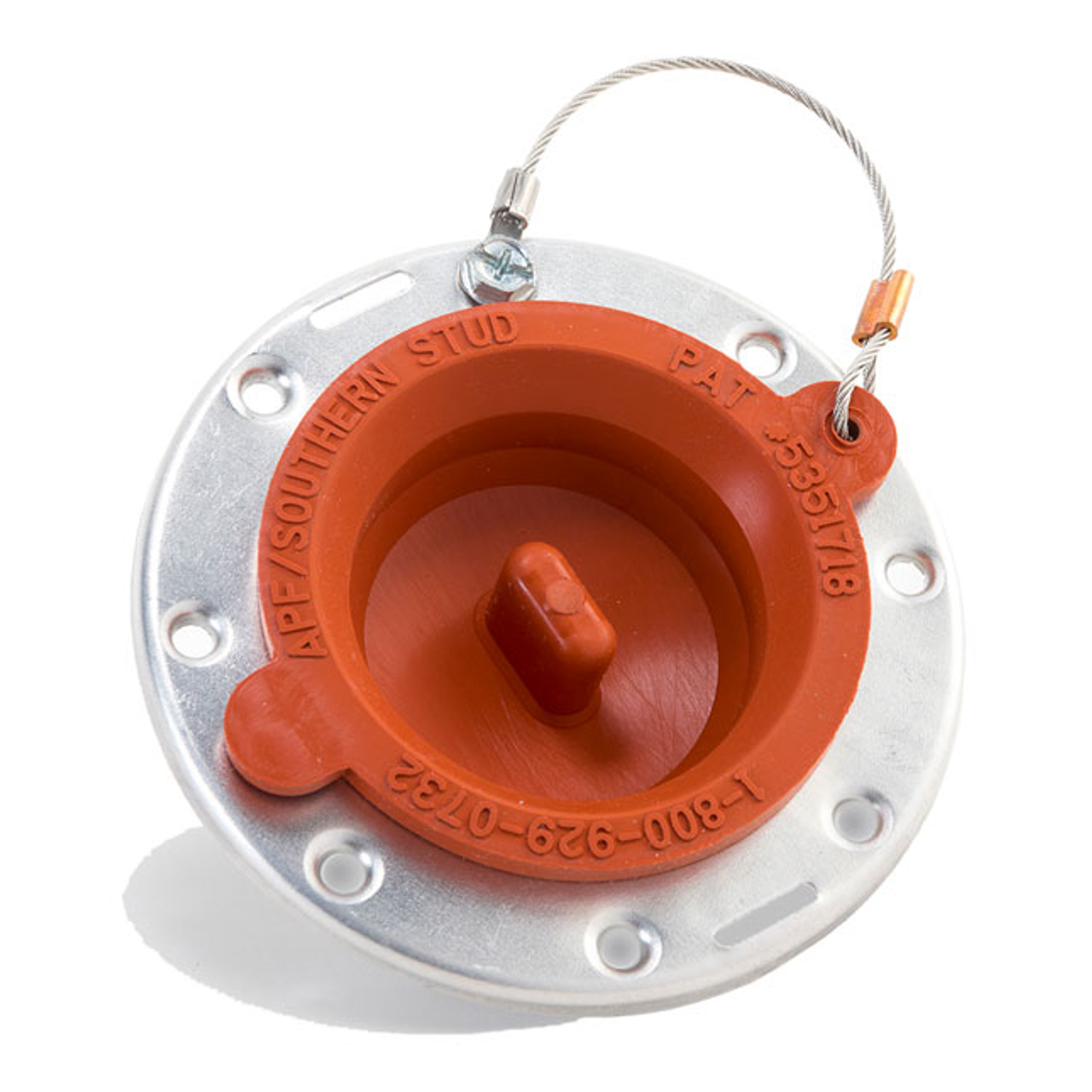

Access Plug Flange (APF) Inspection Plugs

Access Plug Flange (APF) Inspection Plugs

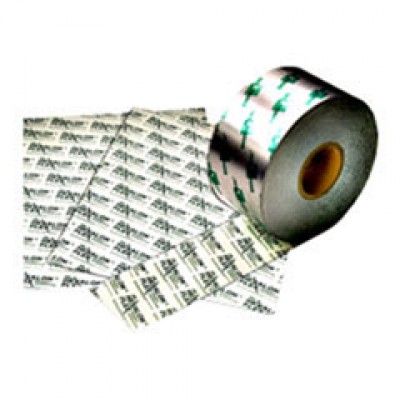

Warren Hexalon Flex Intensifying Screens

Warren Hexalon Flex Intensifying Screens

For Tighter Radius' and Better Film-to-Screen Contact

Features:

The popular industry standard for radiographic testing
Guaranteed Artifact-Free for greater accuracy
Proprietary Fiber 90 Backing for greater flex and durability
Unique flexible backing for inspecting dimensional surfaces
Fits a tight radius for better film-to-screen contact
Cut exposure time while increasing contrast and sensitivity
High absorption rate reduces scatter and secondary radiation
Enviroseal© peel-off cover protects from scratching and oxidizing
They come in sheets or rolls at 0.005" or 0.010" thickness and various widths


Cut Screens - Standard Sizes

14" x 17" 7" x 17"
8" x 10" 4.5" x 10"
5" x 7" 4.5" x 17"

*Custom sizes are available upon request

Roll Stock

2.75" (70mm wide) x 300 ft. x 0.005" 2.75" (70mm wide) x 180 ft. x 0.010"
3.5" (90mm wide) x 300 ft. x 0.005" 3.5" (90 mm wide) x 180 ft. x 0.010"
4.5" (115mm wide) x 300 ft. x 0.005" 4.5" (115mm wide) x 180 ft. x 0.010"
17" (432mm wide x 95 ft. x .005

*Available thicknesses: 0.005" and 0.010"
