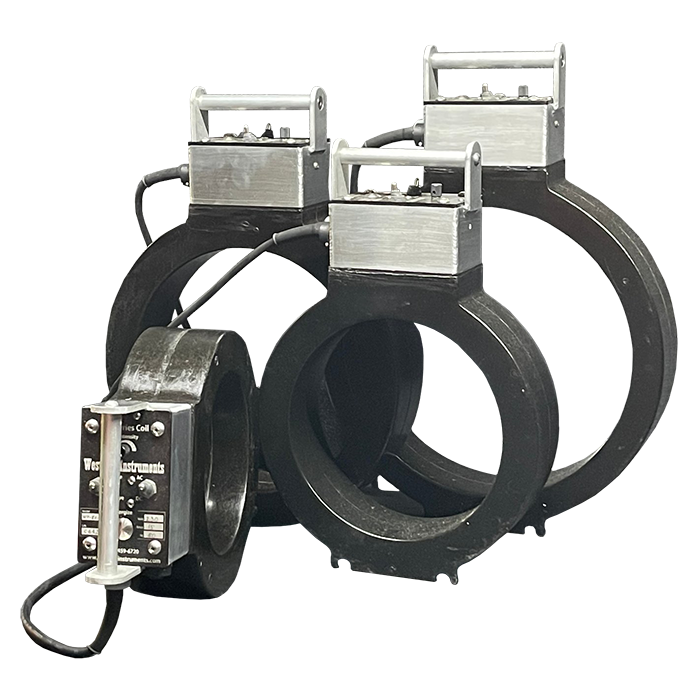

The WP Series Coils are offered in a wide variety of options and sizes: AC, AC/DC, AC/Variable DC and AC/Variable and Reversing DC. Coils, with or without options, are offered in 4 different ID sizes: 8" (203mm), 10" (254mm), 12" (305mm), and 14" (356mm). WP Series Coils offer over 7000 Amp Turns of Half Wave DC Output and 4000 Amp Turns in AC. WP-Series Magnetic Particle Inspection Coils are set apart from other coils due to their Demag Option, which allows for Reversing and Decaying DC Magnetization. Further, adding the Variable DC Output Option allows operators to control the amount of field so parts do not become saturated. Note that they are not recommended for Drill Pipe - see WS and WDV type coils.
Basic
Models: WP-8, WP-10, and WP-12
Features:
Energize Button
AC/DC
Models: WP-8D, WP-10D, and WP-12D
Features:
Energize Button
AC/DC Selection Switch
AC/Variable DC
Models: WP-8DV, WP-10DV, and WP-12DV
Features:
Energize Button
AC/DC Selection Switch
Infinitely Variable
AC/Variable and Reversing DC
Models: WP-8DVR, WP-10DVR, and WP-12DVR
Features:
Energize Button
AC/DC Selection Switch
Infinitely Variable
Reversible Polarity (Positive / Negative)
| Model | Control | Size | 115V/60Hz | 230V/50HZ | Output | Weight |
| WP-8 | AC only | 8” (201 mm) | 13 Amps | 6.5 Amps | 4250 AC | 15 pounds (6.8kg) |
| WP-8D | AC and DC | 8” (201 mm) | 13 Amps | 6.5 Amps |
4150 AC 6000 DC |
|
| WP-8DV | AC with Variable DC | 8” (201 mm) | 13 Amps | 6.5 Amps |
4150 AC 0 to 6000 DC |
|
| WP-8DVR | AC with Variable and Reversing DC | 8” (201 mm) | 13 Amps | 6.5 Amps |
4150 AC +/- 0 to 6000 DC |
|
| WP-10 | AC only | 10” (254 mm) | 15 Amps | 8 Amps | 4150 AC | 17 pounds (7.7kg) |
| WP-10D | AC and DC | 10” (254 mm) | 15 Amps | 8 Amps |
4150 AC 6000 DC |
|
| WP-10DV | AC with Variable DC | 10” (254 mm) | 15 Amps | 8 Amps |
4150 AC 6000 DC |
|
| WP-10DVR | AC with Variable and Reversing DC | 10” (254 mm) | 15 Amps | 8 Amps |
4150 AC +/- 0 to 6000 DC |
|
| WP-12 | AC only | 12” (305 mm) | 16 Amps | 9 Amps | 4050 AC | 19 pounds (8.6kg) |
| WP-12D | AC and DC | 12” (305 mm) | 16 Amps | 9 Amps |
4050 AC 6000 DC |
|
| WP-12DV | AC with Variable DC | 12” (305 mm) | 16 Amps | 9 Amps |
4050 AC 0 to 6000 DC |
|
| WP-12DVR | AC with Variable and Reversing DC | 12” (305 mm) | 16 Amps | 9 Amps |
4050 AC +/- 0 to 6000 DC |
|
| WP-14 | AC only | 14” (355 mm) | 18 Amps | 10 Amps | 3875 AC | 23 pounds (10.5kg) |
| WP-14D | AC and DC | 14” (355 mm) | 18 Amps | 10 Amps |
3875 AC 6000 DC |
|
| WP-14DV | AC with Variable DC | 14” (355 mm) | 18 Amps | 10 Amps |
4050 AC 0 to 6000 DC |
|
| WP-14DVR | AC with Variable and Reversing DC | 14” (355 mm) | 18 Amps | 10 Amps |
3875 AC +/- 0 to 6000 DC |
All Coils are 3 ⅝” (22mm) Wide
ExWorks - Canada. Freight quote can be provided upon request.
