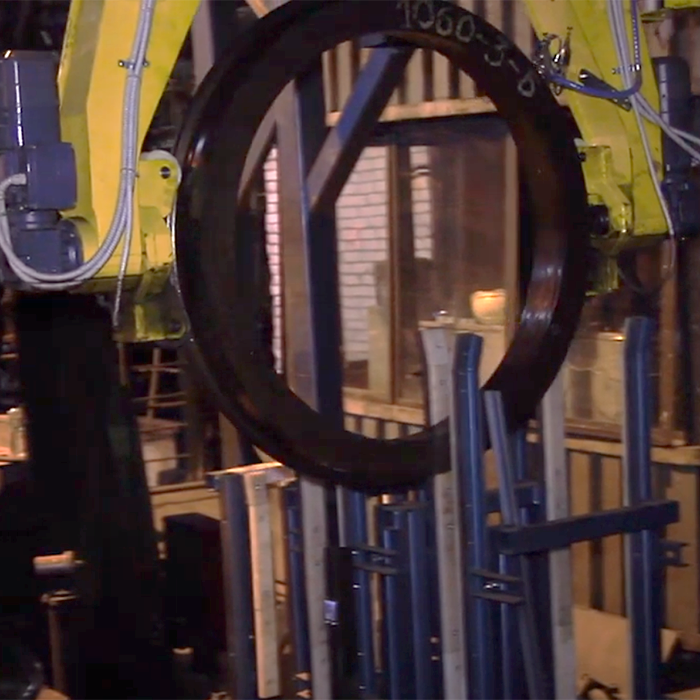

OKOndt SNK KB-13 Automated Wheel & Rim UT System

OKOndt SNK KB-13 Automated Wheel & Rim UT System

NDT DM-3011 Densitometer

Calibration Traceable to NIST

Measures up to 5.0 D

DM-3011



Main Technical Data
Density Range: 0.00 - 5.00 D
Repeatability: ±0.01 D
Measuring Error: 0.00 - 2.00 ±0.02D
2.00 - 4.50 ±0.05D
4.50 - 5.00 ±0.08D
Power: 50 - 60Hz, 110-220V
Power Dissipation: 25 W
Aperature Size: Dia. 2mm
Display Mode: Three Digital Display
Sampling Time: 0.8 seconds
Communication Port: RS232 Port
Software: DM CAL PC Software
Working: Temperature: 0°C - 40°C, 32°F - 104°F
Environment: Relative humidity ≤ 85%
Dimensions: 9.6" x 10.6" x 4.4" (260mm x 265mm x 110mm) (H x W x L)
Weight: 4.6 lbs. (2.1 kg)



keiyu-dt-500

Includes:
Unique calibration software which allows precise calibration to your certified step wedge.

DM3011 Software

Standard Configurations:

  • DM-3011 Series Black & White Densitometer
  • Standard Step Density Tablet
  • Power Line
  • Serial Port Cable
  • Software CD for Auto Calibration
  • Quality Certification
  • Operating Manual
  • Packing List
  • Case



Note: Below prices include current U.S. Duties & Import Costs.*

*subject to change

Product Literature

Description Part # Saved Price Select Option Add to
OKOndt SNK KB-13 Automated Wheel & Rim UT System UT-OKO-SNKKB13
Request Pricing
