Portable, Lightweight and Robust Large Area Imager

Vidisco BlazeXPro

Features:

  • Fully Battery Operated, DC/AC Self Charging
  • Easy Setup in Laboratory or Field
  • Professional Software Included
  • Fast and Safe Operation


The BlazeXPro is a large area (a-Si) DDA Imager that can be used in the field or a laboratory. Lightweight and compact, the entire system can be carried in a single case or backpack to your destination. Fast set up under rigorous conditions and at any location, makes the BlazeXPro an ideal tool for the NDT operator.

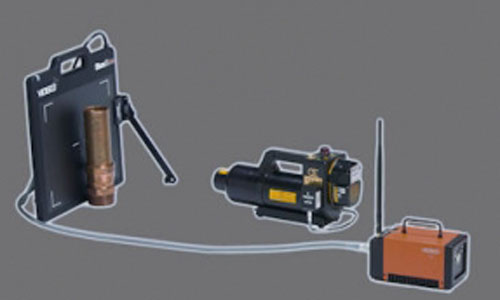

vidisco blazexpro image

The BlazeXPro is fully synchronized with portable pulsed as well as constant potential X-ray sources. The X-ray source is controlled by the system, making operation easier and allowing for dose reduction, resulting in increased operator safety. Fully battery operated for long periods of time, the BlazeXPro system self charges during operation when connected to any external power source, such as 110/220V AC, as well as a DC/AC vehicle inverter.

The BlazeXPro DDA Imager together with integrated wireless operating options enables you to option high quality digital images instantaneously, even in the tightest of spots.

vidisco blazexpro imagevidisco blazexpro imagevidisco blazexpro image

  • Excellent Resolution: 3.97 lp/mm (127 µM pixel pitch)
  • Dynamic Range: 14 bit digital radiography imaging, enabling the delineation of hairline cracks
  • Easy Set Up: Requires just one cable pushing DC power and data down the line
  • Proprietary XbitPro Software: All in one, user friendly software serves as a powerful tool, grabbing, analyzing and storing images on the spot
  • Compliant with current industry standards: e.g. BSS 7074/ 7075, ASTMI 2422, ASME (Section V), now supports the use of Digital Radiography
  • Large Imaging Area: 260 x 320 mm (aprox.10.2 inch x 12.6 inch)
  • Ideal for NDT Field Work: Thin and robust panel fits in the tightest spots
  • Safest NDT Inspection System: Low dose per image, shortened exposure times and lower energy levels, allow the reducing of safety zones
  • Compatible with various sources: Golden Engineering portable pulsed, Constant Potential and High Frequency X-ray sources (e.g. Yxlon, Baltaeu, GE and Seifert). Full support of Isotopes (e.g. Ir-192 and Se-75)

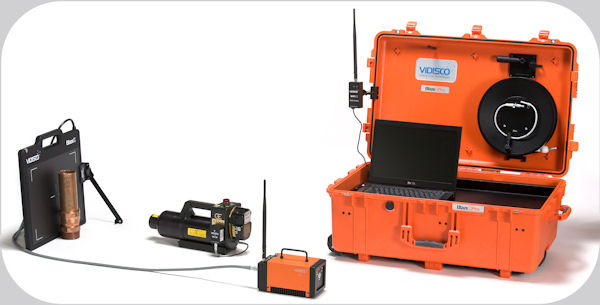

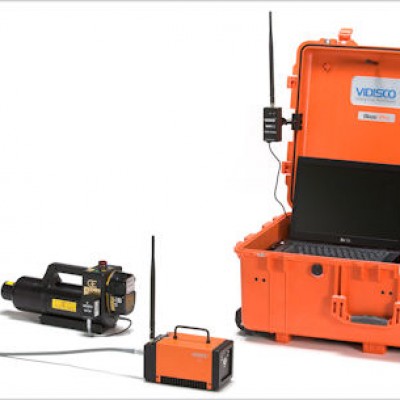

  • Combined case and Work Platform: Portable case contains the entire system and doubles as a work platform.

    Technical Specifications

    Imaging Area: 260 x 320mm (˜ 10.2 x 12.6 inch)
    Imager Size:

    403.5 x 422 x 22mm (h,w,d) - Thin Large Area Image

    15.9 x 16.6 x 0.86 inch

    Imager Weight: 4 Kg (˜ 8.8 lbs)
    Imager Sensor Type:

    Amorphous Silicon (a-Si) Digital Detector Array (DDA) Flat Panel Imager

    Dynamic Range: 14 bit (16,384 Grey Levels)
    Resolution: 3.97 lp/mm (127 µm pixel pitch)
    Power Supply: Over 5 hours of battery operation on one charge/ unlimited operation on AC 110/220V / Self-Charging during AC operation, for example from a DC/AC vehicle inverter
    Optional Accessories Available:

    Wifi X: Digital Wireless System - connecting laptop to ICU/ Imager (300m line of sight)

    Long Range Wireless Options: Up to 1500m (˜ 1 mile!) - line of sight when using high power modules

    WXR: Wireless X-ray eliminates cable connection to Golden X-ray

    Extension Cables: Allows for operation up to 200m distance
    DC/AC Vehicle Inverter: For unlimited power supply from a vehicle - DC power down the line for added safety

    External Camera: For external color images and video

    XR-DE Plus: Dual Energy Module for Organic/ Inorganic Detection

    Software: Advanced, user friendly proprietary XbitPro software for NDT operators

    *System configuration is subject to market changes and manufacturer specifications
