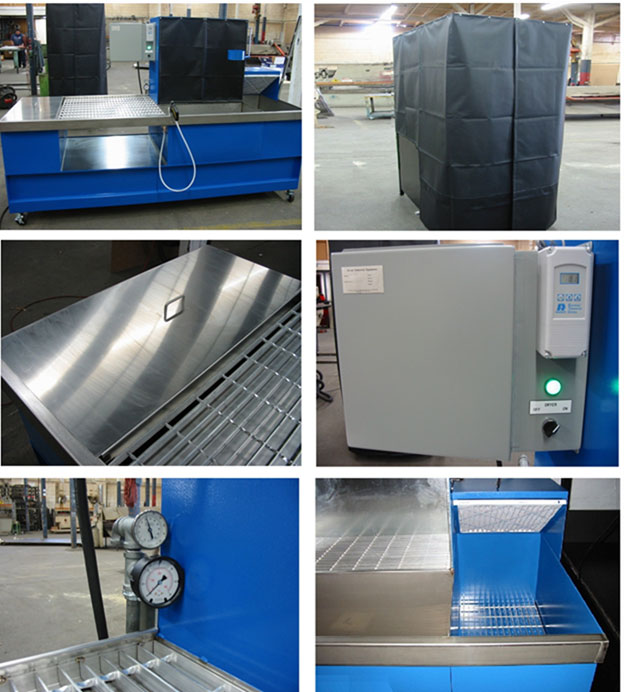

NDT 1836W Water Washable Dye Penetrant Testing System
| NDT 1836W Type 1 | NDT 1836W Type B |
 |  |
| 1. Penetrant Station - Outside Dimensions:
18" W x 36" L x 36" H - Inside Dimensions: 17" x 35" x 21"
- Heavy Gauge Stainless Steel Tank
- Work Stand
| 2. Drain Station - Dimensions:
36" W x 36" L x 36" H - Aluminum Grating Work Surface
- Stainless Steel Drain Pan
|
| 3. Wash Station - Outside Dimensions:
18" W x 36" L x 36" H - Inside Dimensions: 17" x 35" x 25"
- Heavy Gauge Stainless Steel Tank
- Spray Hose and Nozzle
- Black Light
| 4. Dryer Station - Outside Dimensions:
18" W x 36" L x 36" H - Inside Dimension: 17" x 34" x 26"
- Front Loading Station
- Heavy Gauge Steel Panels
- Insulated Interior Panels with Heat Reflective Surfaces
- Removable Fans and Heater Elements
- Digital Thermostat
- Air Circulation Fans
|
| 5. Developer Station - Outside Dimensions:
18" W x 36" L x 36" H - Inside Dimensions: 17" x 35" 21"
- Heavy Gauge Stainless Steel Tank
- Work Stand
| 6. Inspection Station - Outside Dimensions:
60" W x 36" L x 83" H - Inside Dimensions: 60" x 36" x 363/4"
- Steel Framework
- Black Light
- White Light
- Ventilating Fan
- Full Length (4" above floor), Flame Resistant Curtains
- Operator Switch Panel
- Curtain Split on Right and Left Sides
- Curtain Split on Front Side for Operator Access
|
FPI-1836W Compact Penetrant Systems
- Compact design
- Ergonomic design
- Rugged construction
- Optional semi-automatic rotary wash table
- Blacklight mounts are included
- Optional Swirl Cloud or Dynamic Cloud Developer
- 18 inch x 36 inch tank size
Post Emulsifiable models (L) Lipophilic or (H) Hydrophilic are also available
