Sonatest Veo3

Sonatest Veo3

Mounting Blocks are used with ASTM-E-1742 Penetrameters

Overview

Mounting blocks are used when it is impractical to place the IQI directly on the object being radiographed. Most codes specify that a mounting block of the same material and thickness be placed, with the IQI, adjacent to the part in such a manner that it will show clearly on the radiograph. Standard mounting blocks are supplied in sizes corresponding with ASTM E-1742 IQI sizes.

General Dimensions

  • Sizes up to 2 1/2", 1" X 2 1/4"
  • Sizes over 2 1/2", 1 1/4" X 3"

These dimensions allow at least 1/8" clearance on three sides of the IQI.



Materials

Standard mounting blocks are available in the following materials:

  • Steel (1018)
  • Aluminum (6061)
  • Magnesium (AZ31 & ZK60)
  • Aluminum (2014, 2024, 2219, 7075)
  • Stainless Steel
  • Copper
  • Brass
  • Inconel 600
  • Cupronickel
  • Phosphor-Bronze
  • Nickel
  • Monel
  • Hastelloy X & C
  • Inconel 625 & 718
  • Waspaloy (Up to .375)
  • Titanium (6/4)
  • Cobalt (Haynes 25 & 188)

*Specify individual sizes and quantity in the comments section during checkout.
Prices below are per block



Note: Mounting Blocks can be ordered in metric (mm) sizes by request. Metric Blocks will be marked in millimeters only unless both millimeters and inches are specifically requested. Calibration Certificate (if ordered) will show both millimeters and inches.

Minimum Order Size is $75

Note: Serialized radiographic products are not returnable

Description Part # Saved Price Select Option Add to

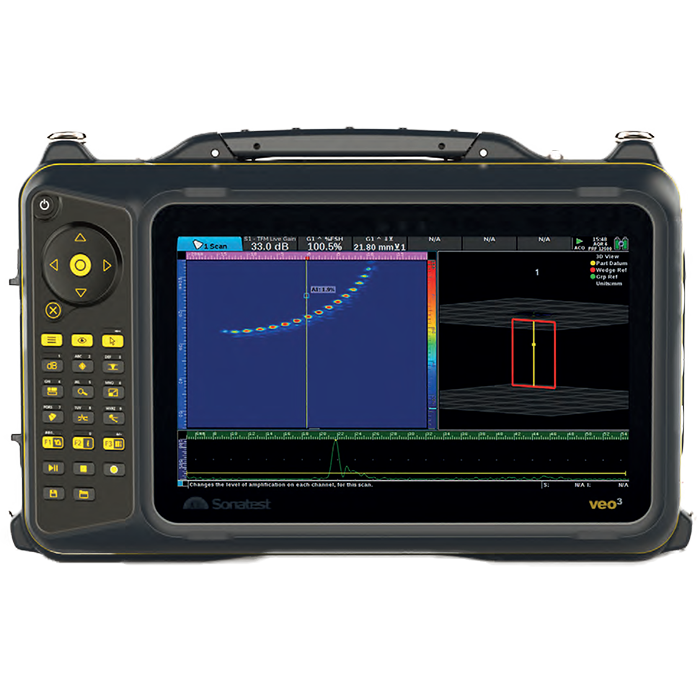

Veo3 Phased Array Flaw Detector Includes: Unit, 2 Li-Ion Batteries, USB Stick 8GB, Ruler, AC/DC Power Adapter, Quick Start Guide-Hard Copy, User Manual & Guide-USB, Carry Strap, Transport Case, Screen Protector (Clear/Tinted) UTstudio License UT-ST-Veo3
Request Pricing
