The Luxxor Portable Video Camera connects to any Hawkeye Rigid or Flexible Borescope! When connected to any Hawkeye Borescope, the new Luxxor Portable Video Camera delivers sharp bright video and still images. Inspection video and still images can be viewed "live" and captured!

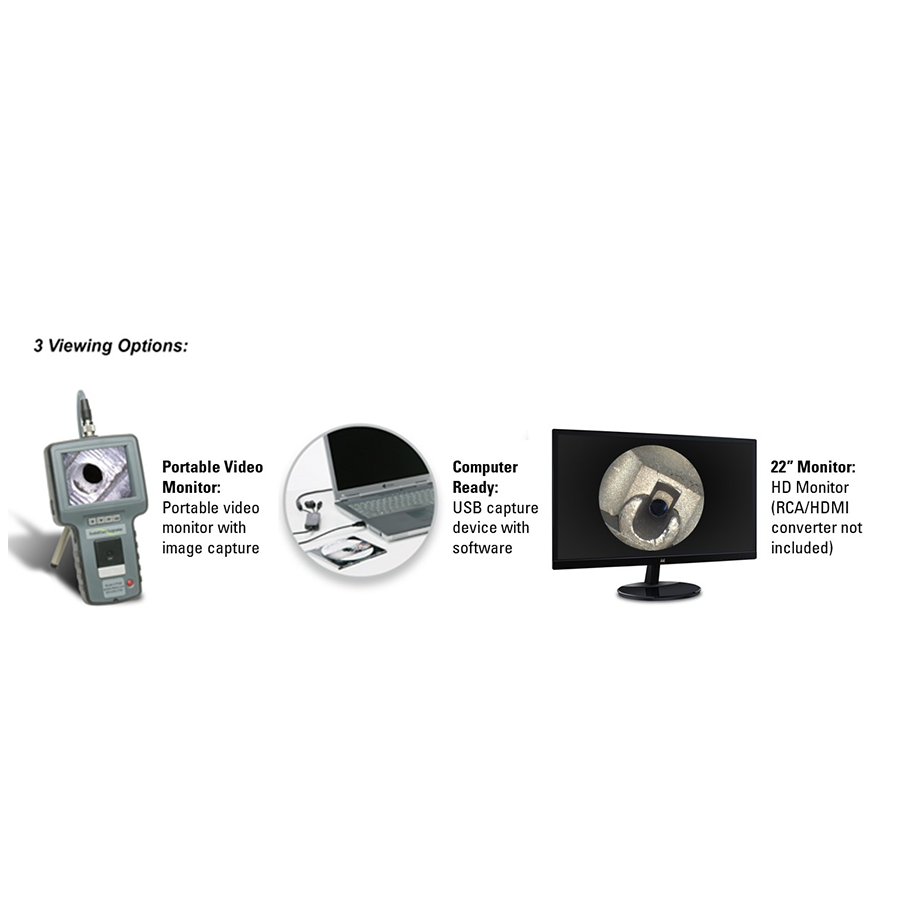

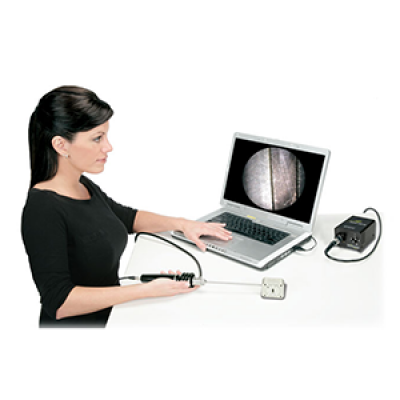

The Luxxor Portable Camera can be completely portable when paired with the Portable Video Monitor (PVM) with a single cable which allows the PVM to power the camera. You can also use the Luxxor Portable Camera in a benchtop configuration with a monitor or computer.
| Image Sensor: | 1/4" Color CCD |
| Lens: | Built in - 25mm Borescope coupler lens |
| Mount: | Quick release, ball bearing mount couples borescope securely to the camera. Attaches to any standard 32 mm diameter borescope eyecup. |
| Video Format: | NTSC |
| Resolution: | 768 x 494 pixels (520 TV lines) |
| S/N Ratio: | 48DB + |
| Min. Illumination: | 0.2 Lux at F / 1.2 (without borescope) |
| Shutter Speed: | 1/50 - 1/100,000 |
| Working Temperature: | 14°F to 113°F (-10°C to 45°C) |
| Power Supply: | 5 - 12 V DC, 80 mA |
| Output: | Standard Cable is RCA composite video or 12 PinHi-ROSE with portable video monitor. |
| Dimensions: | Length = 6.3" (160mm) Diameter, handle = 1.25" (32mm), Diameter, coupler lens = 1.75" (44.5mm) |
