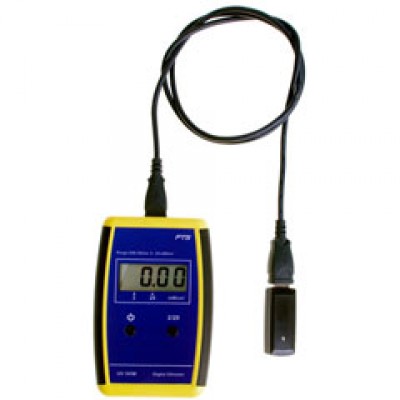

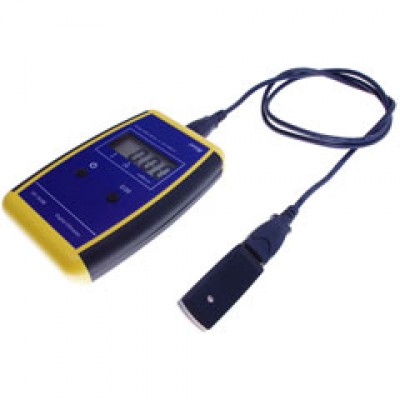

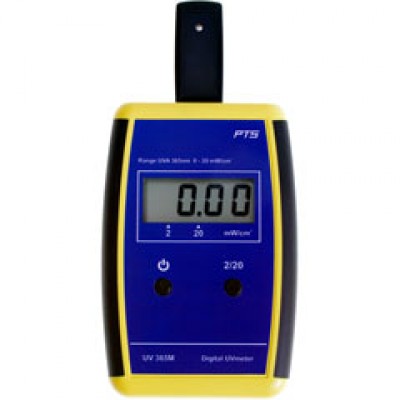

PTS Digital UV Radiometer UV 365M

PTS Digital UV Radiometer UV 365M

pts-uv365m-uv-meterpts-uv365m

The UV 365M UV Meter is specifically designed for measuring UV-C long wave ultraviolet energy (365 nm).

Features:

  • Highly stabile readings due to the improved temperature compensation circuit.
  • High measurement accuracy compared to other devices in the same class.
  • Preset narrow spectrum of ultraviolet radiation measured with a peak wavelength of 365 nm
  • Detachable sensor with the ability to connect directly to the device via an extension cable
  • Low power device saves battery life
  • Competitive price


Technical Specifications:

Measuring Range: 0 - 1,999 mW/cm2, 0 - 19.99 mW/cm2 (1mW/cm2 = 1,000 uW/cm2)
Resolution:
1 mW/cm2, 10 mW/cm2
Wavelength measured radiation / detector:
365 nm ± 2 nm, Accuracy: ± 5%
Sensor Type:
UV Photodiode
Range of Measurement Time:
0.4 seconds
Display:
LCD, 3.5 digit 13mm screen
Maximum Display:
"1999" indication can be seen on the device when exceeding the limit
Range Operating Temperature:
23 - 104°F (-5 - 40°C)
Humidity:
max. 82%
RH Power Supply:
9 Volt battery (type 6F22 or 6LR61)
Consumption:
1.2 mA
Control Device with Two Buttons:
Power ON / OFF switch and selecting the detection limit which are 1,999 mW/cm2 / 19.99 mW/cm2
Time of Continuous Operation on a single battery:
250 - 500 hours, depending on the type of battery
Auto Power Off:
approx. 5 mins after
Unit Dimensions:
3.1" x 4.6" x 1" / 79 x 118 x 25 mm
Cable Length - Extension of Sensor:
20 inches / 50 cm
Weight with the probe:
6 oz. 155 g
