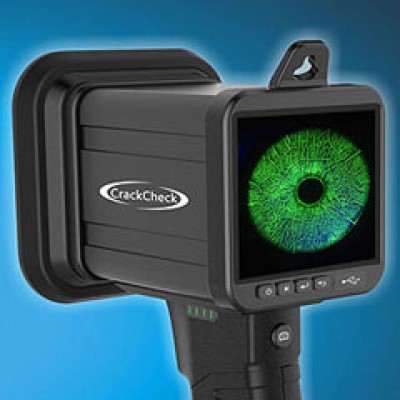

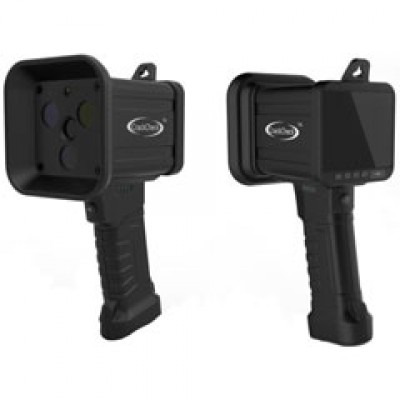

Phoenix PX-45C Series
Smart NDT LED UV Lamp
with built-in HD Camera
Meets Rolls-Royce RRES 90061 Requirements
ASTM E1417, ASTM E1444, ASTM E709, ASTM E2297, ASTM E3022 compliant.
THE PERFECT SOLUTION FOR DOCUMENTING FLUORESCENT INDICATIONS
Features:
 |  |  |
| Close-up image of PSM-5 Panel Indication (PT) | Close-up image of MTU-3 Block indication (MT) | MTU-3 Block Indication (MT) |
|

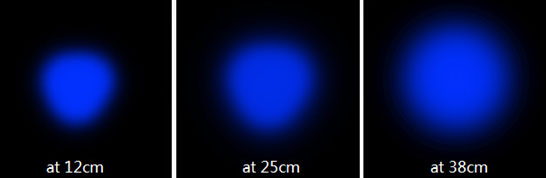

Uniform Beam even at close lamp to part distance

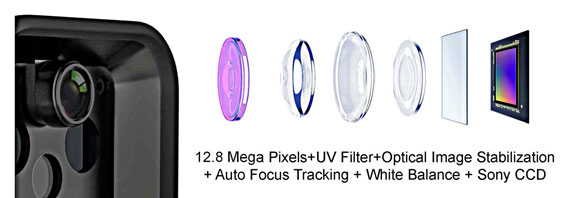

High Definition (HD) 12.8 Megapixel Camera

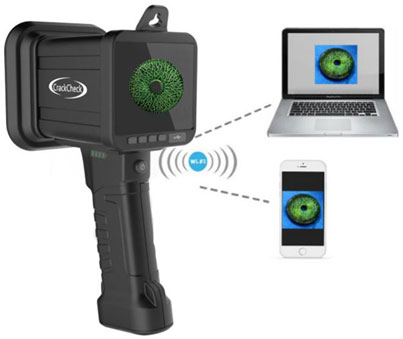

Data transmission via built-in WiFi or Micro-USB connection
Technical Specifications for Phoenix Series PX-45C and PX-45C Pro:
| LEDs: | 3 UV LEDs, 1 White Light LED |
| Intensity: | 4,500 µW/cm2 @ 15" (38cm) |
| Visible Light: | < 2 foot candles (5 Lux) |
| Wavelength: | 365 - 370 nm (365nm Peak) |
| Expected Lifespan: | 30,000 hours |
| Coverage Area: | 8" x 8" / 200 x 200 mm |
| Power Supply: | Battery and Mains Battery: 18650 Lithium battery (rechargeable) Mains: AC 110V-240V / 50Hz / single phase |
| Weight: | 1.9 lbs. (860g) |
| Cooling System: | Mechanical without fan |
| Battery: | 18650 Lithium Battery (2) (rechargeable) |
| Function: | Camera + Video with playback support |
| Camera: | HD 12.8 Megapixels |
| Display Screen Size: | 3 inches |
| White Balance: | Automatic white balance |
| Focus: | Auto focus system |
| Screen Resolution: | 720p x 720p |
| Touchscreen: | Capacitive screen, Multi-touch |
| RAM: | 8GB |
| Storage: | 32 GB SD Card |
| Data Transmission: | USB, WiFi, Bluetooth |
| Operating System: | 4.4 Android |
| Others: | Email, Calculator, Time, Display, Data Display, etc. |
| Compliance: | RRES 90061, ASTM E1417, ASTM E1444, ASTM E709, ASTM E2297, ASTM E3022, ISO9001 |
*Technical Specifications for Phoenix PX-45C Pro (only):

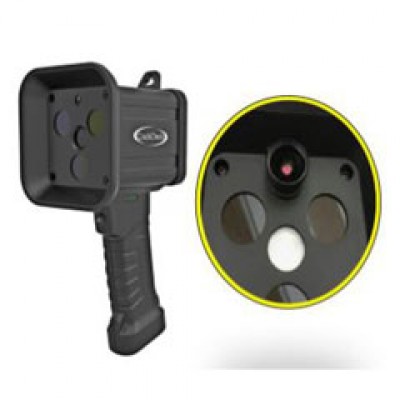

Interchangeable Lens and Filters: Meets demanding photographing needs.
(All other specifications are the same).
Phoenix PX-45C Standard and PX-45C Pro Lamp Kits Include:
|
