James Instruments, Inc. Cor-Map System
A simple economical method for identifying areas of probable rebar corrosion
Features & Benefits
An economical method for identifying areas of corrosion ASTM C-876.

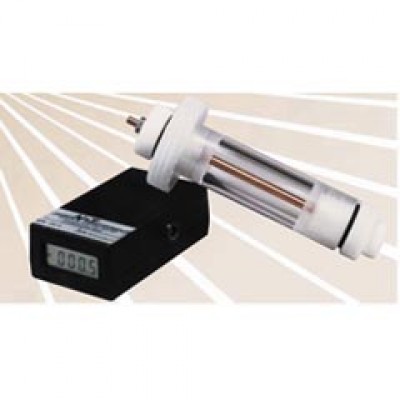

A high impedance voltmeter is connected between the reinforcing steel and a Cu-CuSO4 reference electrode on the concrete surface where a measurement can be made for the half-cell potential.
This measurement is of the probability of corrosion activity. By testing at a fixed distance apart, a grid of half-cell potentials can be developed and areas delineated.
Specifications

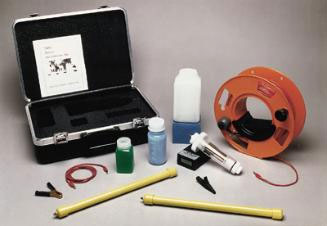

| C-CM-4500 | High Impedance voltmeter |
| C-CM-4410 | Electrode extension pieces each 18 inches (41 cm) long |
| C-CM-4400 | Reference electrode including copper sulphate reservoir |
| C-CM-4210 | Container of copper sulphate (capacity 250 ml) |
| C-CM-4220 | Wetting agent reservoir (capacity 125 ml) |
| C-CM-4420 | Dispensing spong |
| C-CM-4300 | Cable reel with 250 ft. (80 meter) cable |
| C-CM-4000 | Complete system |
