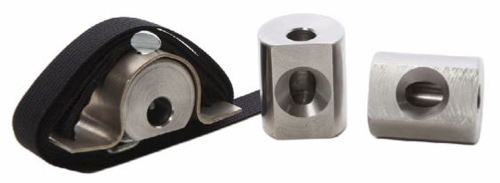

NDT Collimators
| SPEC Side Port 90 Degree Beam Angle Collimators | SPEC Panoramic 360 Degree Beam Collimators |
 |  |
| 5 Half Value Layers "Mini" Collimator (231001) Attaches to the end piece of the source tube and is able to fit into tight spaces. This is the most economical and versatile of all of our collimators. 11/2" Diameter x 17/8" Length; Weight: 1.75 lbs. Attenuation Factor Iridium-192 (3.125 x 10-2) 1/32 | 4 Half Value Layers Collimators Emits a 360 degree beam around the center and is shielded on the ends. This collimator is best used for taking shots of pipe welds, or tubulars from the inside. 11/2" Diameter x 31/2" Length; Weight: 1.75 lbs. Attenuation Factor Iridium-192 (6.25 x 10-2) 1/16 |
| 5 Half Value Slotted Collimator (231005) Attaches to the end piece of the source tube and is slotted to sit on the weld. The slot makes it easier to center the weld. 11/2" Diameter x 17/8" Length; Weight 4.25 lbs. Attenuation Factor Iridium-192 (3.125 x 10-2) 1/32 | 8 Half Value Layers Collimators Emits a 360 degree beam around the center and is shielded on the ends. This collimator is used for radiographing from the inside of pipes. 19/16" Diameter x 41/4" Length; Weight 2.5 lbs. Attenuation Factor Iridium-192 (3.9 x 10-3) 1/256 |
| 8 Half Value Layers Collimator (231002) Attaches to the end piece of the source tube. This collimator offers a greater amount of shielding and is still able to fit into small spaces. Best used in situations where distance from the source is a factor. 2" Diameter x 25/16" Length; Weight 4.25 lbs. Attenuation Factor Iridium-192 (3.9 x 10-3) 1/256 | 13.5 Half Value Layers Collimator Emits a 360 degree beam around the center and offers an even greater amount of shielding on the ends. This collimator is used to radiograph pipes from the inside. 21/4" Diameter x 8" Length; Weight 5.5 lbs. Attenuation Factor Iridium-192 (3.08 x 10-5) 1/3250 |
| 16 Half Value Layers Collimator (231006) Attaches to the end of the source tube. This collimator offers even greater shielding and it is much bulkier than the mini collimator. 3" Diameter x 32/5" Length; 16.75 lbs. Attenuation Factor Iridium-192 (1.54 x 10-5) 1/65000 |
The Advantages of Collimators
Collimators are one of the most effective means available for reducing the radiation levels on a job site. Collimators also increase the quality of radiography shots by reducing the amount of scatter radiation that reaches the film. Collimators help reduce your restricted area and aid in obtaining "As Low As Resonably Achievable" (ALARA) radiation levels. This translates into safer operating condition for radiographers.
Why Use Tungsten?
Because tungsten is a more effective shielding material than lead and is an easy-to-handle, non-licensed material, making it a very effective shielding material. Another feature of the tungsten collimator is that it does not spark, so it is ideal for plant operations. In addition to the standard collimators listed, SPEC can builed a collimator to your specifications.
