PH Tool Phased Array Cal Standard Blocks (PACS)

PH Tool Phased Array Cal Standard Blocks (PACS)

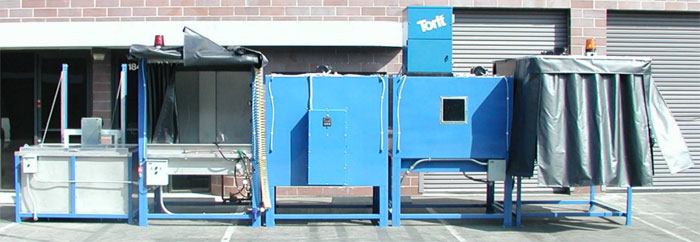

Universal Semi-Automated LPI System

universal-semi-automated-lpi-system

The Universal Semi-Automated Fluorescent Penetrant Inspection System has a control system that utilizes a pre-programmed PLC to control the timing sequences, cycle times and conveyor automation. This design provides the user with a long lasting, reliable system that permits quick and easy timing sequence changes and extremely easy operation.

Sequence of Operation:

Automated Penetrant Tank: Start process cycle with a push of a button. Features: timer controlled dip and dwell, followed by the part(s) being automatically sent via gear driven rollers through the automatic doors of the Automated Wash Booth.

Automated Wash Booth: An automated Wash Cycle begins after the doors have closed and since Touch-Up Wash is normally needed, an Audio/Visual Alarm informs the operator to return to the booth to perform the touch-up wash. When completed a push button actuates the gear driven rollers to index the part(s) through the automatic doors into the Parts Dryer.

Timer Controlled - Parts Dryer: At the end of the adjustable drying time, the automatic doors open and the gear driven rollers index the part(s) through the automatic doors of the Timer controlled Dry Developer Tunnel.

Time Controlled - Dry Developer Tunnel: A timer controls the formation of the Dry Developer Dust Cloud. Another timer controls the dwell time length. A final timer controls the evacuation of the excess Dry Developer Dust Cloud that may remain in the chamber of the tunnel via an industrial Dust Collector. After all this, the automatic doors open and the gear driven rollers index the part(s) into the Inspection Booth.

Inspection Booth: When the basket enters the Inspection Booth an Audible / Visual Alarm informs the operator to return and perform the high intensity blacklight lamp inspection on the part(s).

Product Literature

Description Part # Saved Price Select Option Add to

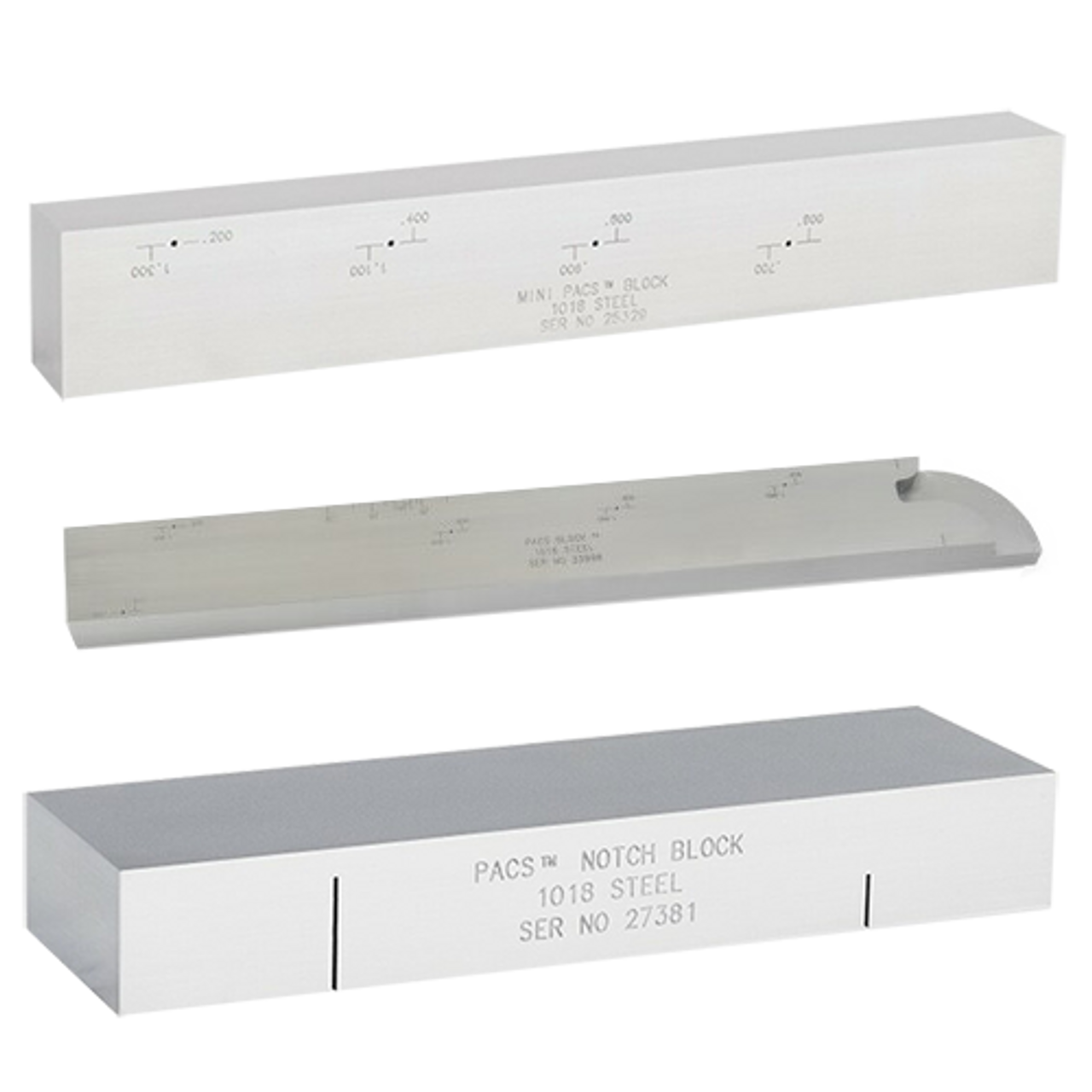

PACS Standard Blocks
PH Tool Phased Array Calibration Standard Block (PACS) (select material)
Model #
UT-PHT-PACS-1018-Master
$2,339.00
PH Tool Phased Array Calibration Standard Block (PACS) - Metric Version (select material)
Model #
UT-PHT-PACS-1018-M-Master
$2,690.00
PH Tool Wooden Case for PACS Block UT-PHT-PACS-CASE
$139.00
PH Tool Phased Array Calibration Standard Block (PACS) Dimensional Certificate (New Block) UT-PHT-PACS-CERT
$146.00
PH Tool Phased Array Calibration Standard Block (PACS) Dimensional Certificate (Recertification) UT-PHT-PACS-RECERT
$292.00

PACS AWS Version Blocks
PH Tool Phased Array Calibration Block (PACS), AWS Version (0.060" Holes) Inch (select material)
Model #
UT-PHT-PACS-AWS-1018-Master
$2,339.00
PH Tool Phased Array Calibration Block (PACS), AWS Version (0.060" Holes) Dimensional Certificate (New Block) UT-PHT-PACS-AWS-CERT
$146.00
PH Tool Phased Array Calibration Block (PACS), AWS Version (0.060" Holes) Dimensional Certificate (Recertification) UT-PHT-PACS-AWS-RECERT
$292.00

Mini PACS Block

PH Tool Mini Phased Array Calibration Standard (PACS) Block (select material)
Model #
UT-PHT-MINI-PACS-1018-Master
$1,244.00
PH Tool Mini Phased Array Calibration Standard (PACS) Wooden Case UT-PHT-MINI-PACS-CASE
$89.00
PH Tool Mini Phased Array Calibration Standard (PACS) Dimensional Certificate (New Block) UT-PHT-MINI-PACS-CERT
$113.00
PH Tool Mini Phased Array Calibration Standard (PACS) Dimensional Certificate (Recertification) UT-PHT-MINI-PACS-RECERT
$226.00

PACS Notch Block

PH Tool Phased Array Calibration Standard (PACS) Notch Block (select material)
Model #
UT-PHT-PACS-NOTCH-1018-Master
$2,740.00
Ph Tool Phased Array Calibration Standard (PACS) Notch Block Wooden Case UT-PHT-PACS-NOTCH-CASE
$82.00
PH Tool Phased Array Calibration Standard (PACS) Notch Block Dimensional Certificate (New Block) UT-PHT-PACS-NOTCH-CERT
$113.00
PH Tool Phased Array Calibration Standard (PACS) Notch Block Dimensional Certificate (Recertification) UT-PHT-PACS-NOTCH-RECERT
$226.00
