APF Silver Standard Service Inspection Plugs

APF Silver Standard Service Inspection Plugs

Industry Standard with Four Unique Backing Choices and a Variety of Sizes and Thicknesses

Overview

The traditional industry standard for X-ray screens with four unique backings and multiple sizes to choose from. Guaranteed Artifact-Free for greater accuracy, high absorption rate and optimized service life make the Warren Select Intensifying Screens a high quality choice.

Features

  • Guaranteed Artifact-Free for greater accuracy

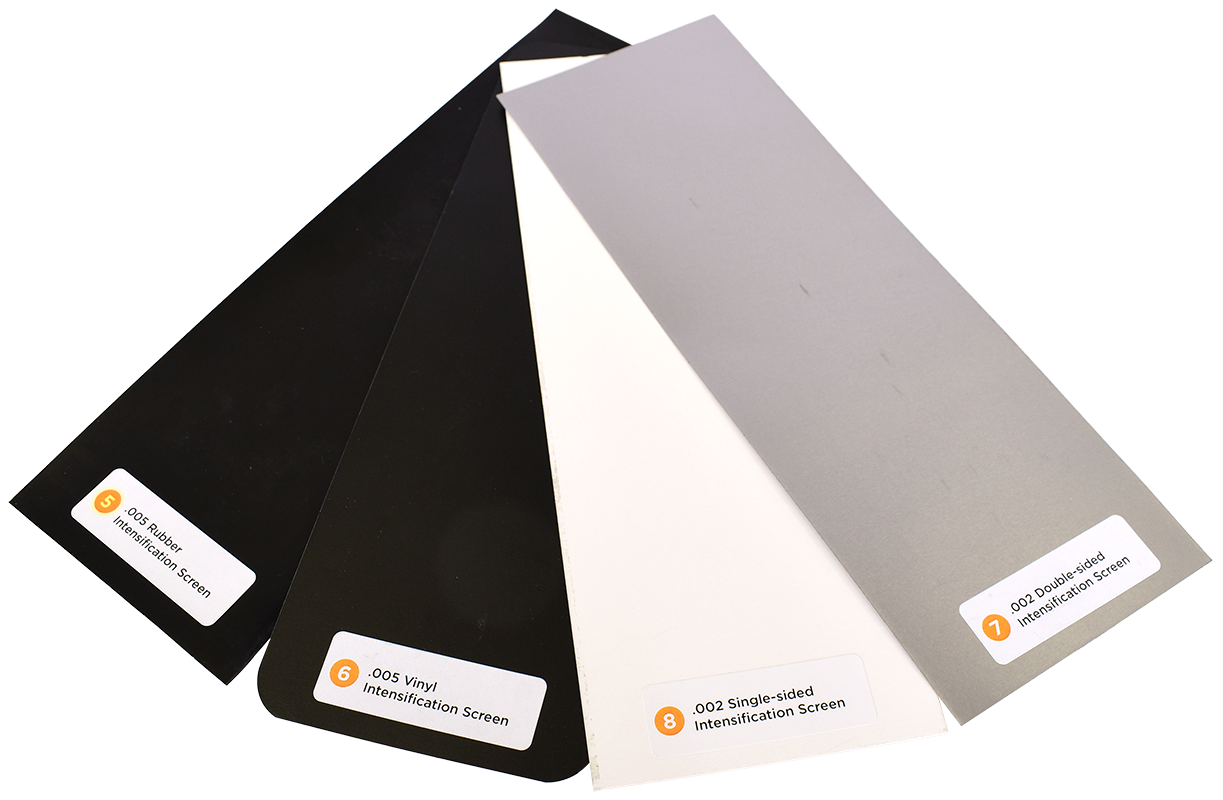

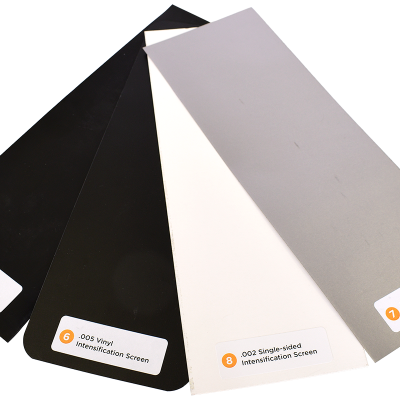

  • Available in Bristol, Rubber, Vinyl Backings and Two-Sided "Tween Screens" with Bristol, Rubber or Vinyl Cores
  • Triples film sensitivity and reduces exposure time for better contrast
  • High absorption rate reduces scatter and secondary radiation
  • Enviroseal® protective cover protects from scratching and oxidizing
  • Advanced assembly process optimizes screen service life
  • Available in thicknesses from 0.002" to 0.120" and cut-sheet sizes

Ordering Details

Please specify from the backing options listed below, as well as size, thickness and square or 1/2" radius cut when ordering. All Warren Select® products undergo an advanced assembly procedure in order to optimize screen service life. Available as cut screens only.

Note: $25.00 Crating Charge per box shipped.

Durable Bristol

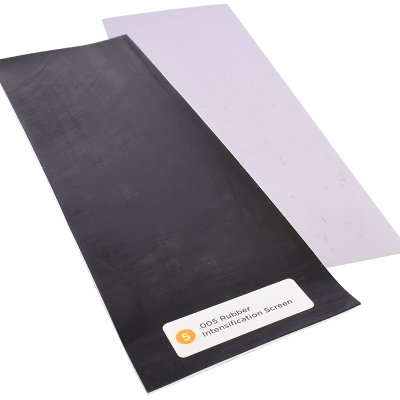

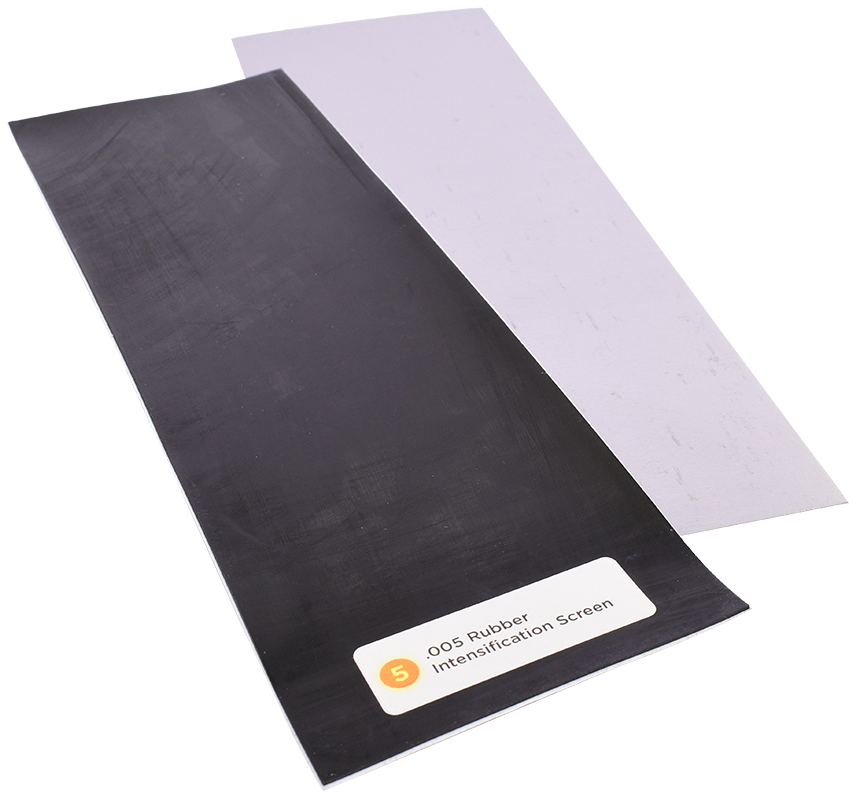

Flexible Rubber

Resilient Vinyl

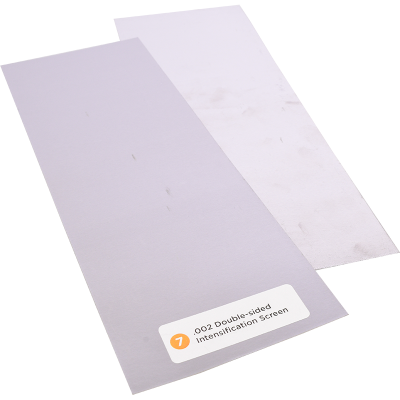

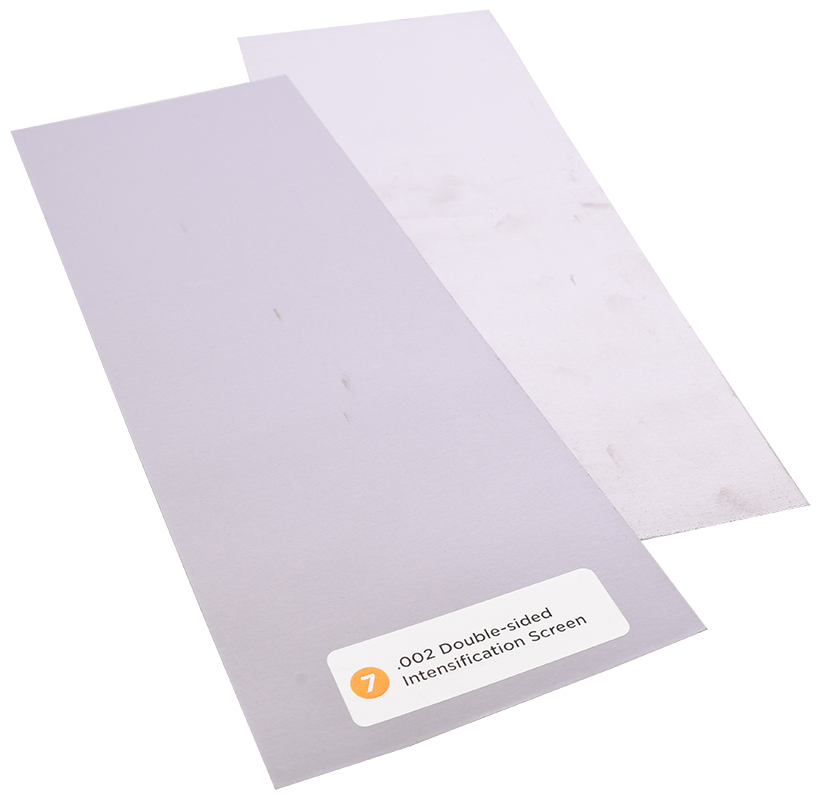

Two-Sided "Tween Screens" with Bristol, Rubber or Vinyl Cores

Standard Sizes and Thicknesses

Standard Sizes

  • 14" x 36"
  • 9" x 17"
  • 3.5" x 17"
  • 5" x 12"
  • 7" x 24"
  • 7" x 17"
  • 11" x 14"
  • 8" x 10"
  • 14" x 17"
  • 4.5" x 17"
  • 10" x 12"
  • 4.5" x 10"
Standard Thicknesses

  • 0.002"
  • 0.005"
  • 0.010"
  • 0.020"
  • 0.030"
  • 0.040"
  • 0.060"
Description Part # Saved Price Select Option Add to
1 3/4" Access Plug Flange Assembly, Flat Flange, Silver Silicone Access Inspection Plug w/Copper Sleeve. Temp Range: 33-600 °F (Select Flange Material)
Model #
CUI-APF-1111402-Master $12.00
1 3/4" Access Plug Flange Assembly, Contoured Flange, Silver Silicone Access Inspection Plug w/Copper Sleeve. Temp Range: 33-600 °F (Select Flange Material)
Model #
CUI-APF-1121402-Master $12.00
2 1/2" Access Plug Flange Assembly, Flat Flange, Silver Silicone Access Inspection Plug w/Copper Sleeve. Temp Range: 33-600 °F (Select Flange Material)
Model #
CUI-APF-1111403-Master $12.50
4" Access Plug Flange Assembly, Flat Flange, Silver Silicone Access Inspection Plug w/Copper Sleeve. Temp Range: 33-600 °F (Select Flange Material)
Model #
CUI-APF-1111404-Master $24.00
5" Access Plug Flange Assembly, Flat Flange, Silver Silicone Access Inspection Plug w/Copper Sleeve. Temp Range: 33-600 °F (Select Flange Material)
Model #
CUI-APF-1111405-Master $33.50
2 1/2" X 12" Access Plug Flange Assembly, Aluminum Flat Flange, Silver Silicone Access Inspection Plug w/Copper Sleeve. Temp Range: 33-600 °F CUI-APF-1111406 $47.00
