NDT Supply 6 mm UV Videoscopes
 |  |

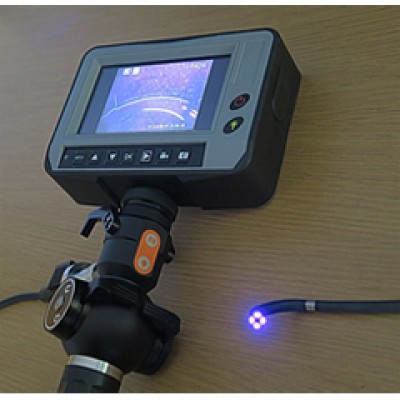

The UV Videoscope has both Visible - White Light and 365nm UV illumination making it an excellent inspection instrument. These scopes are available in 6mm diameter, and either 1 and 2 meter working lengths. They have 4-way articulation and Stainless-Steel Sheathing (Tungsten Sheathing is optional). The display is 4.5" TFT LCD for clear, sharp images with 800 x 640 Resolution. USB Storage of still photos in 640 x 480 jpg format, and video recording at 640 x 480 avi format.

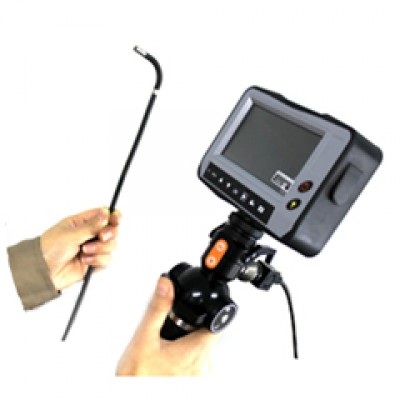

4-way Articulation
Camera and Optical System
| Model Number: | 6.0 UV |
| Diameter: | 0.24" / 6.0 mm |
| Rigid Portion: | 0.6" / 15.0 mm |
| Housing: | Steel Alloy |
| Field of View: | 90° |
| Direction of View: | Forward |
| Depth of View: | 0.4" - 2.0" / 10.0 - 50.0 mm |
| Illumination: | 4 White LEDs and UV Light Source |
| Image Sensor: | 1/10" color |
| Effective Pixels: | 450,000 |
| Photo Recording: | 640 x 480 jpg |
| Video: | 640 x 480 Avi |
| FPS: | 30 |
Display Unit
| LCD Panel: | 4.5" 16:9 TFT LCD |
| USB Connect: | Micro USB |
| Video Output: | TV Out (NTSC / PAL) |
| Recording Media: | SDHC Card, support 32 GB |
| Photo: | 640 x 480 jpg |
| Video: | 640 x 480 Avi |
| Power Source: | Lithium battery 4200mAh AC adapter: Input 100-240VAC 50/60Hz, Output 5VDC |
Operating Environment
| Operating Temperatures: | Distal end and insertion tube: 32°F-176°F (0°C-80°C) (for 0.15", 0.22" and 0.32" / 3.9, 5.5 and 8 mm camera) | |
| Other parts except for above: 32°F-104°F (0°C-40°C) | ||
| Operating Humidity: | 15 - 90% RH | |
| Waterproof: | Insertion tube | IP58 |
| Other parts | Not water proof construction | |

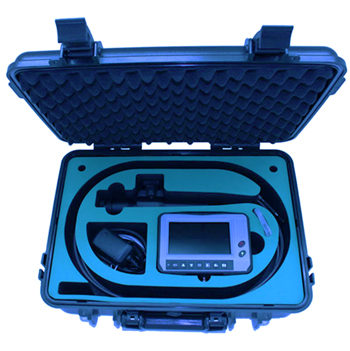

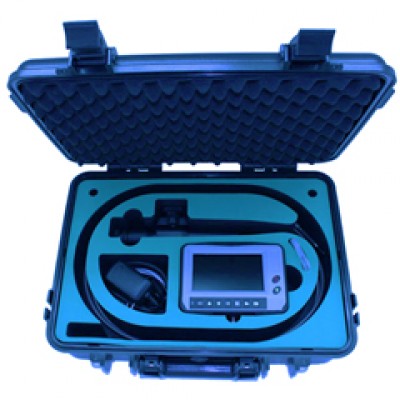

Kit Includes:
|
Note: Below prices include current U.S. Duties & Import Costs*.
*subject to change
