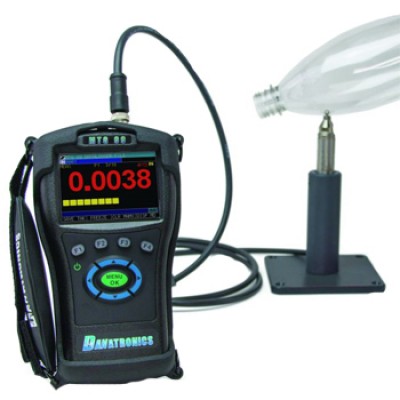

The MTG-99 is portable, battery operated and simple to use to non-destructively measure the thickness of any non-ferrous material up to 1" with access to both sides.
The new MTG-99B is an affordable model with all of the functionality of the MTG-99 without the internal datalogger. By using the standard USB port or with optional RS-232, footswitch or even Bluetooth, the thickness readings can easily be exported.
| General Specifications | |
| Overall Dimensions | 7.25" x 4.00" x 2.00" (184 x 101.6 x 50.8 mm) |
| Weight | 1.15 lbs. (.52 kg) with internal Li-Ion Battery |
| Operating Temperature | -4°F to 122°F (-20°C to 50°C) |
| Keypad | Illuminating rubber keyboard |
| Languages | English, French, German, Spanish, Italian, Russian, Czech, Finnish, Chinese, Japanese, Hungarian |
| Data Storage | Onboard & removable up to 32 GB MicroSD card |
| Battery Life | 16 hrs. (lithium-ion) (TBD) |
| AC Power Requirements | AC Mains: 100 - 120VAC, 200 - 240VAC |
| Display Type | 3.5" high resolution color TFT display, 320 x 240 pixels (1/4 VGA), sunlight readable, including multiple color palettes. |
| Backlight | Light Emitting Diode (LED) backlight. Includes variable light intensity |
| Display Dimensions | 2.76" x 2.07" x 3.5" (70.08 x 52.56 x 88.9 mm) |
| Min/Max Capture Mode | Captured at 60Hz measurement rate |
| Display Formats | 4 modes; Thickness only, Thickness with 3 additional customizable choices; Thickness with Strip chart, Grid View |
| Display Update Rate | 4, 8, 16 and 20 Hz |
| Alarm | High and Low alarms with vibrate feature |
| Thickness Range | 0.0001" to 1" (0.001 - 25.4 mm) of any non-ferrous material with access to both sides |
| Resolution | 0.01" (0.1 mm), 0.001" (0.01 mm), 0.0001" (0.001 mm) depending on thickness range |
| Data Logger | Internal file-based alphanumeric data logger |
| Memory Card | Maximum Capacity: 32 GB removable MicroSD memory card |
| Shutoff | Selectable 1 -31 minutes or "Never" shut off |
| Environmental Testing | IP67 |
| Inputs/Outputs | |
| USB 2.0 | peripheral port |
| RS-232 | (optional) |
| Bluetooth (optional) | Send and receive readings and files via Bluetooth Available on iPhones, Androids, iPads and tablets via the App store or Google Play |
| Probe | |
| PR-1 | Standard straight probe 3.25" (82.75 mm) long and 0.827" (21 mm) diameter |
If a footswitch is required for the use of the instrument, the modification to accommodate a footswitch must be purchased with the instrument (UT-DM-TG-FS). Footswitch sold separately.
