ICM SiteX CP200D
New Generation of Portable Constant Potential X-Ray Units
 | Best Ever Design The SiteX CP200D has been designed to revolutionize the handling and the performance of portable x-ray sets. Despite cutting the weight by one half of the typical 200 kV X-Ray tubes, the SiteX CP200D contains:
|
| Key Features:
| Performance While the SiteX CP200D weighs only 26.4 lbs. (12 kg), it is still extremely powerful and is capable of penetrating 1.7" (42 mm) of steel in just 10 minutes! ICM's un-paralleled air cooling system combined with the CP output means a 100% duty cycle at 86°F (30°C) ambient temperature. The CP200D can be operated worldwide, accepting input from 90 to 264 VAC! It also works efficiently with portable generators and even 12 and 24 Volt car batteries (with an appropriate extra converter), thanks to its very low current train. Finally, its low power consumption will ensure that your inspections are more environmentally friendly. |
 | There's More... The SiteX CP200D comes equipped with a number of intuitive yet exclusive user-friendly functions that you can benefit from every day.
|
| Technical Specifications | Units | CP200D |
| Output kilovolt range: | kV | 10 to 200 |
| Tube milliamps range: | mA | 1 to 10 |
| Maximum anode power dissipation: | Watt | 900 |
| Tube current at 200 kV: | mA | 4.5 |
| Tube current and kilovolt stability: | % | <0.5% |
| Duty cycle at 30°C ambient temperature (*): | % | 100 |
| Steel penetration at maximum kV and power (**): | mm Fe | 42 |
| Total weight (excluding hand rings): | kg | 12 |
| Overall dimensions (excluding hand rings) | mm | Ø140 x 715 |
| Leakage dose at 1 m at full output: | mSv/h | 2.0 |
| Dimensions of optical focal spot: | mm | 3.0 (-1.5 IEC 336) |
| Maximum useful angle of X-ray directional beam: | (') | 60 x 40 elliptical |
| Tube inherent filtration: | mm (Be) | 0.8 |
| Weather protection: | " | IP65 |
| Working temperature range: | °C | -30 to 60 |
| Storage temperature range: | °C | -40 to 70 |
| Standard length of interconnecting cable (extendable): | m | 20 |
| Maximum interconnecting cables extension - 20 m in length: | m | 100 (5 x 20m) |
| Connectors & sockets systems MIL-DTL 26482 Series 1 | " | Cadmium plated Aluminum |
| Constant power mode: | " | yes |
| Axial or radial positions switchable socket: | " | yes |
| Built-in fail-safe 'X-ray energized' warning red flashing light: | " | yes |
| On board real-time clock ensuring a full automatic warm-up: | " | yes |
| Built-in carrousel featuring two diaphragms, shutter and laser pointer: | 8 mm Pb shutter, laser pointer, 0.8 mm Be filter 3 mm Aluminum filter, 10 x 48 cm diaphragm | |

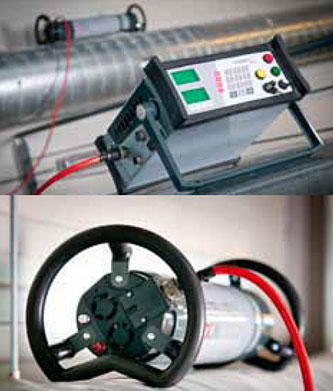

The SiteX CP200D works in conjuction with the "Powerbox" 7.9 kg control unit (see specific documentation)
 |  |
| Dimensions:
|  |
