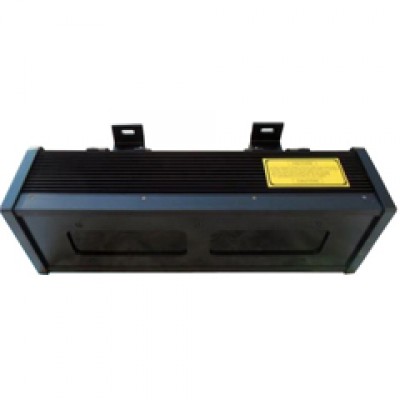

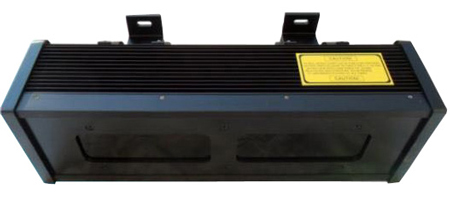

FN-365 Series Overhead LED UV Lamp
Affordable Super UV-A Wide Area Inspection Lamp
For MPI machines and LPI wash stations and inspection booths

illuminates 20" x 14" (500 x 350mm) area - uniformly

spot

Features:


  • Standard model FN-365/12 UV LED Panel consists of 12 LEDs and produces a maximum intensity of 4,500 µW/cm2 at 15" (38 cm), and almost no visible light.
  • 100% solid state electronic circuitry ensures proper working operation even in a strong magnetic field
  • Safe, pure 365nm UV-A output without UV-B and UV-C
  • Unique mechanical cooling system keeps LEDs cool to maintain optimum light and output during extended use
  • Easily mountable for overhead inspection or in-line applications, and its moving chain design makes the coverage area even larger.
  • Uses optical glass lens which will not decay after long time use
  • IP65 compliant. ASTM compliant.
  • Expandable! The lamp units can be connected together end-to-end or side-by-side to provide an even wider coverage area to meet your specific inspection requirements.



Compliance: (ASTM E1417; ASTM E1444; ASTM E165; ASTM E2297; ASTM E3022; ASTM E3024)

Technical Specifications:

Model #: FN-365/12
UV LEDs: 12x
UV-A Intensity @ 15" (µW/cm2): 4,500
Visible Light (in dark room): ≤ 0.5 ft. candles (≤ 5Lux)
Peak Wavelength: 365 - 370 nm
Coverage Area @ 15" 20" x 14" (500 x 350 mm) above 1,000 µW/cm2
Working Voltage: 110 - 220 VAC, 50 - 60Hz
Power: 36W (UV)
Max Housing Temperature: <111.2°F (44°C)
Dimensions: 17.3" x 5.9" x 4.3" (44 x 15 x 11 cm) (LxWxH)
Weight: 13 lbs. (5.9* kg)
Warranty: 1 year


Intensity vs. Coverage:

Model 15" (Intensity) 15" (Coverage Area) 25" (Intensity) 25" (Coverage Area) 30" (Intensity) 30"
(Coverage Area)		 35" (Intensity) 35" (Coverage Area)
FN-365/12 4,820 µW/cm2 17.7"x8.3"
(450x210mm)		 2,700 µW/cm2 12.56"x11.8"
(320x300mm)		 2,027 µW/cm2 11.8"x13"
(300x330mm)		 1,520 µW/cm2 9.45"x15.35"
(240x390mm)


fi-ndt-365-12-top-intensity-table

Note: Below prices include current U.S. Duties & Import Costs*.

*subject to change

Product Literature

Description Part # Saved Price Select Option Add to

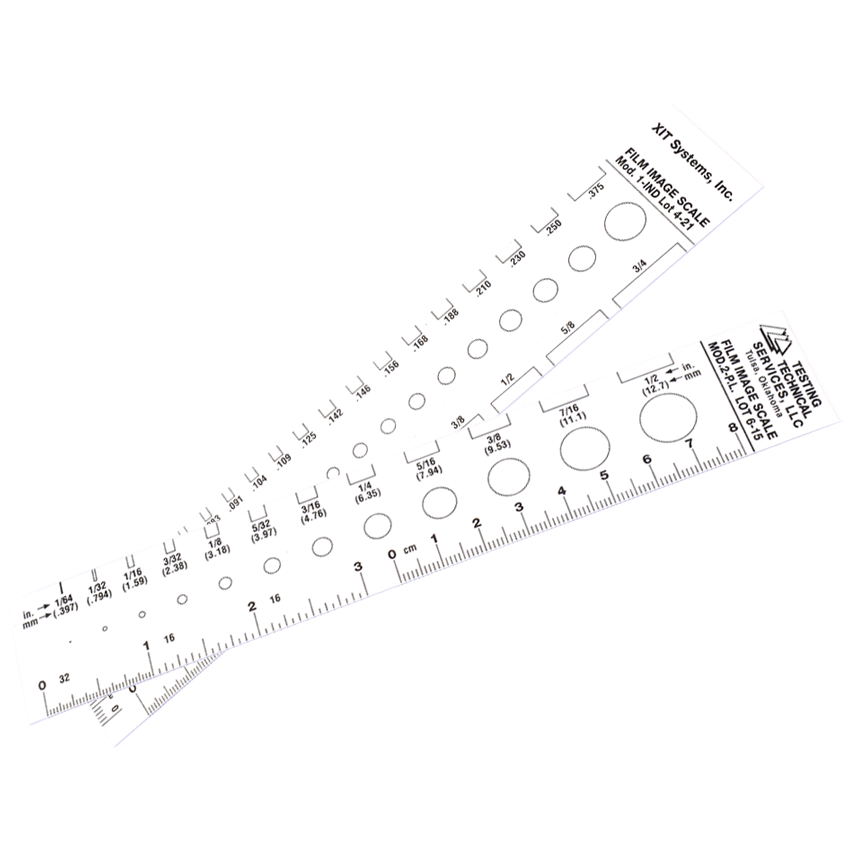

Film Image Scale for ASME (pack of 3) RT-VT-MOD.1-IND-03
$65.00
Film Image Scale for API (pack of 3) RT-VT-MOD.2-PL-03
$65.00
Film Image Scale for ASME (Pack of 5) RT-VT-MOD.1-IND-05
$90.00
Film Image Scale for API (Pack of 5) RT-VT-MOD.2-PL-05
$90.00
