CHiNDT Titan UV LED Panels
Features:
| | - 100% solid state circuitry ensures that it works properly in strong magnetic fields.
- Wavelength: 365 - 370nm with expected lifespan of bulbs at 50,000 hours.

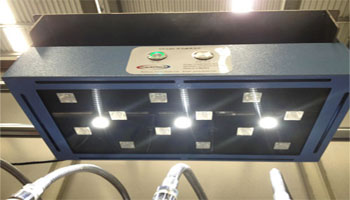

- Switch function between UV Light and White Light
- Instant maximum output without pre-heating
- The lamps offers a standard intensity version with an intensity of 4,000 µW/cm2 at 15" (38 cm) with almost no visible white light.

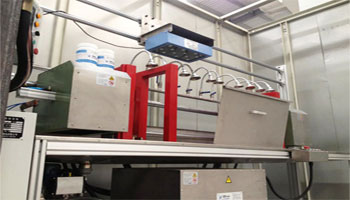

- The Titan 12 is expandable, the units can be connected together longitudinally or back-to-back to provide an even wider coverage area to meet your specific inspection requirements.
- Unique mechanical cooling system that keeps the LEDs cool to maintain optimum light output during extended use.
- IP-65 compliant
- Safe and pure UV-A content with no UV-B or UV-C content
|

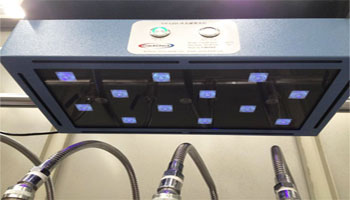

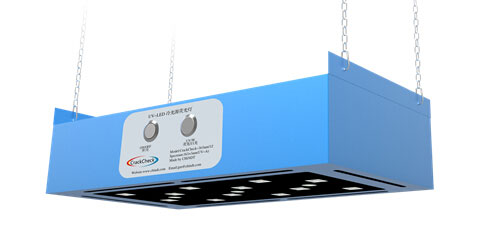

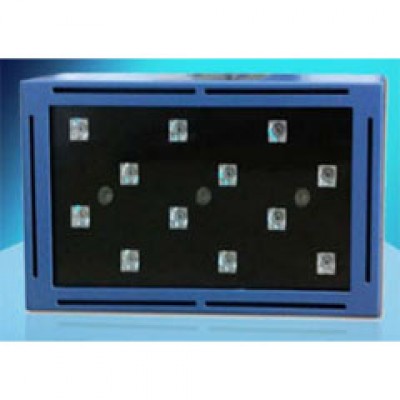

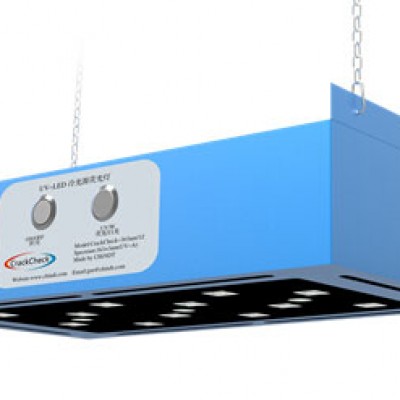

CrackCheck Titan 12:
| • | 12 UV LEDs and 3 white light LEDs |
| • | Standard UV Intensity: 4,000 µW/cm2 @ 15" |
| • | Wavelength: 365 - 370 nm |
| • | Visible Light: < 1 foot-candles (10 lux) |
| • | Power Supply: 110 - 240 VAC, 50 / 60 Hz single phase |
| • | Warranty: 12 months |
| • | Irradiation area: 17" x 10" / 420mm x 260mm |
| • | Lifespan: 50,000 hours |
| • | Dimensions: 17" x 9" x 3.5" / 430 x 235 x 90 mm |
| • | Weight: 13.5 lbs. / 6.1 kg. |
