Note: This product has been discontinued, the replacements are:
Centurion NDT Conductivity Standards
Certified Individual Conductivity Standards
| NDTS Part # | Centurion NDT Part # | Description |
| CM-CNDT-220511 | 220511 | Accessory, Conductivity Standard, Aluminum Bronze (8 %IACS) |
| CM-CNDT-220509 | 220509 | Accessory, Conductivity Standard, Phosphor Bronze (17 %IACS) |
| CM-CNDT-220508 | 220508 | Accessory, Conductivity Standard, Beryllium Copper (22 %IACS) |
| CM-CNDT-220507 | 220507 | Accessory, Conductivity Standard, Naval Brass (26 %IACS) |
| CM-CNDT-220506 | 220506 | Accessory, Conductivity Standard, Aluminum (30 %IACS) |
| CM-CNDT-220513 | 220513 | Accessory, Conductivity Standard, Aluminum (34 %IACS) |
| CM-CNDT-220505 | 220505 | Accessory, Conductivity Standard, Aluminum (38 %IACS) |
| CM-CNDT-220514 | 220514 | Accessory, Conductivity Standard, Aluminum (44 %IACS) |
| CM-CNDT-220504 | 220504 | Accessory, Conductivity Standard, Aluminum (46 %IACS) |
| CM-CNDT-220502 | 220502 | Accessory, Conductivity Standard, Aluminum (53 %IACS) |
| CM-CNDT-220501 | 220501 | Accessory, Conductivity Standard, Aluminum (59 %IACS) |
| CM-CNDT-220500 | 220500 | Accessory, Conductivity Standard, Copper (101 %IACS) |

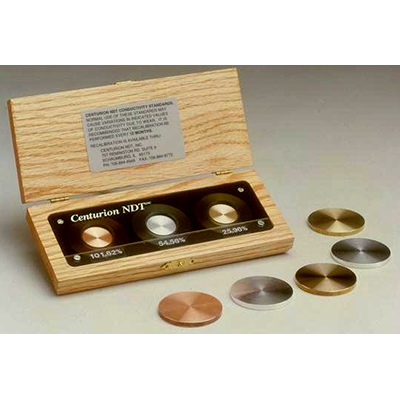

Conductivity standards are available in any combination of the following values up to 3 per set: 8, 17, 22, 26, 30, 34, 38, 44, 46, 53, 59 and 101% IACS, nominally.

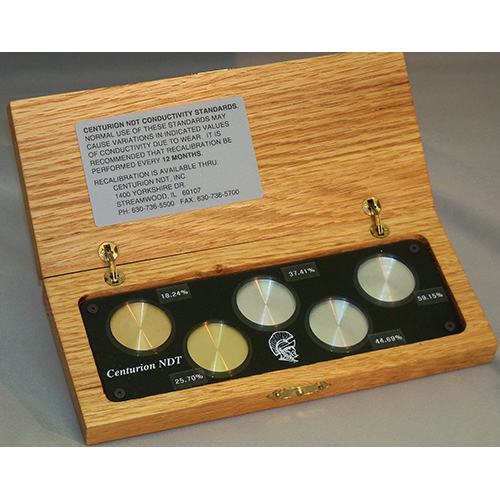

Certified 5 Conductivity Standard Set Includes:
| Description |
| Accessory, Conductivity Standard, Phosphor Bronze (17 %IACS), 2" Diameter (Part #: 225624) |
| Accessory, Conductivity Standard, Naval Brass (26 %IACS), 2" Diameter (Part #: 225623) |
| Accessory, Conductivity Standard, Aluminum (39 %IACS), 2" Diameter (Part #: 225622) |
| Accessory, Conductivity Standard, Aluminum (46 %IACS), 2" Diameter (Part #: 225621) |
| Accessory, Conductivity Standard, Aluminum (59 %IACS), 2" Diameter (Part #: 225620) |
The limits of permissible errors are ± .35% IACS or 1% of value, whichever is less, at 68°F (20°C) and frequencies from 60 to 200 kHz (NIST traceable).
Availabe in a set of 3 with case, set of 5 with case or as individual standards. Case is also sold separately.
