Quality Optics at a Great Price, In our most popular lengths and diameters!

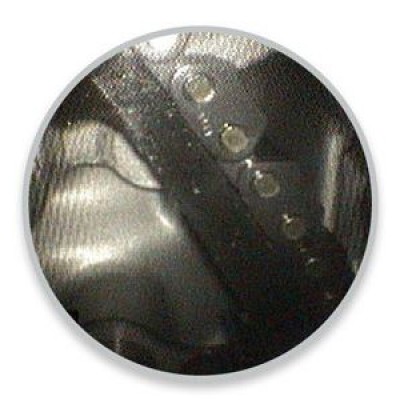

Excellent Image Resolution, Sharpness & Contrast

Hawkeye Pro Flexible Borescopes incorporate an 18,000 fiber, acid-leached imaging bundle, delivering truly excellent image resolution, sharpness, detail, and contrast. Lower cost alternatives do not deliver image quality nearly this high.

Pro Flexibles are offered in either 2- or 4-way articulation! Control the direction-of-view (DOV) of the tip over a 300° range (± 150°) using a thumb lever on the aluminum borescope body. The lever can also be locked to hold a particular view.

The Hawkeye Pro Flexible sets a new standard of excellence in quality, at a very reasonable price.



Products Outside Diameter Length Articulation DOV FOV Fibers Sheath Model #
Pro Flexible 3mm Kit 0.130" (3.3 mm) 33.5" (0.85 m) 2-way 0° 45° 18,000 Tungsten PFB3-NVK
Pro Flexible 4mm Kit 0.157" (4 mm) 33.5" (0.85 m) 2-way 0° 45° 18,000 Tungsten PFB4-NVK
Pro Flexible 5mm Kit
Includes 90° Mirror Tip		 0.200" (5 mm) 33.5" (0.85 m) 2-way 0° 45° 18,000 Tungsten PFB5-NVK
Pro Flexible 6mm Kit 0.236" (6 mm) 33.5" (0.85 m) 2-way 0° 45° 18,000 Tungsten PFB6-NVK
Pro Flexible 6mm x 4 Kit 0.236" (6 mm) 33.5" (0.85 m) 4-way 0° 45° 18,000 Tungsten PFB6-4-NVK
Pro Flexible 3mm Borescope 0.130" (3.3 mm) 33.5" (0.85 m) 2-way 0° 45° 18,000 Tungsten PFB3
Pro Flexible 4mm Borescope 0.157" (4 mm) 33.5" (0.85 m) 2-way 0° 45° 18,000 Tungsten PFB4
Pro Flexible 5mm Borescope Includes 90° Mirror Tip 0.200" (5 mm) 33.5" (0.85 m) 2-way 0° 45° 18,000 Tungsten PFB5
Pro Flexible 6mm Borescope 0.236" (6 mm) 33.5" (0.85 m) 2-way 0° 45° 18,000 Tungsten PFB6
Pro Flexible 6mm X 4
Borescope		 0.236" (6 mm) 33.5" (0.85 m) 4-way 0° 45° 18,000 Tungsten PFB6-4

Technical Specifications

Pro Flexible Borescope Specifications

Optics
Direction-of-View: 0.13" (3.3mm) and 0.16" (4mm) - 0° only; 0.24" (6mm) - 0° with optional 9° adapters
Field-of-View: All models - 45° FOV
Depth-of-View: 0.13" (3mm) scope - 0.4" - 2" (10 - 50mm)
0.16" (4mm) scope - 0.4" - 2" (10 - 50mm)
0.24" (6mm) scope - 0.4" - 2" (10 - 50mm)
Distal Focus:   Fixed focus lens set.
Mechanical
Tube Diameter: PFB3 - 0.12" (3.3mm), PFB4 - 0.16" (4mm), PFB6 - 0.24" (6mm)
Working Length: 33.5" (850mm)
Insertion Tube Bend Radius: PFB3 - 1.25" (31.75mm)
PFB4 - 1.25" (31.75mm)
PFB6 - 1.75" (44.45mm)
Articulation: PFB3 - 2-way,+/- 130°, PFB4 - 2-way, +/- 150°, PFB6-4 - 4-way, +/- 150°
Tube Construction: Stainless Steel monocoil inside watertight PVC, covered with tungsten braid.
Environmental
Operating Temperature: 0° to 170°F (-18° to 77°C)
Watertight Insertion Tube: Up to 1 atm / 1 bar (14.7 psig); approx. 30 ft. water depth
Note: The handpiece is splash proof only.

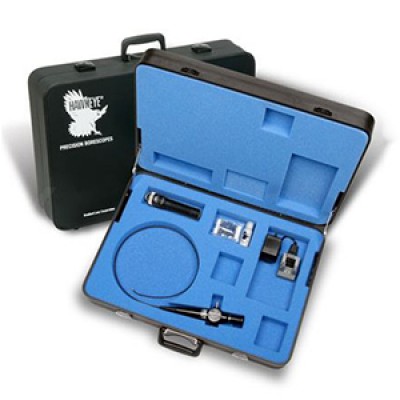

Hawkeye Pro Flexible Borescopes Kit Includes:

  • Pro Flexible Precision Borescope

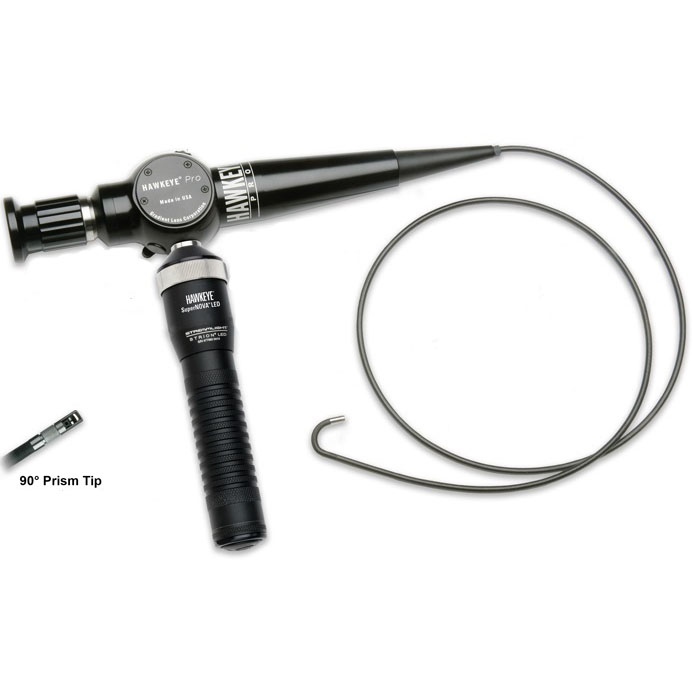

  • Pro Flexible 90° Mirror Tip - 0.20" (5.0mm only)
  • Mirror Tube
  • SuperNOVA LED Light and Charger
  • Carrying Case
  • Cleaning Kit

Product Literature

Description Part # Saved Price Select Option Add to
Insight Vision Opticam Min-Reel System, 150 ft. Reel, Including: Accessory bag, 1” and 2” skids, 16GB USB stick, debris bag, manual, power cord, car adapter, interconnect cable, S-tool RV-IV-203005
$6,925.00
Insight Vision Standard Opticam System, 200 ft. Reel, Including: Accessory bag, 2” and 3” skids, 8GB USB stick, debris bag, manual, power cord, car adapter, interconnect cable, S-tool RV-IV-203001
$7,365.00
Insight Vision Standard Opticam System, 300 ft. Reel, Including: Accessory bag, 2” and 3” skids, 8GB USB stick, debris bag, manual, power cord, car adapter, interconnect cable, S-tool RV-IV-203002
$7,805.00
Insight Vision Standard Opticam System, 400' Reel, Including: Accessory bag, 2” and 3” skids, 8GB USB stick, debris bag, manual, power cord, car adapter, interconnect cable, S-tool RV-IV-203003
$8,245.00
Insight Vision 12 Volt M18 Battery Adapter (Adapter Only) RV-IV-200035
$227.00
Insight Vision 15 Volt M18 Battery Adapter (For Older Systems - Not Compatible with Current Version) RV-IV-200036
$227.00
Insight Vision Converter: Dewalt 20V to M18 RV-IV-125004
$67.00
Insight Vision Rolling Centering Skid (recommended for 6”-14” diameter pipe) RV-IV-178020
$459.00
Insight Vision Locator 512Hz with Case RV-IV-553008
$1,720.00
