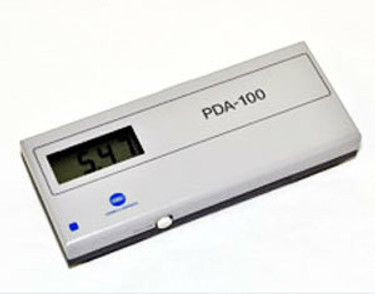

NDT Konica-Minolta PDA-100

NDT Konica-Minolta PDA-100

HID Micro-discharge Lamps Feature: Low Mercury Content, Long Life, Low Power Consumption and High Output

FL-3 UV Flashlight

The worlds most powerful UV Flashlight

HID Micro-discharge Lamps Feature: Low Mercury Content, Long Life, Low Power Consumption and High Output

Features:

  • Uses state-of-the-art high intensity 24W HID Bulb*
  • Warms up to full brightness in seconds
  • Not effected by magnetic fields - Highest intensity 14,000 µw/cm2@ 15"
  • Low white light emission allowing inspections in high ambient light conditions*
  • Rechargeable lithium ion battery
  • Quick recharge
  • Heavy duty aluminum IP-65 weatherproof casing
  • Easy to carry
  • Charge from any source, 110/220 or with car adapter (DC 12V)
  • 3 hours and 30 minutes operating time on fully charged battery

Specifications:

  • Size: 3" (78 mm) diameter x 15.35" (39 cm) long
  • Weight: 25 oz / 49 oz with batteries / 720g / 1300g with batteries
  • Lamp: 24W Discharge (HID) DUV Lamp
  • Lamp Life: Nominal 800 hrs.
  • UV Lamp Intensity: 14,000 µw/cm2 @ 15"
  • UV Wave Length: 365 nm
  • Battery: Rechargeable Lithium Ion Battery Pack
  • Battery Life Span: > 500 recharges
  • Power Consumption: 3 hours and 30 minutes of continuous operation
  • Charger: 110/220 VAC or 12V Car Charger
  • Housing: Aluminum Weather-Proof Casing

Perfect for: NDT, Leak Testing, Security, Contamination, Forensics, Art and other applications requiring portability and high intensity UV illumination.

Precautions:

  • Do not look directly into the lamp
  • Wear UV filtering eye goggles
  • Do not touch the filter glass until cooled
  • Do not let hot filter glass get wet


*Some inspection codes require ambient light levels to be limited to specific maximum levels. Follow your code requirements and restrictions
.

Includes:

  • 1 ea. - 110/220 VAC Universal Charger
  • 1 ea. - Adapter
  • 1 ea. - Main body with battery
  • 1 ea. - Rubber Ring
  • 1 ea. - ABS Plastic Protective Case
  • 1 ea. - Carry Strap and Hardware
keiyu-fl3-kit

Optional Accesories:

  • Spare lamp
  • Spare UV Filter
  • Spare Lithium Ion Battery
Description Part # Saved Price Select Option Add to
NDT Konica-Minolta PDA-100 RT-SM-PDA100 Request Pricing
