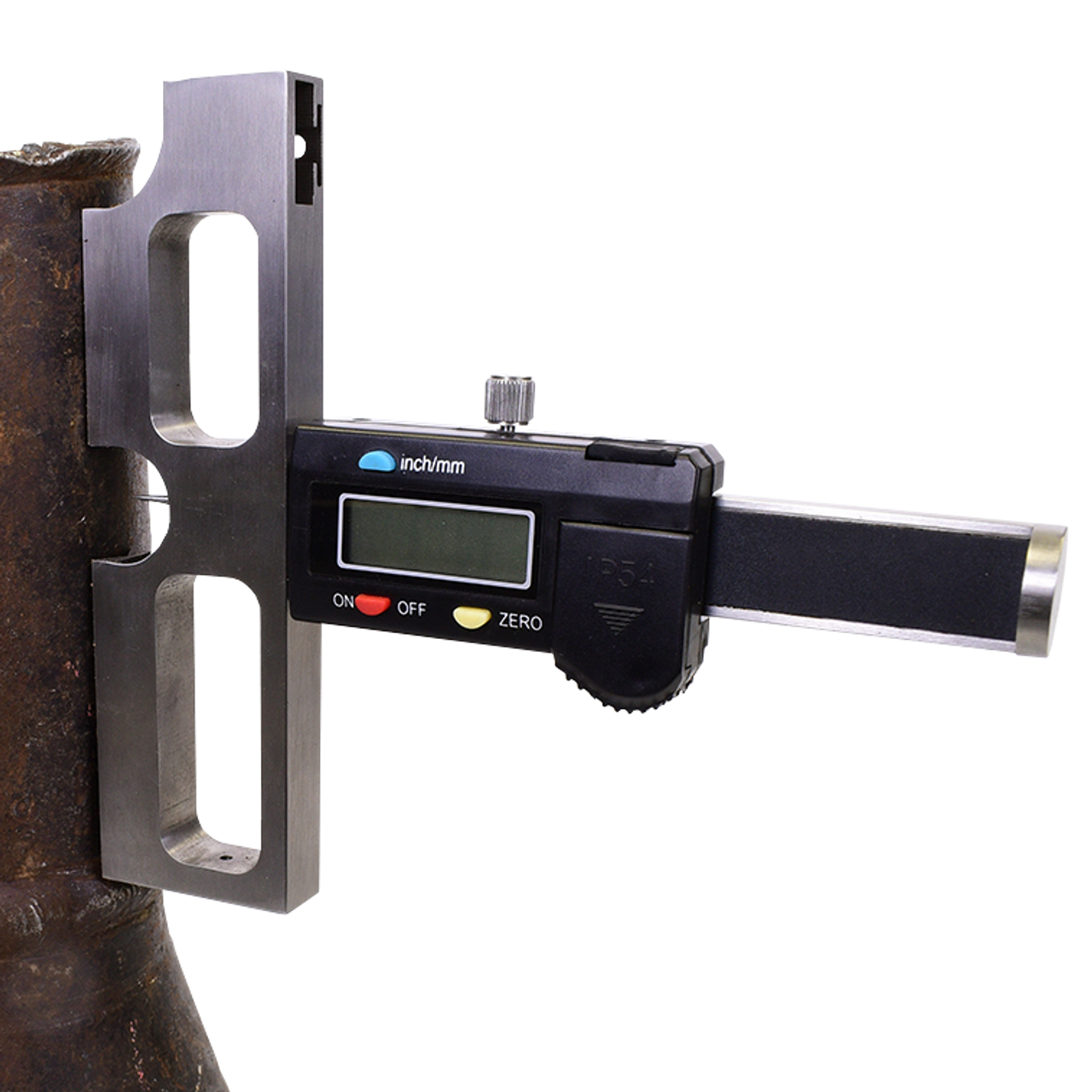

NDT DPG-4M Pit Gauge & Magnetic "V" Groove Base

NDT DPG-4M Pit Gauge & Magnetic "V" Groove Base

Spring Loaded Digital Pit Gauge with 3 Bases: Magnetic 4 7/8" V-Groove Base, 4 7/8" Knife Edge Base both with Center and Cantilever Positions, Standard 2 3/8" Knife Edge Base

Measure Any Position Accurately

The DPG-4M is the new and improved spring loaded digital pit gauge featuring an exchangeable magnetic 4 7/8" V-groove base with center and cantilever positions in addition to two knife edge bases: the standard 2 3/8" long base and a 4 7/8" long base with two positions. With the magnetic V-groove base you can easily hold the gauge in any vertical, flat or overhead position, and the three bases ensure maximum versatility. Simple to use, the DPG-4M is water resistant and made of hardened stainless steel, producing accurate measurements of surface pits, gauges, dents, undercuts and more. Only 0.050" in diameter, the probe can access even the smallest pits.



Magnetic V Groove Base Demonstration

Two Knife Edge Bases Demonstration

Features

  • Magnetic 4 7/8" V-Groove Base with center and cantilever positions that holds the gauge in any position - vertical, flat, or overhead
  • 2 Exchangeable Knife Edge Bases: Standard 2 3/8" long base and a 4 7/8" long base with center and cantilever positions
  • IP54 protection level for water spray, dust, etc.
  • Accuracy of +/- 0.001"
  • Can measure up to a 1.18" depth
  • Made of hardened stainless steel
  • Spring Loaded, 0.050" diameter probe
  • Can zero at any position
  • Button to switch between inches and mm
  • 1 Year Limited Warranty

Technical Specifications

DPG-4M Digital Pit Gauge Specifications

Resolution 0.0004" (0.01 mm)
Range 0-1.18" (0-30 mm)
Accuracy 0.001" (0.03 mm)
Protection Level IP54
Measuring Speed ≤ 1.5 m/sec.
Standard Knife Edge Base Size 2 3/8" Long
Two Position Knife Edge Base Size 4 7/8" Long with Center and Cantilever Positions
Two Position Magnetic V-Groove Base Size 4 7/8" Long with Center and Cantilever Positions
Working Temperature 0-40 °C
Working Relative Humidity ≤ 80%
Storage Temperature -10-60 °C
Power One Button 1.55 V Battery

Kit Includes

  • Spring Loaded Digital Pit Gauge
  • Standard 2 3/8" Knife Edge Base
  • Two Position 4 7/8" Knife Edge Base
  • Two Position 4 7/8" Magnetic V-Groove Base
  • Two Sets of Attachment Screws
  • Hard Storage Case

The DPG-4M Includes a 1 Year Limited Warranty

Product Literature

Description Part # Saved Price Select Option Add to
Test DPG-4M Digital Pit Gauge with Magnetic Two Position 4 7/8" V-Groove Base, Standard 2 3/8" Knife Edge Base, Two Position 4 7/8" Knife Edge Base and Hard Case Test GA-NDTS-DPG-4/M-1-Test
$350.00
DPG-4M Digital Pit Gauge with Magnetic Two Position 4 7/8" V-Groove Base, Standard 2 3/8" Knife Edge Base, Two Position 4 7/8" Knife Edge Base and Hard Case GA-NDTS-DPG-4/M
$350.00
DPG-4M Digital Pit Gauge Certification GA-NDTS-DPG-4/M-CERT
$85.00
DPG-4M Digital Pit Gauge Recertification GA-NDTS-DPG-4/M-RECERT
$175.00
