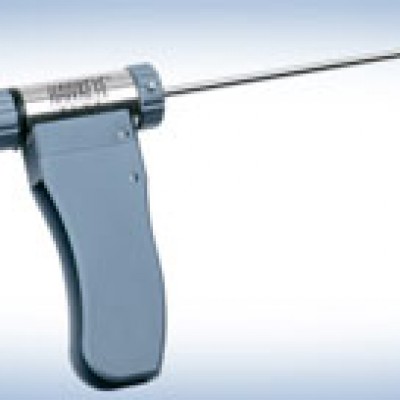

Hawkeye Blue Rigid Borescopes

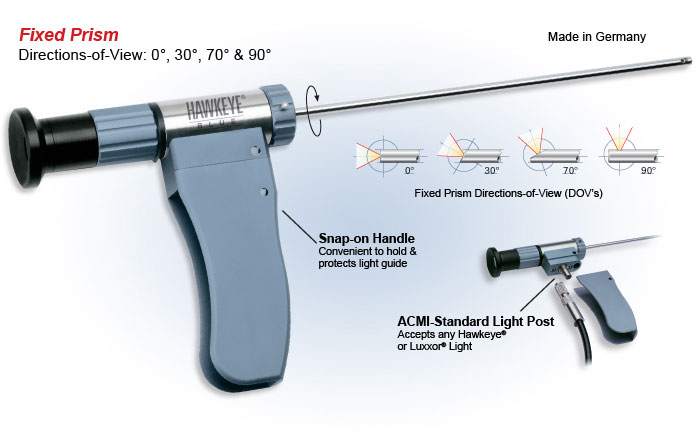

Hawkeye Blue Fixed Prism Borescopes offer directions-of-view of 0°, 30°, 70° and 90°. They have medium wide fields-of-view ranging from 55° to 100°.
Use a Hawkeye Blue Fixed Prism Borescope for particularly large, dark spaces. Illumination and imaging channels are independent on Hawkeye Blue Rigid Borescopes, increasing image clarity and contrast.
In comparison, when borescopes with mirror tubes are used to inspect large, dark areas, the illuminating light and the image can intermix, lowering clarity and contrast if the mirror is not clean.
| Outside Diameter | Length | DOV | FOV | Rotating Tube | Model # |
| 0.110" (2.8 mm) | 4.72" (120 mm) | 30° | 90° | Yes | HBR 028 122 090 |
| 0.110" (2.8 mm) | 7.28" (185 mm) | 90° | 55° | Yes | HBR 028 187 055 |
| 0.157" (4 mm) | 4.72" (120 mm) | 70° | 55° | Yes | HBR 040 125 055 |
| 0.157" (4 mm) | 9.65" (245 mm) | 30° | 55° | Yes | HBR 040 242 055 |
| 0.157" (4 mm) | 14.57" (370 mm) | 70° | 55° | Yes | HBR 040 375 055 |
| 0.157" (4 mm) | 6.89" (175 mm) | 90° | 55° | Yes | HBR 040 177 055 |
| 0.157" (4 mm) | 11.81" (300 mm) | 90° | 55° | Yes | HBR 040 307 055 |
| 0.157" (4 mm) | 16.73" (425 mm) | 90° | 55° | Yes | HBR 040 427 055 |
| 0.228" (5.8 mm) | 13.58" (345 mm) | 70° | 65° | Yes | HBR 058 355 065 |
| 0.228" (5.8 mm) | 8.07" (205 mm) | 90° | 65° | Yes | HBR 058 217 065 |
| 0.228" (5.8 mm) | 13.58" (345 mm) | 90° | 65° | Yes | HBR 058 357 065 |
| 0.228" (5.8 mm) | 19.09" (485 mm) | 90° | 65° | Yes | HBR 058 497 065 |
| 0.315" (8 mm) | 12.80" (325 mm) | 90° | 65° | Yes | HBR 080 327 065 |
| 0.315" (8 mm) | 32.91" (836 mm) | 0° | 100° | Yes | HBR 080 840 100 |
