Ultra-High Intensity UV-A Lamps

Previously a Spectroline / Spectronics Product


 Made in the USA

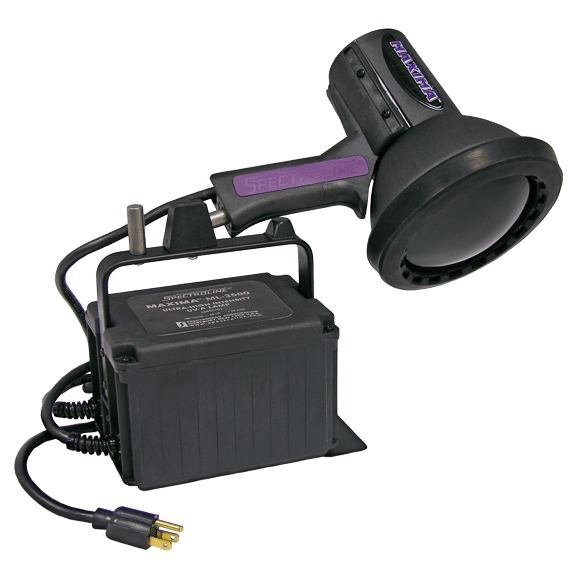

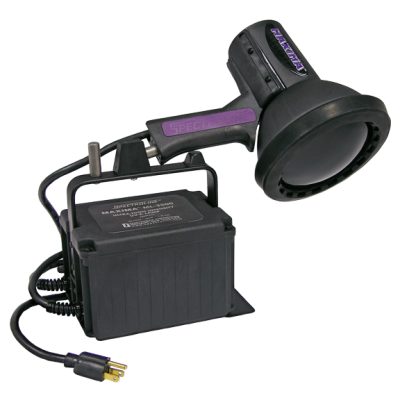

Ergonomic & Powerful

These super-powerful lamps make NDT inspections easier, safer and more reliable. They feature state-of-the-art micro discharge light (MDL) technology with a fatigue-free ergonomic design.

The Maxima series consists of three main models:

ML-3500S with a spot reflector, has a nominal steady-state UV-A intensity of 50,000 μW/cm2 at 15 inches (38 cm).

ML-3500FL with a flood reflector, has a nominal steady-state UV-A intensity of 5,700 μW/cm2 at 15 inches (38 cm).

ML-3500C with a spot reflector and a clear filter for curing, has nominal steady-state UV-A intensity of 90,000 μW/cm2 at 15 inches (38 cm).

Features

  • Deliver up to 10 times the UV-A output of conventional HID inspection lamps
  • Prefocused at the factory
  • Instant on/off/restrike
  • Lightweight, solid-state ballast
  • Integral bulb/reflector assembly
  • Stay-cool, impact-resistant and dent-proof housing
  • All bulbs feature a rated life of 2,000 hours
  • Comes standard with 8 foot (2.4 m) primary and secondary cords
  • Available in 120V, 230V, 240V and 100V versions

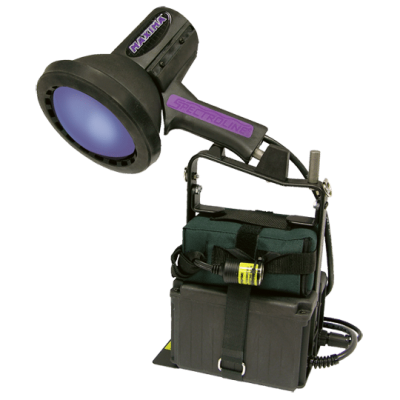

  • All lamps are available in battery-operated “M” versions. Each includes a 12-volt, 7 amp/hr rechargeable battery that will operate the lamp for a full two hours. A battery charger and carrying case are included

Standard Intensity Model

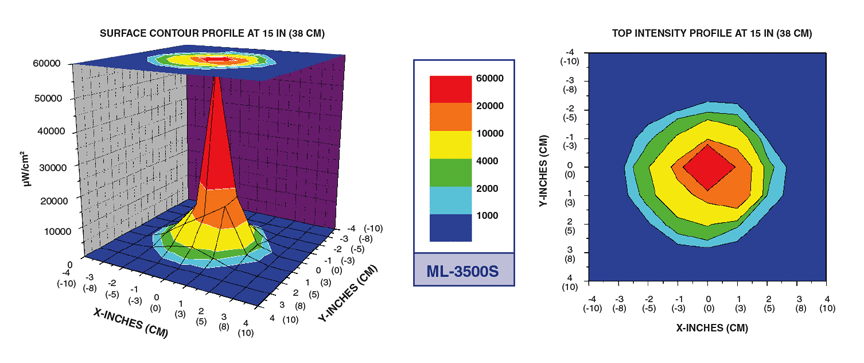

UV-A Irradiance Profile

Technical Specifications

Maxima Specifications

Spectro-UV Maxima Technical Specifications
Steady-State UV-A Intensity at 15"
ML-3500S 50,000 μW/cm2
ML-3500FL 4,500 μW/cm2
ML-3500C 90,000 μW/cm2 (for curing)
Weight

Total: 6.1 lbs (2.8 kg)

Lamp Head: 2.5 lb (1.1 kg)

Ballast: 3.6 lbs (1.6 kg)
Cord Length 8 ft (2.4 m) primary, 8 ft secondary
Ballast Type Solid State
Bulb Type Micro Discharge Light (MDL)
Average Rated Life of Bulb 2,000 hours

Product Literature

Description Part # Saved Price Select Option Add to

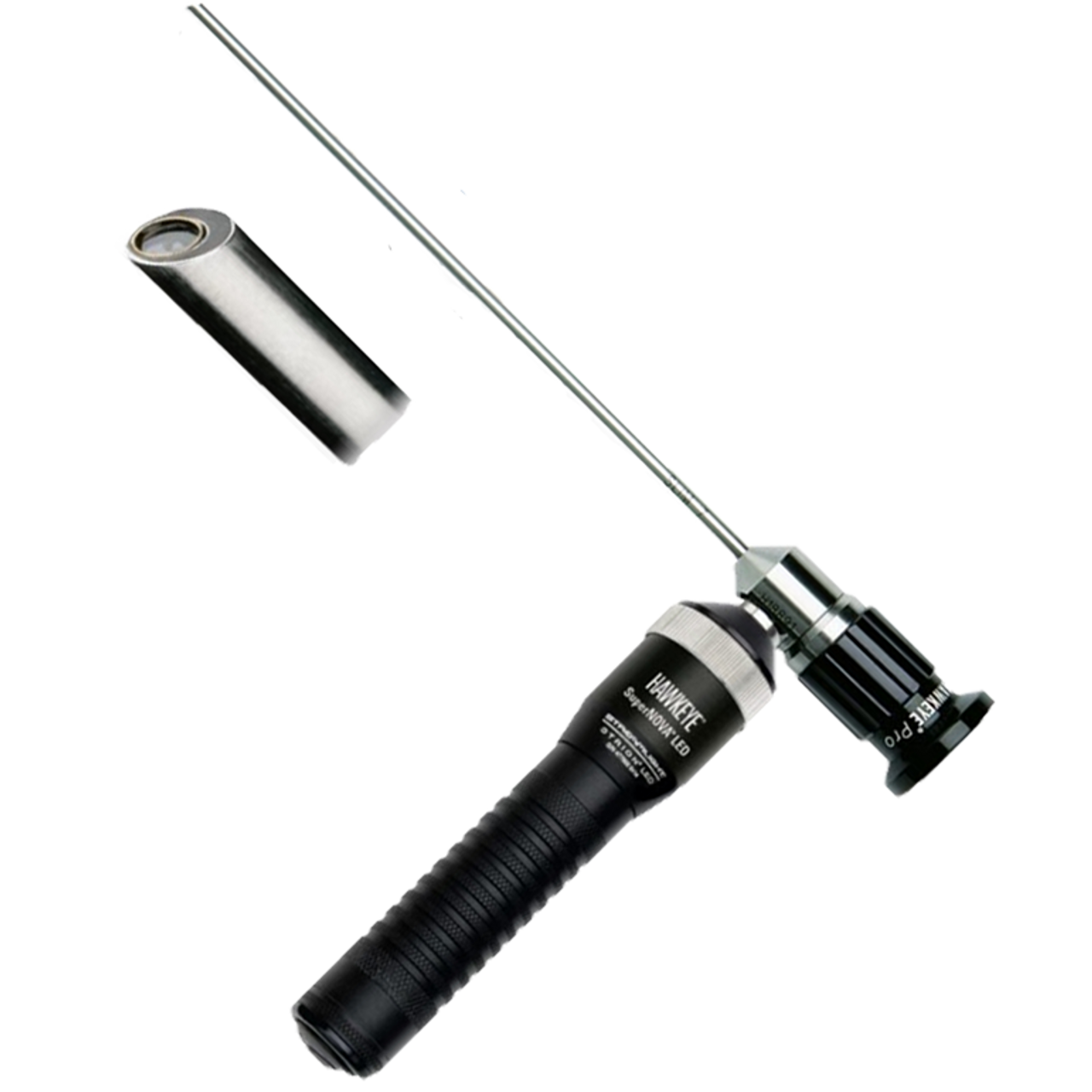

Hawkeye Gradient Pro Slim 30° Prism Kit, .165" (4.20mm) Diameter Includes: Pro Slim Prism Borescope, SuperNOVA LED Light & Charger, Carrying Case & Cleaning Kit (select length)
Model #
RV-HG-PS07-30-NVK-Master
$2,995.00
Hawkeye Gradient Pro Slim 70° Prism Kit, .165" (4.20mm) Diameter Includes: Pro Slim Prism Borescope, SuperNOVA LED Light & Charger, Carrying Case & Cleaning Kit (select length)
Model #
RV-HG-PS07-70-NVK-Master
$3,495.00
Hawkeye Gradient Pro Slim 30° Prism Borescope, .165" (4.20mm) Diameter (Borescope Only) (select length)
Model #
RV-HG-PS07-30-Master
$2,695.00
Hawkeye Gradient Pro Slim 70° Prism Borescope, .165" (4.20mm) Diameter (Borescope Only) (select length)
Model #
RV-HG-PS07-70-Master
$3,095.00
