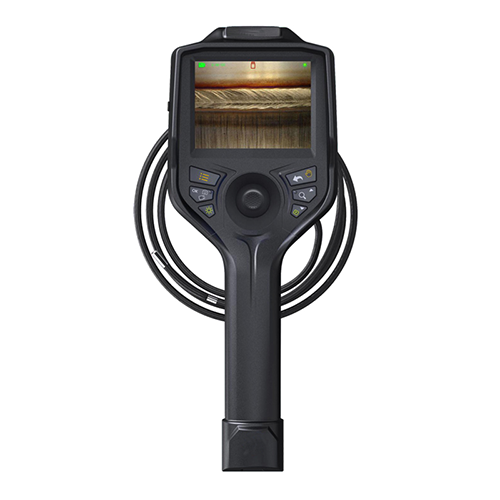

Sinowon VA-350 Series Videoscopes

Sinowon VA-350 Series Videoscopes

Compact 60 3-D

Solid State Systems

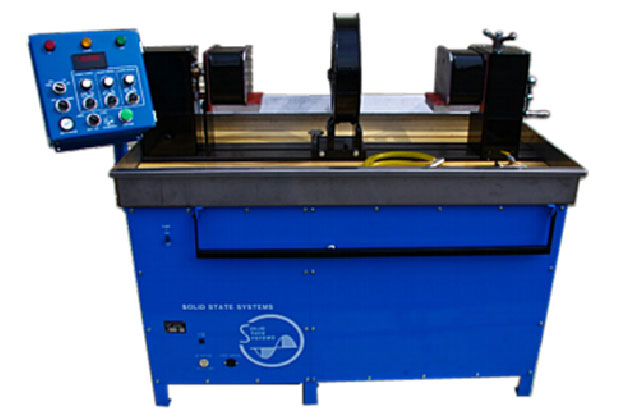

Compact 60 3-D

compact 60- 3-d

Multi-Directional Magnetic Particle Test Systems

designed to fit your parts and your budget

  • Compact size for small and medium size test pieces.
  • 5 foot overall length takes up minimum floor space.
  • Rapid switching of field direction permits detection of longitudinal and transverse cracks in one operation
  • 2-D Units for short parts (up to about 18")
  • 3-D Units for longer parts

solid state 3d+qqi

    Model

    S-5045FA

    S-5044FA

    Type

    3-D

    2-D

    Magnetizing Fields

    AC/HWDC/DC

    AC/HWDC/DC

    Magnetizing Amps

    4,000

    4,000

    Demagnetization

    AC/Rev. DC

    AC/Rev. DC

    Head Opening

    32"

    32"

    Standard Coil

    12"

    -

    Tailstock

    Crank

    Crank

    Overall Length

    60"

    60"

    Depth

    37"

    37"

    Input - phase

    3

    3

    Output - phase

    1

    1

    Input Voltage

    220/440

    220/440

    Frequency

    60 Hz

    60 Hz

    Line Amp Draw

    300/150

    300/150
