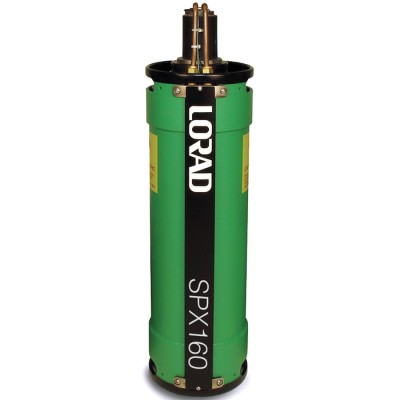

The SPX-160 replaces the LPX-160 model
Learn more about the Lorad SPX Portable X-Ray Systems:
| Input Line Requirements | Automatically adapts to input line voltage 200-250Vac, 50/60Hz, 10 Amperes maximum. May also be portable-generator powered |
| X-Ray Tube Window | Beryllium 0.8mm (directional) Nickel 0.6mm (panoramic) |
| Radiation Coverage | 40° directional or 360° panoramic tube available |
| Radiation Output | 14R/min at 50cm filtered with 0.5 inches (12.7mm) aluminum at 160kV, 5mA |
| Radiation Leakage | Less than 2.0 Roentgens per hour at 1 meter from the X-Ray tube target |
| Effective Focal Spot | Standard: 0.03 x 0.04 in. (0.7 x 1.0mm) EN12543, 0.02 in. sq. (0.5mm sq.) IEC60336 Panoramic: This tube has a flat target (0 degree) and therefore it is without dimension along the tube axis (other than panoramic tubes with conical targets). The true focal spot on the target can only be estimated by taking two focal spot film exposures in the main beam 90 degrees apart from each other. Due to this no focal spot is inferred. |
| Ambient Temp | 100% duty cycle @ 120°F (49°C) |
| Duty Cycle | 100% - liquid or air cooled |
| Storage Temp | -30°F to 160°F (-35°C to 71°C) |
| Anode Cooling | Liquid coolant solution closed loop between X-Ray tube anode and cooling unit, or fan forced air cooling. |
| Liquid Cooling Unit Weight | 54lbs. (15.4kg) approx. |
| Tube Head Weight | Liquid Cooled: 29lbs. (13.15kg) Air Cooled: 33lbs. (14.97kg) Panoramic: 29lbs. (13.15kg) |
| X-Ray Control Unit | Digital microcomputer based with local control, RS-232 and Ethernet |
| X-Ray Control Unit Weight | 26lbs. (11.8kg) approx. |
SPX-160 Model Selection Table
| Model Number | Description |

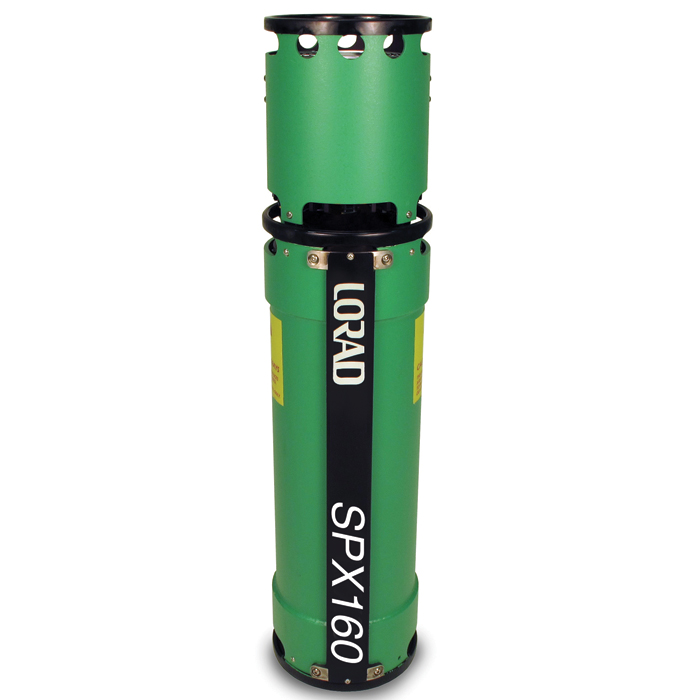

| SPX160ACDBG | Air Cooled, 40° Directional Beam, Glass insert |
| SPX160LCDBG | Liquid Cooled, 40° Directional Beam, Glass insert |

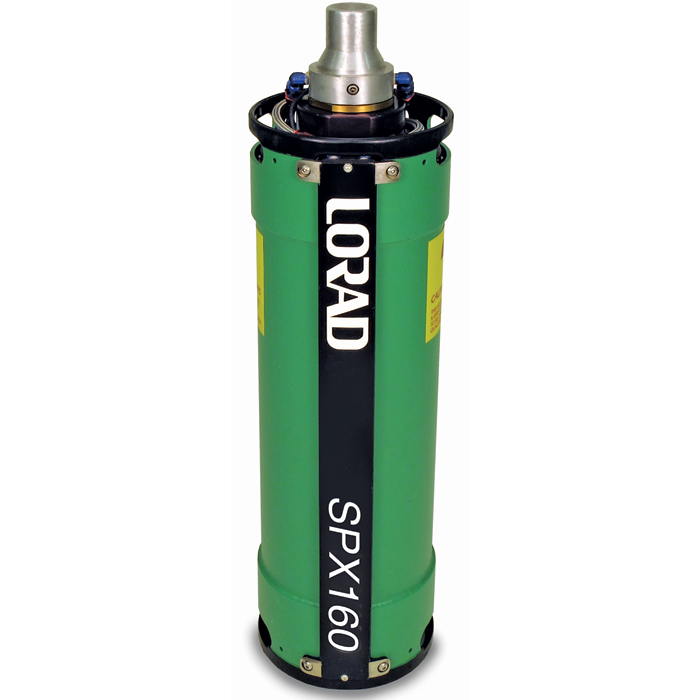

| SPX160LCPANG | Liquid Cooled, Panoramic Beam, Glass insert |
SPX Options Selection Table
| Model Number | Description |
| 3-000-0754 | SPX160/200 tubehead stand |
| 3-000-0792 | Laser pointer for liquid cooled tube |
| K935 | SPX160 Laser pointer for air cooled tube |
