Designed for Critical Applications, i.e Turbine Blade Inspection – 630,000 Cd/m2, Reads 4.8 Density Film, Corrosion Resistant, High Quality

Designed for Critical Applications

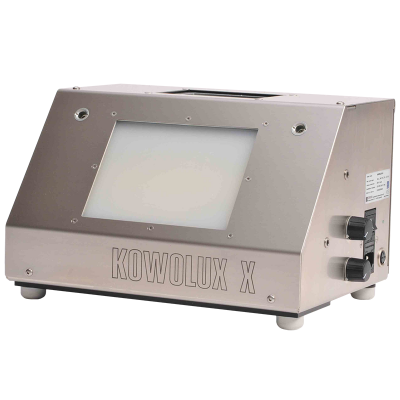

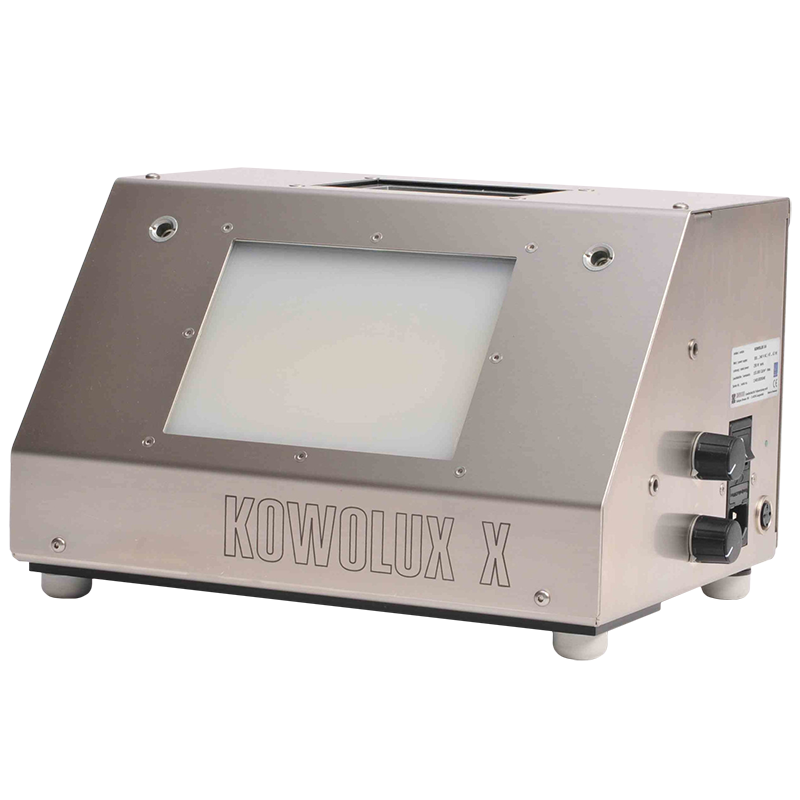

The Kowolux X5 is a high-end viewer specially designed for evaluation of X-ray films of turbine blades. With a luminance of 630,000 Cd/m2 and a 4.3" x 6" viewing screen, its also suitable for films of weld seams or castings with high optical density. Powerful LEDs and a variety of accessories makes this indestructible, German made film viewer easy to use with a range of films.

Key Differences:

  • Designed for Turbine Blade Images
  • High Density Films









Features

  • 4.3" x 6" Viewing Screen for a variety of films
  • 630,000 Cd/m2 - High Intensity, suitable for high density films
  • Corrosion resistant, strong and high quality stainless steel housing
  • Viewing screen is made of crystal glass with 95% translucency and an anti-reflective coating, which is thermally cured
  • Plug-in foot switch – plug screw-secured – operable without foot switch (with optional operation plug)
  • Two controls for brightness - 1%-100%
  • Efficient LEDs - Heat generation and power consumption is reduced by 80% compared to Halogen lamps and is more cost effective with a 40,000 hour lifespan
  • Higher contrast helps inspection personnel to find defects and discontinuities easily without vision fatigue and high luminance makes it possible to view very dark films without destroying them
  • Cooling fan with temperature dependent speed control - low noise level
  • Changeable filter in the cooling air in-let

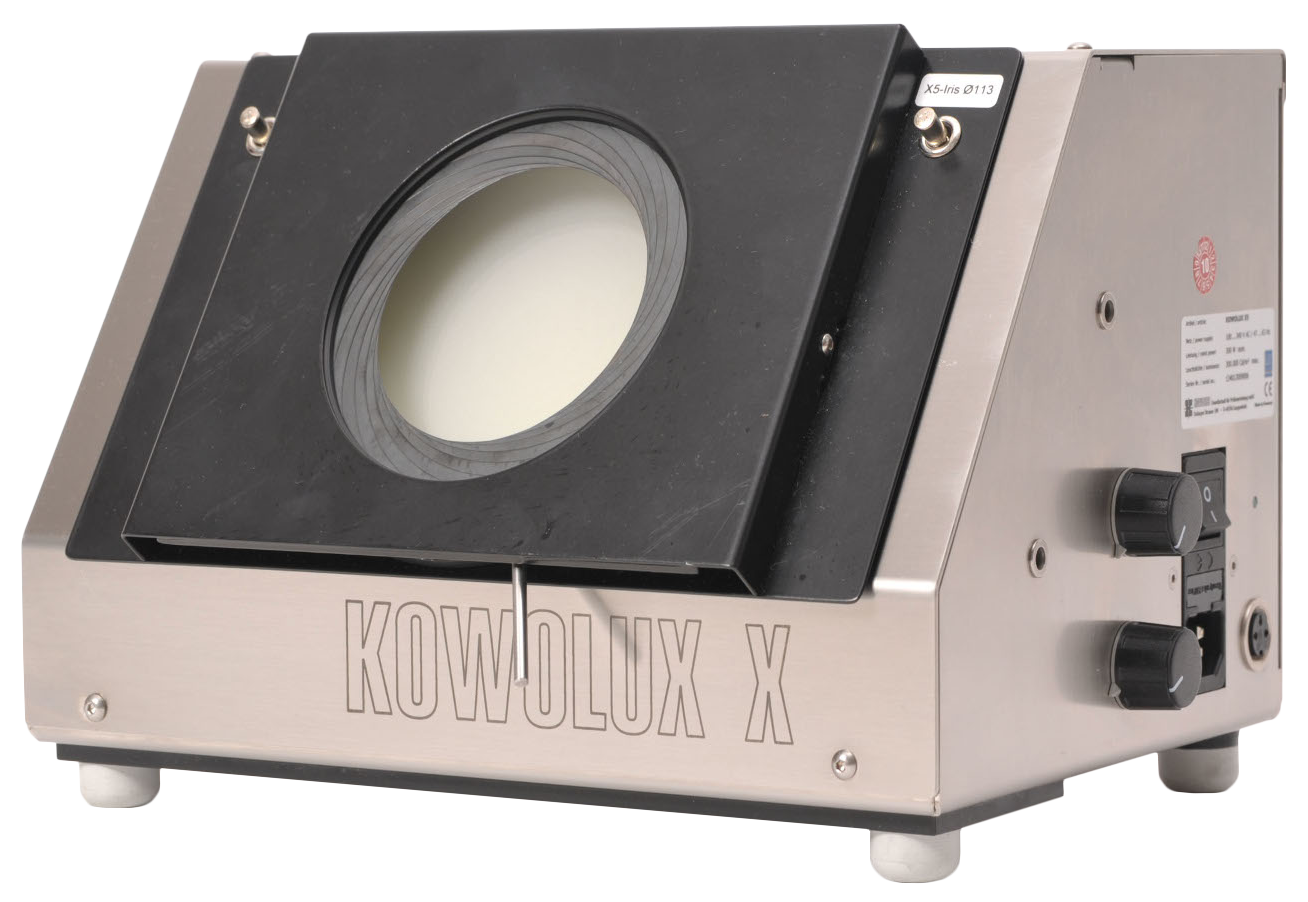

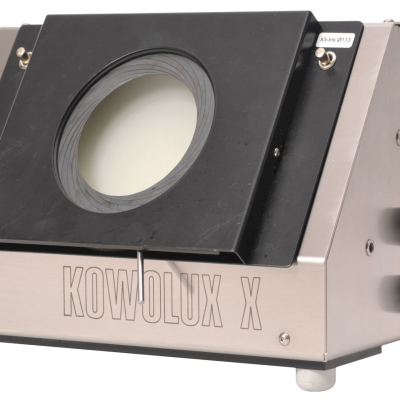

  • Interchangeable masks for different film sizes
  • Mounting threads in side panels – for mounting loading device for roll films or a densitometer holder
  • Mounting threads in bottom panel – for safe fixing of the viewer on a desk in mobile laboratories

Kowolux X Model Comparison Chart

Model Viewing Screen Luminance Film Density Main Use Special Features
X3 3.2" x 17.8"

320,000 Cd/m2

Eco: 200,000 Cd/m2

4.5 D
Eco: 4.3 D
Weld Seam Images Durable, Perfect for Long Films, Many Attachments
X4 3.2" x 8.9"

320,000 Cd/m2

Eco: 200,000 Cd/m2

4.5 D
Eco: 4.3 D
Weld Seam Images Durable, Many Attachments
X5 4.3" x 6" 630,000 Cd/m2 4.8 D Turbine Blade Images, High Densities Durable, Many Attachments
X6 10.6" x 15”

200,000 Cd/m2

Eco: 130,000 Cd/m2

4.3 D
Eco: 4.1 D
Large Format Images Durable, Many Attachments
X7 Ø 4 - 75mm (0.16" - 3") - Iris 1,100,000 Cd/m2 5.0 D Universal, Highest Densities Built in Iris, Ultra-High Intensity, Durable
X 14x17" 14" x 17" 160,000 Cd/m2 4.2 D Large Format Images True 14" x 17" Viewing Window, Durable
LX40 17" x 17" 80,000 Cd/m2 3.9 D Large Format Images Built in Horizontal and Vertical Shutters, Durable
LX60 17" x 23" 80,000 Cd/m2 3.9 D Large Format Images Built in Horizontal and Vertical Shutters, Durable
M1 3.2" x 9" 150,000 Cd/m2 4.15 D Weld Seam Images Dust Proof & Moisture Resistant, Durable
M2 3.2" x 18" 150,000 Cd/m2 4.15 D Weld Seam Images Dust Proof & Moisture Resistant, Durable

Technical Specifications

Kowolux X5 Specifications

Luminance Max 630,000 Cd/m2
Film Density Max 4.8 D
Power Supply 88-264 VAC / 47-63 Hz
Viewing Screen 6" x 4.3" (150 x 110 mm)
Rated Power 300 W
Dimensions (WxDxH) 12.2" x 9.6" x 8.6" (305 x 220 x 205 mm)
Weight 15.8 lbs. (7.2 kg.)
Color Temperature 5000 K - White
Lamp Life 40,000 hours

Optional Accessories

Optional Accessories for Kowolux X5



Accessory Item X5
Universal Densitometer Holder RT-KT-13-40087
Kowospool Spooling Device for Roll Films RT-KT-13-40088
Spare Air Filter, 2 pack RT-KT-13-40109
Masks
13x18 cm RT-KT-13-40131
3.9"x9.4", 10x24 cm RT-KT-13-40132
2.4"x9.4", 6x24 cm RT-KT-13-40133
1.2", 30 mm dia. hole, magnetic stop RT-KT-13-40138

Scope of Supply

  • Standard Attachment Mask
  • Power Cord
  • Foot Switch
  • Test Certificate according to ASTM E 1390, ISO 5580 & DIN EN 25580
  • Certificate of Conformance according to ISO/IEC 17050-1

Optional Accessories are Available Upon Request.

Click Here for More Information

Description Part # Saved Price Select Option Add to

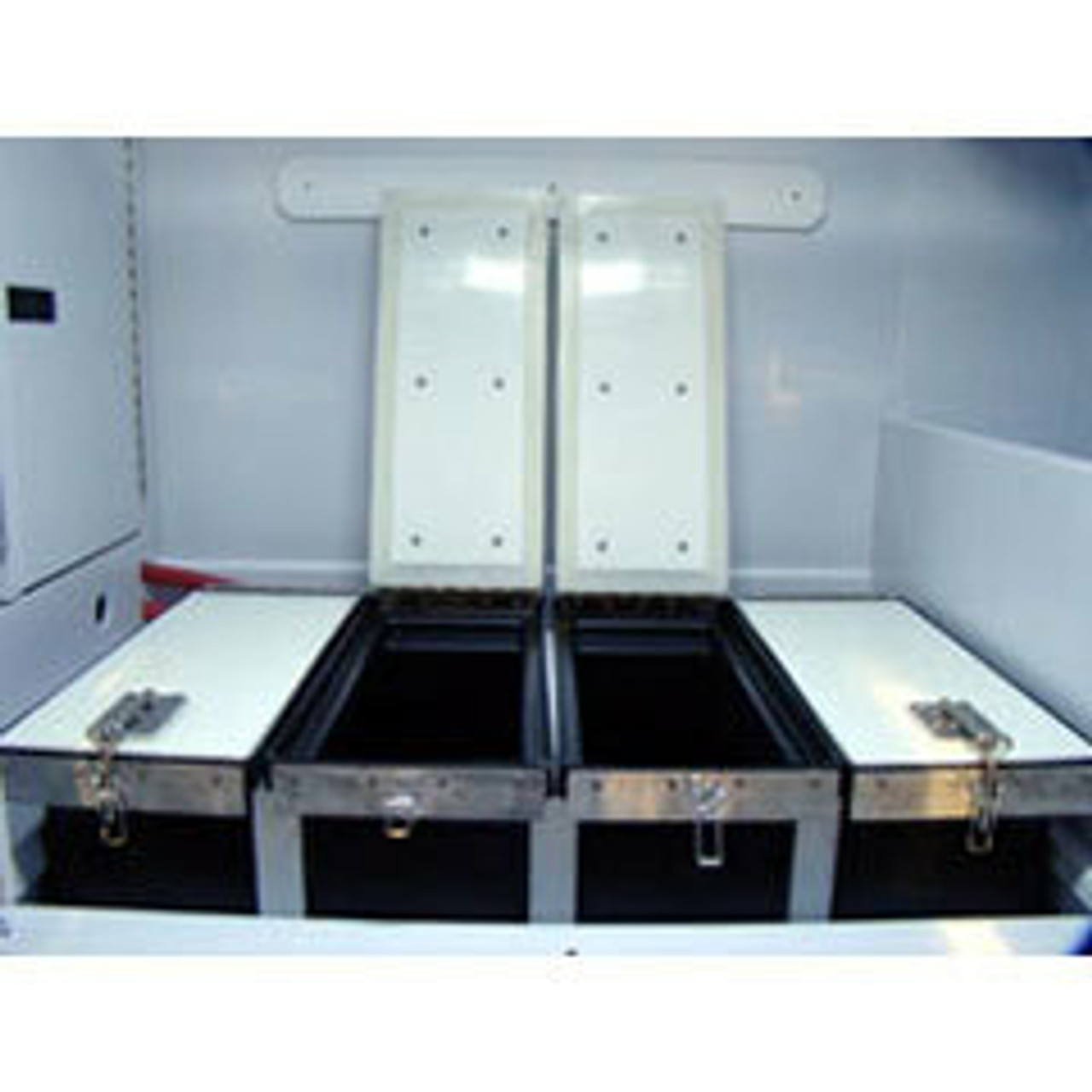

7.5 Gallons (28.39 liter) X-Ray Film Processing Tank RT-SM-DT-07.5 Request Pricing
10 Gallon (37.85 liter) X-Ray Film Processing Tank RT-SM-DT-10 Request Pricing
