For thickness and linearity calibration of thin materials

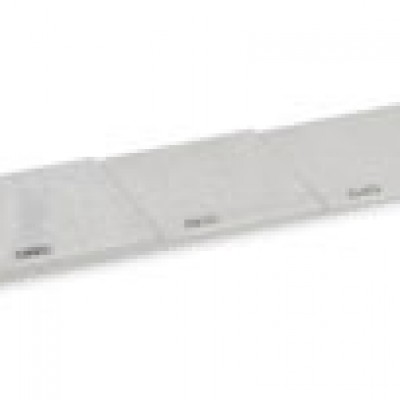

PH Tool Magna Thin 5 Step Calibration Block

Special 5-step block for thickness and linearity calibration of thin materials.

Inch Version:

The Magna Thin Step Calibration Block has steps at 0.020", 0.040", 0.060", 0.080" and 0.100".

Metric Version:

The Metric Magna Thin Step Block has steps at 0.50, 1.00, 1.50, 2.00 and 2.50 mm.

Step Face - Inch Version: 3/4" x 3/4"
Step Face - Metric Version - 20mm x 20mm

Standard Materials:

  • 1018 Carbon Steel
  • 304 Stainless Steel
  • 7075-T6 Aluminum

Special Alloys (Call for Price):

    • 4340 Steel
    • Titanium
    • 316 Stainless Steel
    • 2024-T3 Aluminum
    • 6061-T6 Aluminum
    • 90/10 Copper Nickel
    • Hastelloy C276
    • Monel 400
    • Hastelloy X
    • 1018 Steel, Nickel Plated
    • A387 Grade 11
    • A387 Grade 22
    • A387 Grade 91
    • A516 Grade 70
    • 321 Stainless Steel
    • AL6XN
    • 2101 Duplex Stainless Steel
    • 2205 Duplex Stainless Steel
    • 6AL-4V Aluminum
    • 7050-T7451 Aluminum
    • Brass
    • Brass Alloy 932
    • Copper 110
    • Cast Ductile Iron
    • Cast Gray Iron
    • Zirconium
    • Inconel 600
    • Inconel 625

    Certification Notes:

    • Material certification is included with all blocks.
    • Serialization and Dimensional certification are available at additional cost.

    Don't see what you're looking for? Please contact us.

    Optional Hardwood Case is available.

    Description Part # Saved Price Select Option Add to
    Balteau LLX200-DA-0 Portable X-ray Generator RT-BT-LLX200-DA-0
    		Request Pricing
    Balteau LLX200-DA-1 Portable X-ray Generator RT-BT-LLX200-DA-1
    		Request Pricing
