Dry Method Non-Florescent Magnetic Particles in #1 Gray, #2 Yellow and #8A Red

Overview

Magnaflux Magnavis Dry Method Non-Fluorescent Magnetic Powders produce clear sharp indications across a variety surfaces and background colors. Ready to use, free flowing and general purpose magnetic powders, designed to produce superior indications of surface and slightly subsurface discontinuities in ferrous materials. Used to identify indications in welds, large forgings and castings. It can be used in a powder blower or shaken from a bottle during magnetization, and blown off while current is still being applied. On material with a high magnetic retentivity, indications can still be formed after the current has been turned off.

Available in #1 Gray, #2 Yellow and #8A Red and in a 10 lb. pail, 45 lb. pail or 500 lb. drum.

Benefits

  • Sharp, color-contrast indications on high reflective surfaces
  • Ready-to-use
  • Good particle buildup for quick detection
  • Highly refined for optimal particle shape and size combination
  • Minimal dust build-up
  • Does not require a black light or darkened inspection area

Specifications Compliance

  • ASME BPVC, Sec. V
  • ASTM E 709
  • ASTM E1444
  • NAVSEA 250-1500-1
  • NAVSEA T9074-AS-GIB-010/271
  • MIL-STD-2132
  • MIL-STD-271
  • AMS-3040
  • ISO 9934 (#8A Red only)

Particle Colors

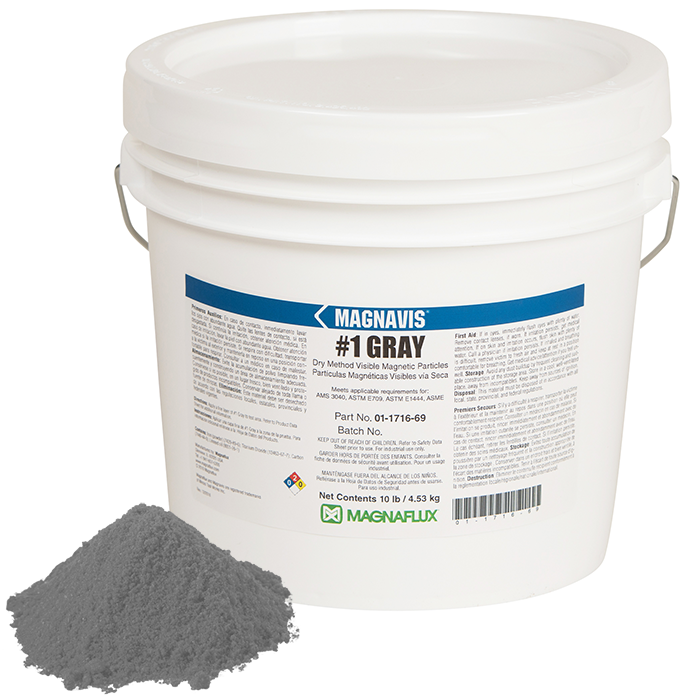

#1 Gray Powder

Pale white-gray particles provide strong contrast on most metal surfaces, including high reflective surfaces during dry method mag particle testing.

  • 10 lb. Pail P.N: 01-1716-69
  • 45 lb. Pail P.N: 01-1716-87
  • 500 lb. Drum P.N: 01-1716-98

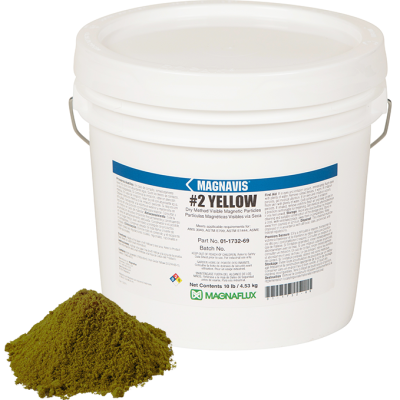

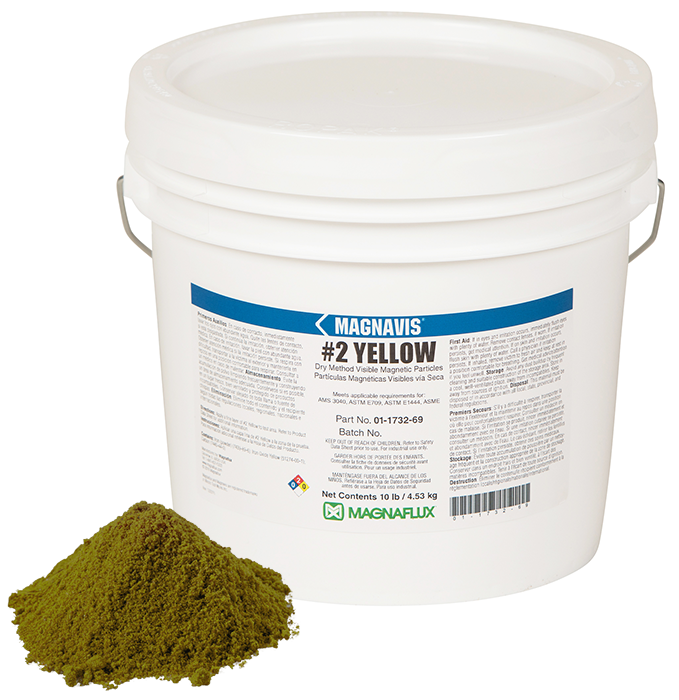

#2 Yellow Powder

Pale yellow particles provide strong contrast on light, medium and dark colored metal surfaces during dry magnetic particle testing.

  • 10 lb. Pail P.N: 01-1732-69
  • 45 lb. Pail P.N: 01-1732-87
  • 500 lb. Drum P.N: 01-1732-98

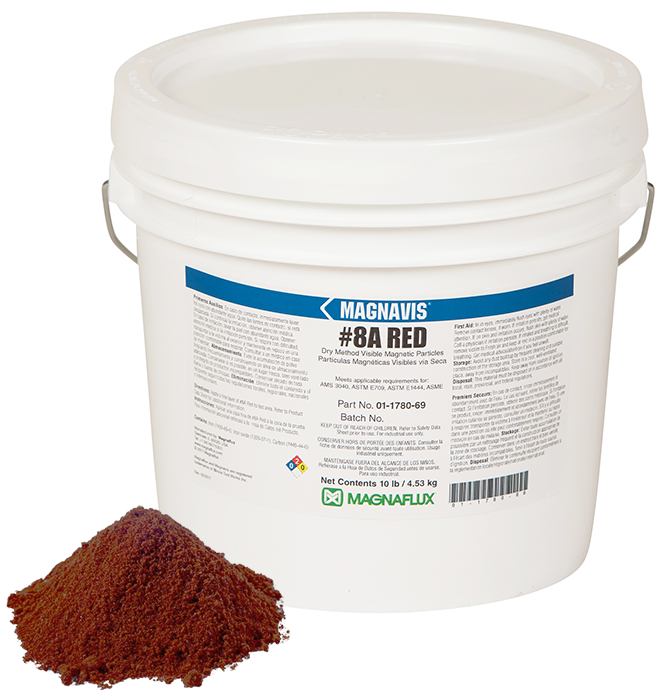

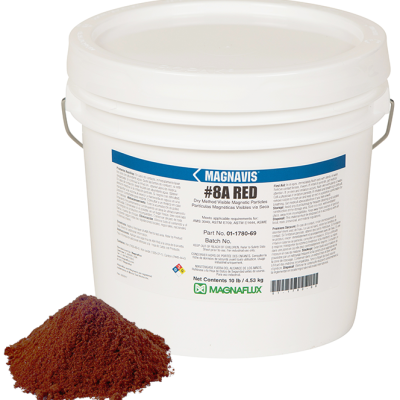

#8A Red Powder

Rust red particles provide strong contrast on most metal surfaces during dry magnetic particle testing.

  • 10 lb. Pail P.N: 01-1780-69
  • 45 lb. Pail P.N: 01-1780-87
  • 500 lb. Drum P.N: 01-1780-98

Product Literature

Description Part # Saved Price Select Option Add to
Balteau LLX225-DA-0 Portable X-ray Generator RT-BT-LLX225-DA-0
Request Pricing
Balteau LLX225-DA-1 Portable X-ray Generator RT-BT-LLX225-DA-1
Request Pricing
