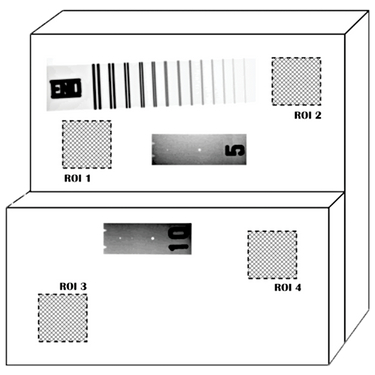

Duplex Plate Phantom per E2737

Duplex Plate Phantom per E2737

Lost Cost, Delivering High Quality and Portability

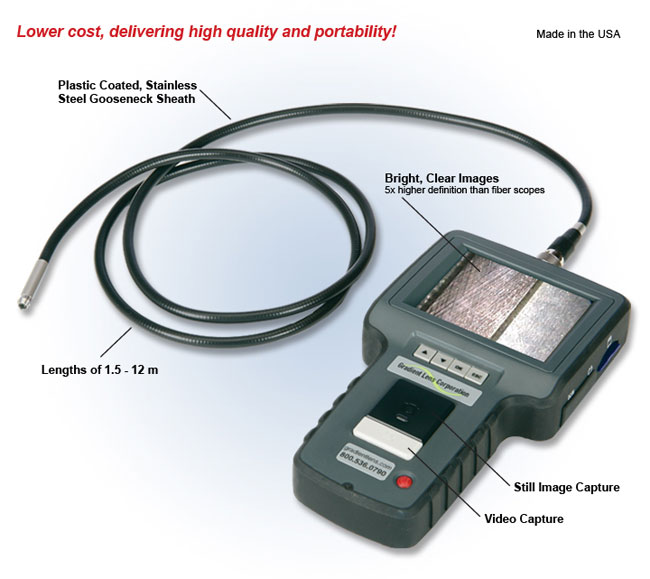

Hawkeye Classic Flex Video Borescope

Overview:

Hawkeye Classic Flexible Video Borescopes are the perfect choice when portability and easy image capture are key factors. These high quality affordably priced video borescopes are much more durable than fiber optic borescopes, lower cost and completely portable. Hawkeye Flexible Video Borescopes come complete with video monitor, LED light source and image capture cability, all in one easy to use device.

Classic models are 8 mm in diameter, non-articulating and come with stainless steel gooseneck sheathing. Hawkeye Flexible Video Borescopes are available in standard lengths of 1.5, 3.0, 6.0 and 12.0 meters. Custom length scopes are available by special order.

hawkeye-classic-flex-video-borescope

Hawkeye Classic Flex Video Borescope

Outside Diameter Length Articulation Sheath Model #
8 mm 1.5 m (4'11") None Gooseneck CVS-080-1500
8 mm 3.0 m(9'10") None Gooseneck CVS-080-3000
8 mm New Length 6.0 m (19'8") None Gooseneck CVS-080-6000
8 mm New Length 12.0 m (39'4") None Gooseneck CVS-080-12000


Note: Per Hawkeye, there is a $10 drop ship fee on all items.


Specifications

Diameter 8.0 mm
Lengths 1.5, 3.0, 6.0 and 12.0 meters
Articulation None
Direction-of-View 0° or use 90° Tip
Field-of-View 50°
Sheath Stainless Steel Gooseneck covered with PVC
Illumination Micro LED with intensity adjustments
Display 3.5" TFT LCD
Interfaces Mini USB 1.1 and AV / out
Power DC 5V
Battery 2.5 hour run time, Rechargeable Lithium
Recording Media SD Card (up to 2GB)
Digital Photo Format JPEG (640 X 480)
Video Format ASF (320 X 240), Playback with Windows Media Player

Product Literature

Description Part # Saved Price Select Option Add to
Type 1 Duplex Plate Phantom (Specify Material and Thicknesses) RT-KT-DPP-Custom
Request Pricing
Kowotest Duplex IQI, D-13 (11 00155) RT-KT-DUPLEX-D13
$1,450.00
Type 2 Duplex Plate Phantom, Standard, Heavy Metal, Stainless Steel. Base: 400 x 300mm (15.75 x 11.81"), 5mm (.20”) T. Top: 100 x 80mm (3.94 x 3.15”), 15mm (.59”) T. Plaque Type IQIs Permanently Fixed to Plates (.25" & .81") *Duplex IQI not included RT-KT-11-00177
$2,850.00
Type 2 Duplex Plate Phantom, Standard. Light Metal, Aluminum. Base: 400 x 300mm (15.75 x 11.81"), 12mm (0.47”) T. Top: 100 x 80mm (3.94 x 3.15”), 38mm (1.5”) T. Plaque Type IQIs Permanently Fixed to Plates (0.50" & 2.0") *Duplex IQI not included RT-KT-11-00178
$2,975.00
Type 2 Duplex Plate Phantom, Standard, Light Metal Titanium (grade 5). Base: 400x300mm (15.75"x11.81") 12mm (0.47")T. Top: 100x80mm (3.94"x3.15") 38mm (1.5")T. Plaque Type IQIs Permanently Fixed to Plate (0.50"&2.0") *Duplex IQI not included. RT-KT-11-00178T00
$4,650.00
Holder for Duplex Plate Phantom HM and LM, Stainless Steel RT-KT-11-00179
$1,350.00
