Small Diameter, Clear & Bright

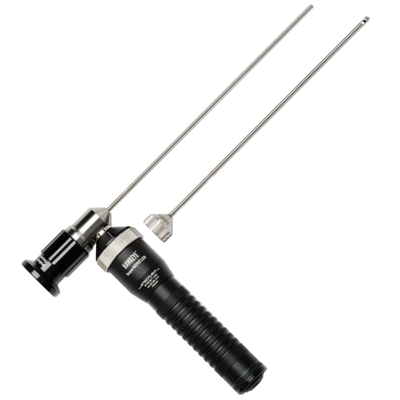

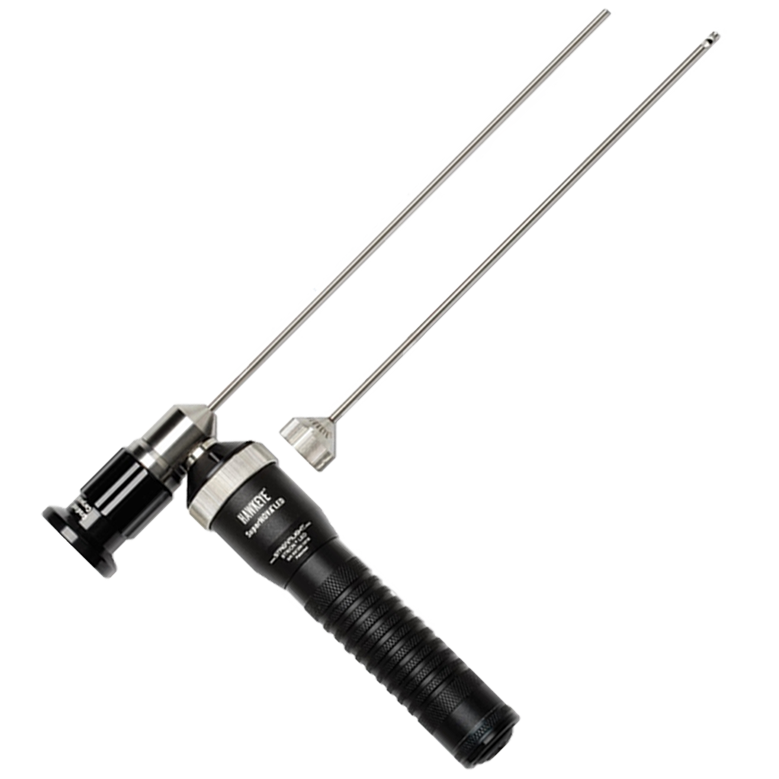

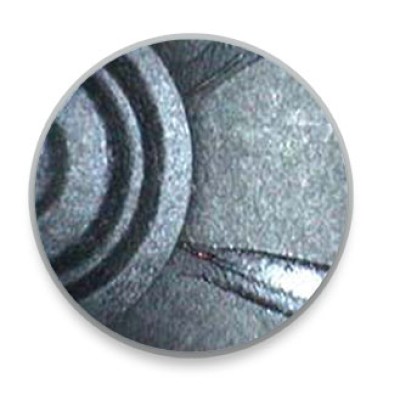

At .098" (2.40mm) in diameter, or .109" (2.77mm) with a mirror tube, the Hawkeye® Pro SuperSlim Borescopes give sharp, clear views of the microscopic holes in spray tips and nozzles. Use them to inspect small bores for burrs, surface finish irregularities, and more.

*The 10, 14 & 17 models measure .110" (2.80mm) in diameter, or .128" (3.25mm) with mirror tube.

Hawkeye Pro Rigid Borescopes Contain:

  • EndoGRINs image relay lenses
  • Multicoated objective lens
  • LightConcentrator light post
  • Independent focusing ring for convenient video and still photography
  • Super Bright SuperNOVA Light with rechargeable batteries







Technical Specifications

Pro SuperSlim Specifications

Optics
Field-of-View: 42°
Direction-of-View: 0°
Relay Optics: e2 endoGRINs Glass Relay Lenses
Magnification: Borescopes don't have fixed magnification like microscopes.
Mechanical / Construction
Length: 4" (102mm), 8" (203mm), 10" (254mm), 14" (356mm), 17" (432mm)
Diameter: 4" and 8" Scopes: .098" (2.40mm), 10", 14" & 17" Scopes: .110" (2.80mm). 4" and 8" Scopes w/ Mirror Tube: .109" (2.80mm), 10", 14" & 17" Scopes w/ Mirror Tube: .128" (3.30mm).
Lightpost: LightConcentrator ACMI configuration, Diameter 0.300" (7.62mm)
Eyecup: Standard DIN, 1.26" (32mm) diameter with independent focusing ring
Materials
Tube: 304 Stainless Steel
All Machined Stainless Steel: 303 Stainless Steel
Eyecup and Focusing Ring: Aluminum, black anodized
Front Window: AR coated optical Glass
Illumination Fiber: Optical Glass
Relay Optics: e2 endoGRINs gradient index glass lenses
Environmental
Temperature Range: Official -4° to 248°F (-20° to 120°C)
Pressure: All Hawkeye borescopes we designed only for use at ambient pressure, however, we have several customers who have successfully used Hawkeye Borescopes at pressures up to 500 PSI and down to 10-6 Torr. As the scopes were not specifically designed for this, the operator does so at his own risk.
Chemical Resistance: All Hawkeye Pro Rigid borescopes (tube only, not the eyepiece end) are water tight and are resistant to most hydrocarbons; oils, gasoline, hydraulic fluid, jet fuel, etc. Exposure to Acids and strong Alkali should be avoided as it will attack the optical window.
Note: Hawkeye Pro Rigid Borescopes can be made to operate up to 572°F (300°C). These scope were not designed to operate below 0°. However, several of our customers have successfully used the scopes in liquid Nitrogen at 77° K.

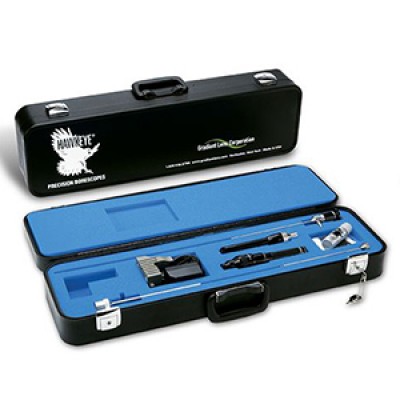

Hawkeye Pro SuperSlim Kit Includes:

  • Pro SuperSlim Precision Borescope
  • Mirror Tube
  • Shipping Sheath
  • SuperNOVA LED Light and Charger
  • Carrying Case
  • Cleaning Kit

Product Literature

Description Part # Saved Price Select Option Add to
Individual IQI, ASTM-E-1025, Material 1 (Specify size range)
Model #
RT-RC-P-ASTM-E-1025-1-A-Master
$14.00
Individual IQI, ASTM-E-1025, Material 3 (Specify size range)
Model #
RT-RC-P-ASTM-E-1025-3-A-Master
$60.00
Individual IQI, Serialize RT-RC-P-SERIALIZE
$1.00
Individual IQI, Serialize and Calibrate RT-RC-P-SERIALIZE-CAL
$9.00
Individual IQI, Encapsulate RT-RC-P-ENCAPSULATE
$4.00
IQI Case RT-RC-P-CASE
$113.00
Larger IQI Case for Encapsulated IQIs RT-RC-P-CASE-EN
$177.00
