Previously a Spectroline / Spectronics Product

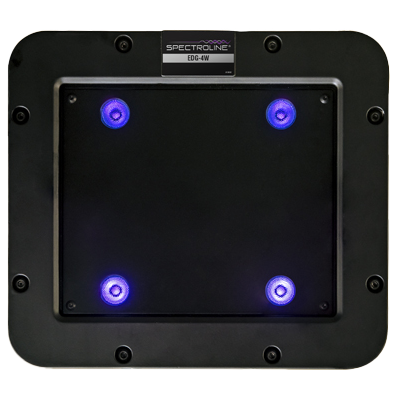

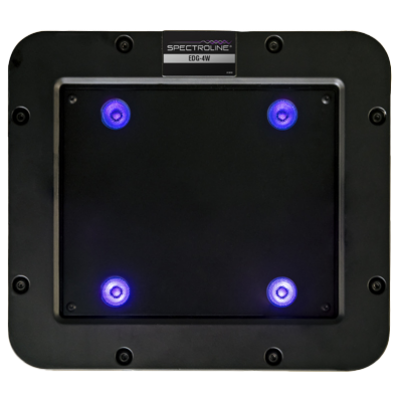

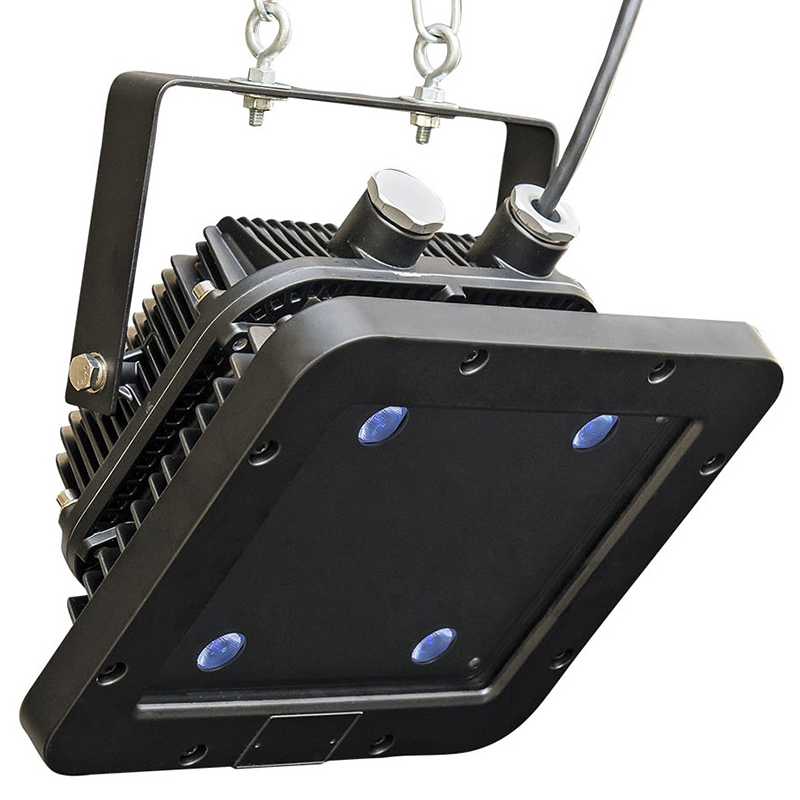

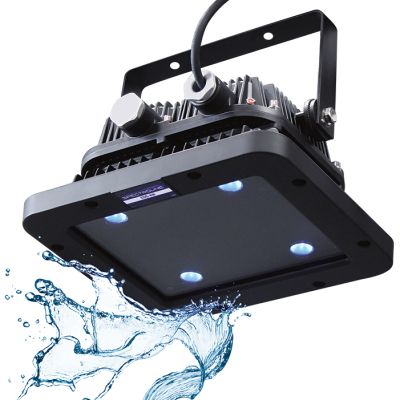

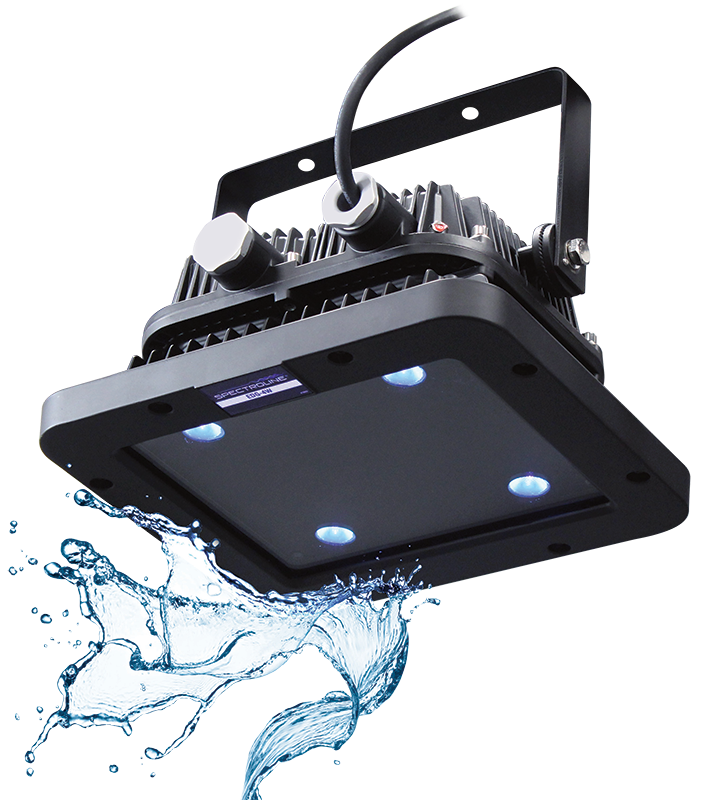

Water Proof & DurableThe Edge 4 is a flood lamp engineered specifically for wash stations. It provides a very wide area of coverage without a high intensity. The IP65-rated housing allows the lamp to work in wet and dirty environments while heat sinks keep the lamp cool without the need for a fan, so no dust or water can enter. Four UV-A LEDs provide a wide, uniform beam that is highly consistent and reliable.
| Spectro-UV EDGE 4 Technical Specifications | |
| Nominal Steady-State Intensity at 48" (122 cm) | 1,400 μW/cm2 |
| UV-A Coverage Area at 48" (122 cm) at minimum 200 μW/cm2 | 22 x 22" (56 x 56 cm) |
| Nominal Steady-State Intensity at 72" (183 cm) | 670 μW/cm2 |
| UV-A Coverage Area at 72" (183 cm) at minimum 200 μW/cm2 | 24 x 24" (61 x 61 cm) |
| Nominal Steady-State Intensity at 96" (244 cm) | 380 μW/cm2 |
| UV-A Coverage Area at 96" (244 cm) at minimum 200 μW/cm2 | 25 x 25" (63.5 x 63.5 cm) |
| LED Filter | Protective clear filter |
| General Specifications | |
| Light Source | 4 UV-A LEDs |
| Lamp Style | Panel Flood Lamp |
| Dimensions (LxWxH) | 11 x 14 x 9" (28 x 36 x 23 cm) |
| Weight | 14 lbs (6.4 kg) |
| Power Requirements | AC Power (main AC power cord supplied with the unit) |
| Cooling System | Fanless |
Meets:
