Reconditioned precision thickness guage

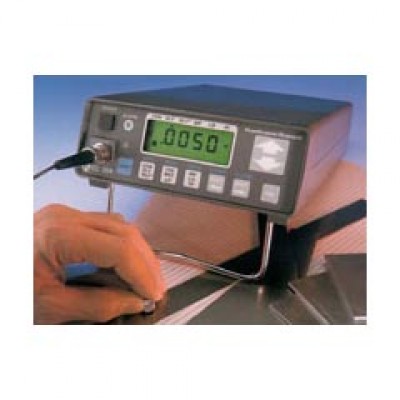

CL304 Desk-Top/Portable Precision Ultrasonic Thickness Gauge

Reconditioned - Good condition

CL304 Features Include:

Compatible with 5 standard contact and delay transducers
Easy-to-read back lite display
Auto-ranging thickness resolution
Display thickness and velocity in inches or metric
Powered by AC or 4 Standard "D" Cell Alkaline/NiCAD Batteries
Storage of 7 Special Menu Setups
RF Output and System Timing Connectors
Time of flight measurement
Differential measuring mode
HIGH/LOW tolerance limits with alarms
Selectable thickness resolution

The CL304 precision ultrasonic thickness gauge operates from battery or AC power for portable or bench top use. It offers fast, accurate thickness measurements without cutting, disassembling or destroying your parts. Test most metals, plastics, glass and ceramic materials while shortening inspection time and reducing cost.

The CL304 offers several advanced features such as the special menu setups. Special menus allow the use of non-standard transducers (e.g., bubbler or immersion), that require customized settings to optimize instrument performance. From the instruments keypad, the operator can adjust 12 parameters including gain, various delays, PRF and signal phase. An oscilloscope can be connected to the instrument's rear panel RF connector and system timing connector, to assist in setup and to verify the accuracy of the measurement.

Base Instrument Package:

CL304 Digital Ultrasonic Thickness Gauge
Four 1.2 V "D" Cell NiCAD batteries
Battery Charger/Eliminator
XL Couplant, 8 oz.
Operating Manual
Calibration certificate

Price includes a 15 MHz Delay Line Transducer* and Cable, other transducers and accessories are sold separately.

Three month warranty

* Britek 15 MHz 1/4" BRDR (similar to Alpha2 DFR)
